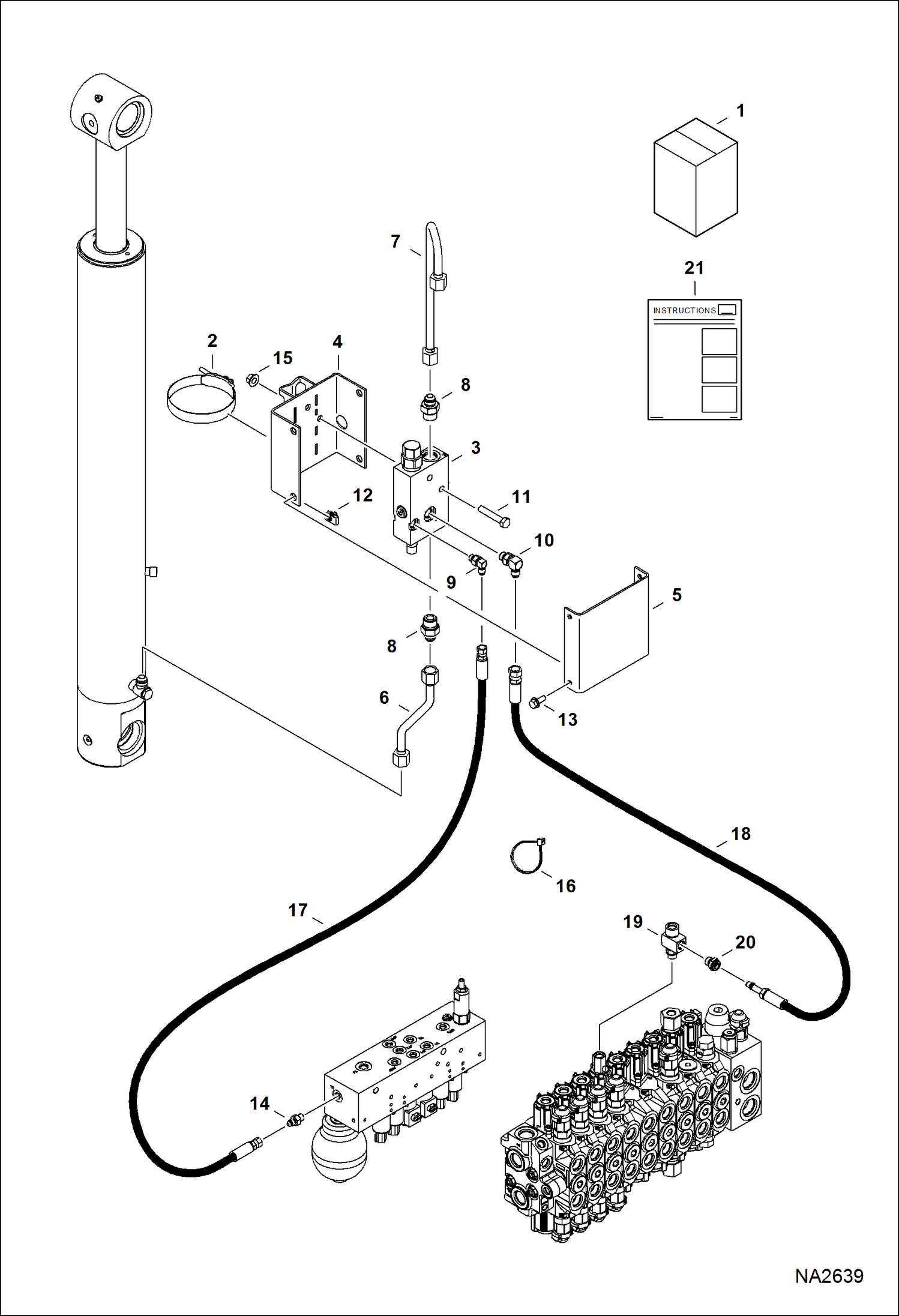

Запчасти Bobcat E42 LOAD HOLD KIT (Boom) ACCESSORIES & OPTIONS

1

7199464

KIT, LOAD HOLD BOOM Ref. 2-21

2

7011956

CLAMP, T-BOLT

3

7013140

VALVE, LOCK LOAD See Illustration LOAD HOLD/ NA2640

4

7186094

BRACKET

5

7186097

BRACKET

6

7186448

TUBELINE, HYD

7

7186449

TUBELINE, HYD

8

15KB0810

FITTING, HYD CONNECTOR

8

79K10

O RING 10

9

17KB0404

FTG HYD ELBOW 90

9

79K4

O RING 10

10

17KB0606

FITTING

10

79K6

O RING 10

11

1CM1055

BOLT

12

6676169

NUT

13

29CM820

SCREW

14

15KB0404

FTG HYD S Connector

14

79K4

O RING 10

15

51DM10

NUT

16

6624289

STRAP, TIE

17

7179693

HOSE, HYD

18

7179694

HOSE, HYD

19

7185275

FITTING, HYD TEE

19

79K6

O RING 10

20

10L0606

FITTING, HYD CONNECTOR

20

78K6

O'RING

20

7011053

CLIP

21

6990073

INSTRUCTIONS
