Запчасти Bobcat E42 LOAD HOLD KIT (Arm) ACCESSORIES & OPTIONS

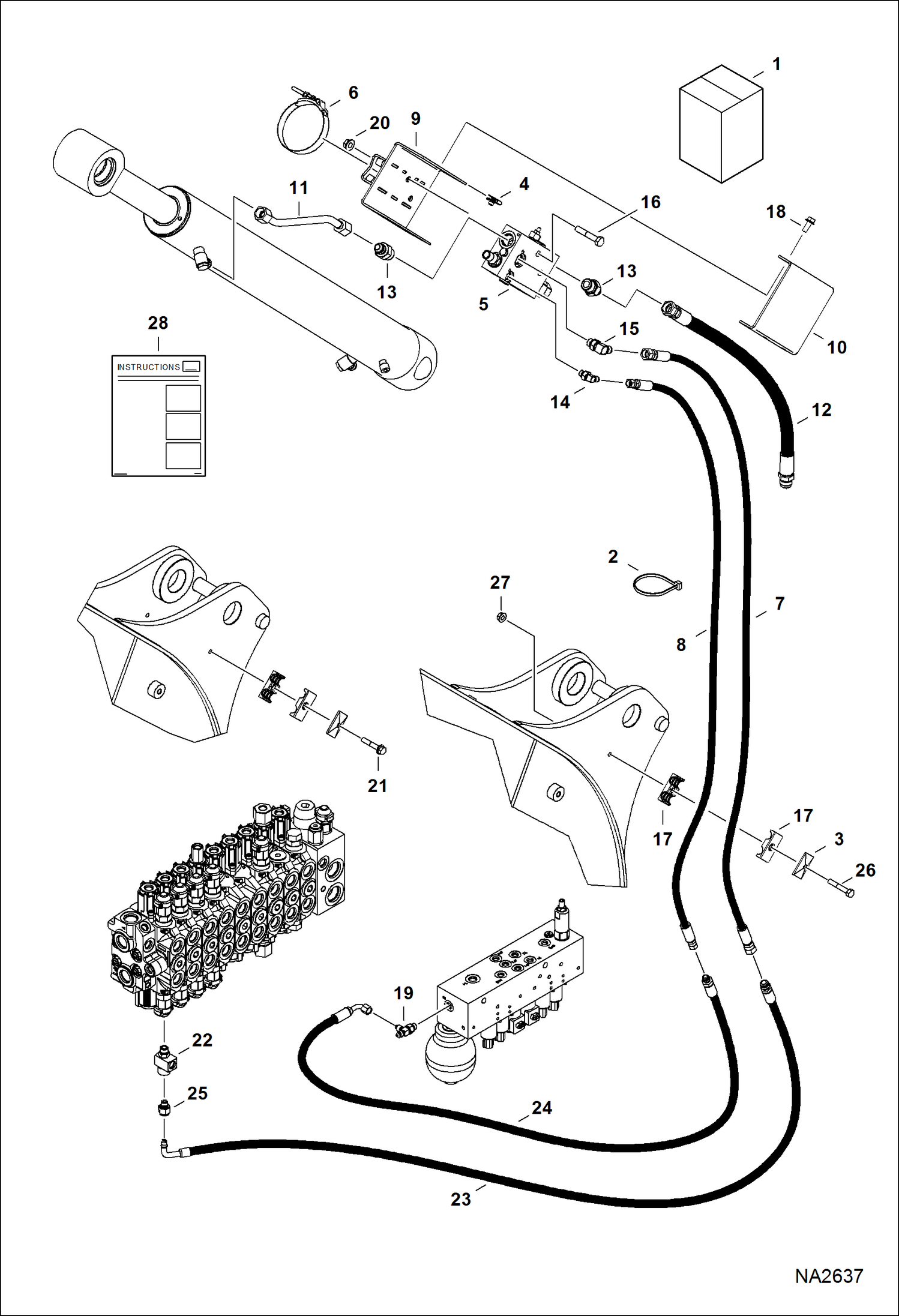

Схема запчастей Bobcat E42 - LOAD HOLD KIT (Arm) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7199461

KIT, LOAD HOLD ARM Ref. 2-26

2

6624289

STRAP, TIE

3

6652521

PLATE

4

6676169

NUT

5

7013150

VALVE, LOCK LOAD See Illustration LOAD HOLD/ NA2638

6

7013233

CLAMP, T-BOLT

7

7176167

HOSE, HYD

8

7176168

HOSE, HYD

9

7186557

BRACKET

10

7186560

BRACKET

11

7186561

TUBELINE, HYD

12

7189959

HOSE, HYD

13

15KB0810

FITTING, HYD CONNECTOR

13

79K10

O RING 10

14

17KB0404

FTG HYD ELBOW 90

14

79K4

O RING 10

15

17KB0606

FITTING

15

79K6

O RING 10

16

1CM1055

BOLT

17

6577697

CLAMP

18

29CM820

SCREW

19

21KB0404

FITTING, HYD TEE

19

79K4

O RING 10

20

51DM10

NUT

21

59CM845

BOLT, FLANGE

22

7185275

FITTING, HYD TEE

22

79K6

O RING 10

23

7187993

HOSE, HYD

24

7187994

HOSE, HYD

25

10L0606

FITTING, HYD CONNECTOR

25

78K6

O'RING

25

7011053

CLIP

26

6990072

INSTRUCTIONS

Выбрано товаров: 33
