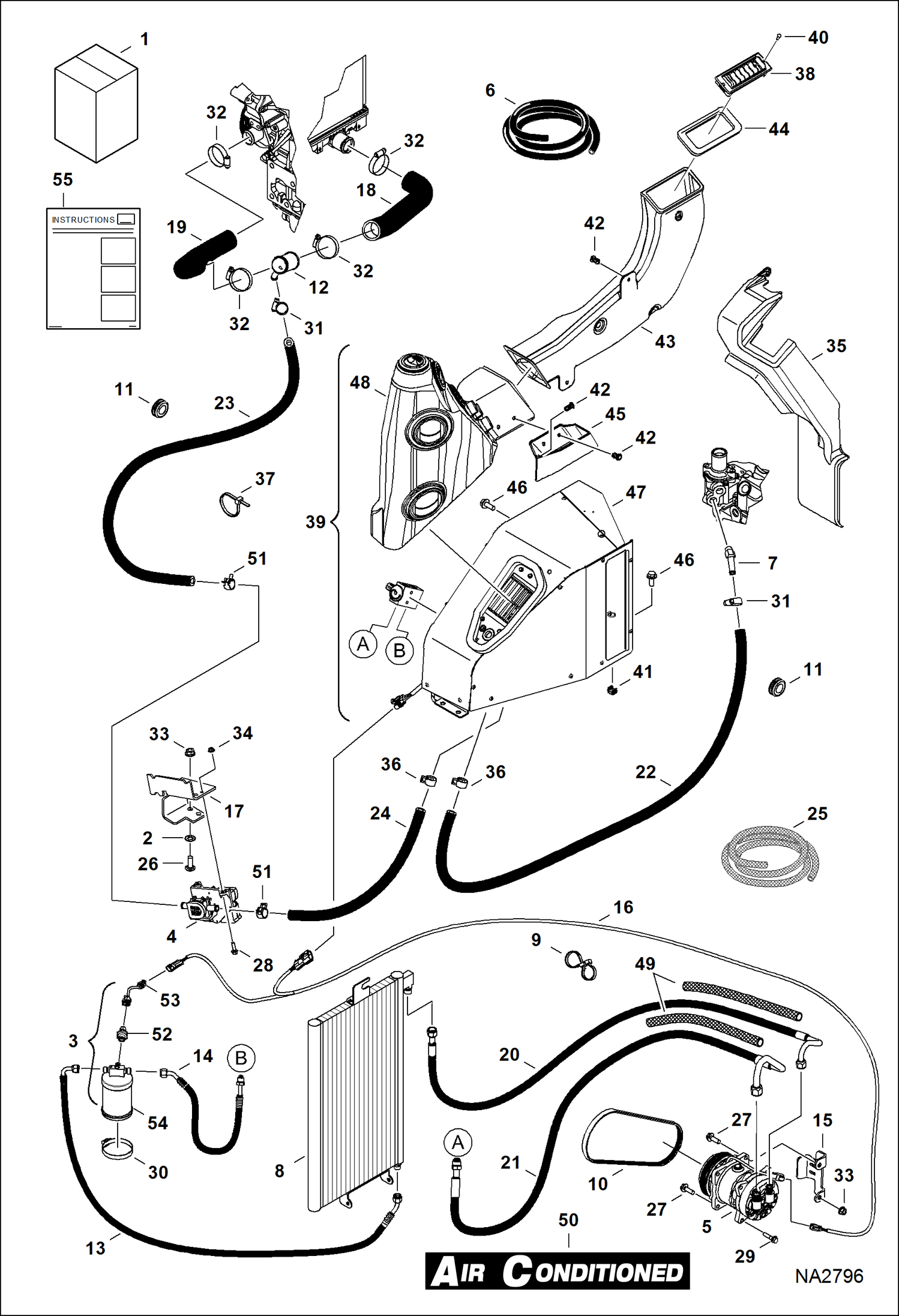

Запчасти Bobcat E42 HEATER & A/C (HVAC Kit) (S/N AG3411001 - 13999) ACCESSORIES & OPTIONS

1

7193841

KIT, HVAC EXC Ref. 2-52

2

6674264

RETAINER NUT

3

7025095

RECEIVER, DRIER A/C Was 6680311 - B

4

7003456

VALVE, MOTORIZED ASSY - Was 6693147 - B

5

7023577

COMPRESSOR, A/C Was 6698358 - A

6

6565977

HOSE bulk - sold per foot

7

6731085

ELBOW

8

7179690

CONDENSER, A/C

9

7009540

STRAP, DOUBLE

10

7010252

BELT, COMPRESSOR A/C

11

7136776

GROMMET

12

7156272

TEE

13

7179819

HOSE, A/C ASSY

14

7179820

HOSE, A/C ASSY W/O charge port

14

7223708

HOSE, A/C ASSY W/ charge port

14

7009976

O-RING #6

15

7156374

BRACKET

16

7168895

HARNESS, AC CLUTCH

17

7183801

BRACKET

18

7179826

HOSE, WATER FORMED

19

7184694

HOSE, HEATER FORMED

20

7179818

HOSE, A/C ASSY

21

7179821

HOSE, A/C ASSY W/O charge port

21

7223709

HOSE, A/C ASSY W/ charge port

21

7009978

O-RING #10

22

HOSE, HEATER NLA - 110.9'' (2818 mm) long - Order Ref. 6

23

HOSE, HEATER NLA - 67.1'' (1704 mm) long - Order Ref. 6

24

HOSE, HEATER NLA - 17.5'' (444 mm) long - Order Ref. 6

25

7187433

COVER, HOSE BULK/FT bulk - sold per foot

26

28CM1030

BOLT

27

29CM1030

BOLT

28

29CM620

SCREW

29

29CM835

BOLT

30

42H48

CLAMP 5

31

42HL100

CLAMP, HOSE

32

42HL200

CLAMP, HOSE

33

43DM10

NUT

34

43DM6

NUT

35

7168404

COVER, RH

36

5HM20

CLAMP

37

6624289

STRAP, TIE

38

6676713

LOUVER

39

HVAC, ASSY NLA - Order Ref. 47 & 48

40

6814024

SCREW

41

7155411

NUT

42

7160383

RIVET, BIRD CAGE

43

7162750

DUCT, AIR

44

7171356

SEAL, DUCT

45

7174321

CONTAINER, STORAGE

46

29CM1025

BOLT

47

7018005

HVAC ASSY See Illustration HEATER & A/C/ NA2793

47

7025145

HVAC ASSY See Illustration HEATER & A/C/ NA6844

48

DUCT, AIR ASSY See Illustration HEATER & A/C/ NA2794

49

COVER, HOSE NLA - 22'' (559 mm) long - Order Ref. 25

50

7166916

DECAL, A/C not in kit

51

5HM21

CLAMP, HOSE

52

6989499

INSTRUCTIONS Was 6989777 - A
