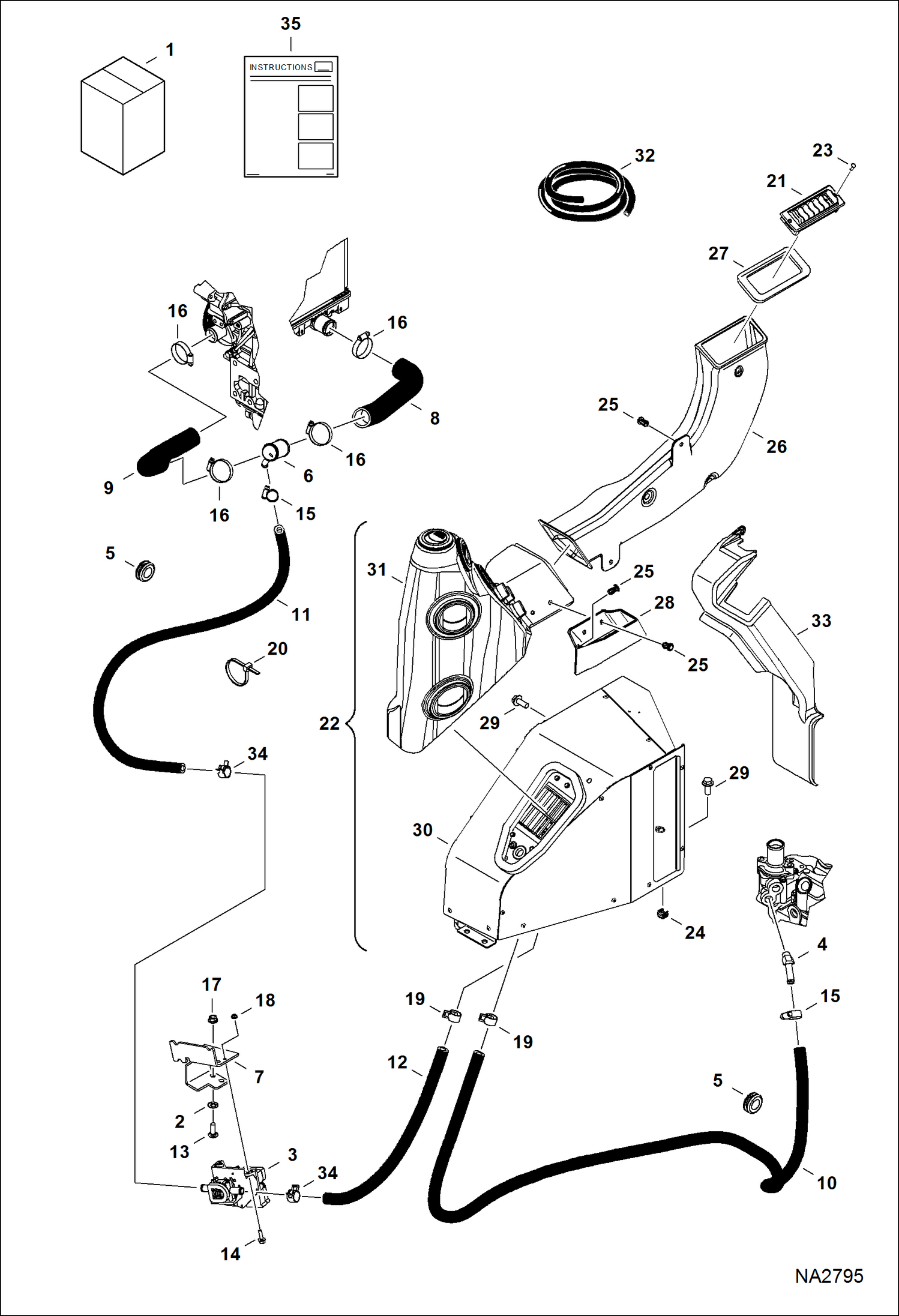

Запчасти Bobcat E42 HEATER & A/C (Heater Kit) (S/N AG3411001 - 13999) ACCESSORIES & OPTIONS

1

7193840

KIT, HEATER Ref. 2-35

2

6674264

RETAINER NUT

3

7003456

VALVE, MOTORIZED ASSY - Was 6693147 - B

4

6731085

ELBOW

5

7136776

GROMMET

6

7156272

TEE

7

7183801

BRACKET

8

7179826

HOSE, WATER FORMED

9

7184694

HOSE, HEATER FORMED

10

HOSE, HEATER NLA - 110.9'' (2818 mm) long - Order Ref. 32

11

HOSE, HEATER NLA - 67.1'' (1704 mm) long - Order Ref. 32

12

HOSE, HEATER NLA - 17.5'' (444 mm) long - Order Ref. 32

13

28CM1030

BOLT

14

29CM620

SCREW

15

5HM20

CLAMP Was 42HL100 - B

16

42HL200

CLAMP, HOSE

17

43DM10

NUT

18

43DM6

NUT

19

5HM20

CLAMP

20

6624289

STRAP, TIE

21

6676713

LOUVER

22

HEATER, CAB NLA - Order Ref. 30 & 31

23

6814024

SCREW

24

7155411

NUT

25

7160383

RIVET, BIRD CAGE

26

7162750

DUCT, AIR

27

7171356

SEAL, DUCT

28

7174321

CONTAINER, STORAGE

29

29CM1025

BOLT

30

7018004

HEATER, CAB See Illustration HEATER & A/C/ NA2792

31

DUCT, AIR ASSY See Illustration HEATER & A/C/ NA2794

32

6565977

HOSE bulk - sold per foot

33

7168404

COVER, RH

34

5HM20

CLAMP Was 5HM21 - B

35

6989498

INSTRUCTIONS Was 6989776 - A
