Запчасти Bobcat E42 EXTENDABLE ARM (Assy) ACCESSORIES & OPTIONS

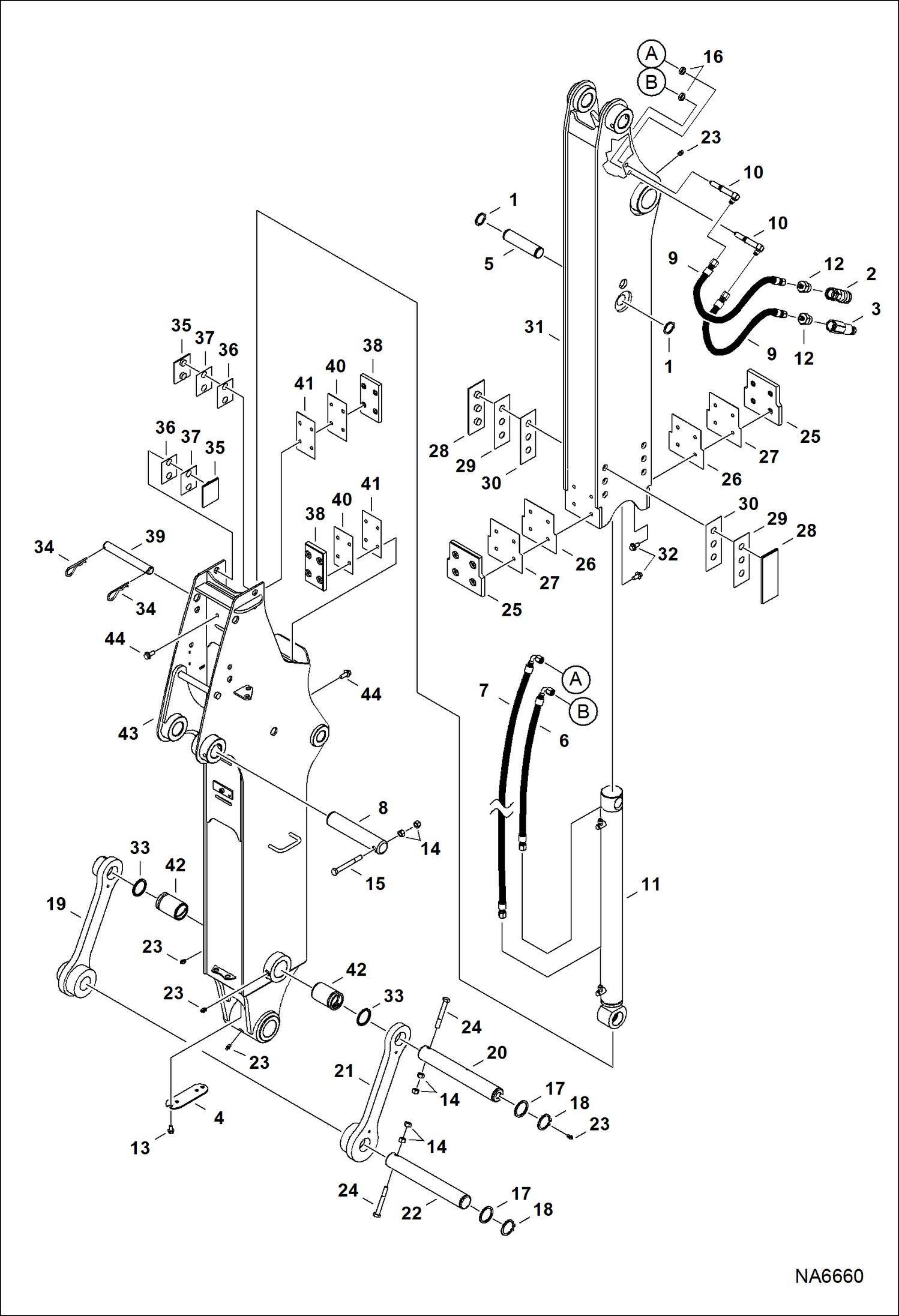

Схема запчастей Bobcat E42 - EXTENDABLE ARM (Assy) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6534154

RING

2

6672960

COUPLER, FF FEMALE

3

6674688

COUPLER, FF MALE

4

7198050

COVER, PLATE

5

7205623

PIN, PIVOT CYL

6

7205626

HOSE, HYD

7

7205627

HOSE, HYD

8

7205685

PIN, PIVOT CYL

9

7207017

HOSE, HYD

10

7207018

FITTING, HYD ELBOW

11

7219322

CYLINDER See Illustration EXTENDABLE ARM CYLINDER/ NA6561

12

15KB0612

FITTING, HYD CONNECTOR

12

79K12

O RING 10

13

29CM816

SCREW

14

4DM12

NUT HEX

15

7CM12110

BOLT

16

86F5

NUT

17

6628547

WASHER

18

6668787

RING

19

7205691

LINK, ASSY

20

7205692

PIN, PIVOT CYL

21

7205693

LINK, ASSY

22

7205694

PIN, PIVOT CYL

23

10H25

FITTING, GREASE 5

24

7CM1290

SCREW

25

7205622

PAD, WEAR ASSY

26

7205642

SHIM

27

7205643

SHIM

28

7205644

PAD, WEAR

29

7205645

SHIM

30

7205646

SHIM

31

7206311

ARM, INNER EXTENDABLE

32

59CM1020

SCREW HX FLNG W/T8.8

33

6669287

SEAL

34

6675029

PIN

35

7194399

PAD, WEAR

36

7194400

SHIM

37

7194401

SHIM

38

7205653

PAD, WEAR ASSY

39

7205654

PIN

40

7205655

SHIM

41

7205656

SHIM

42

7205657

BUSHING, WEAR

43

7206321

ARM, OUTER EXTENDABLE

44

59CM1025

SCREW HX FLNG W/T 8.8

Выбрано товаров: 45
