Запчасти Bobcat E42 EXTENDABLE ARM (Kit) ACCESSORIES & OPTIONS

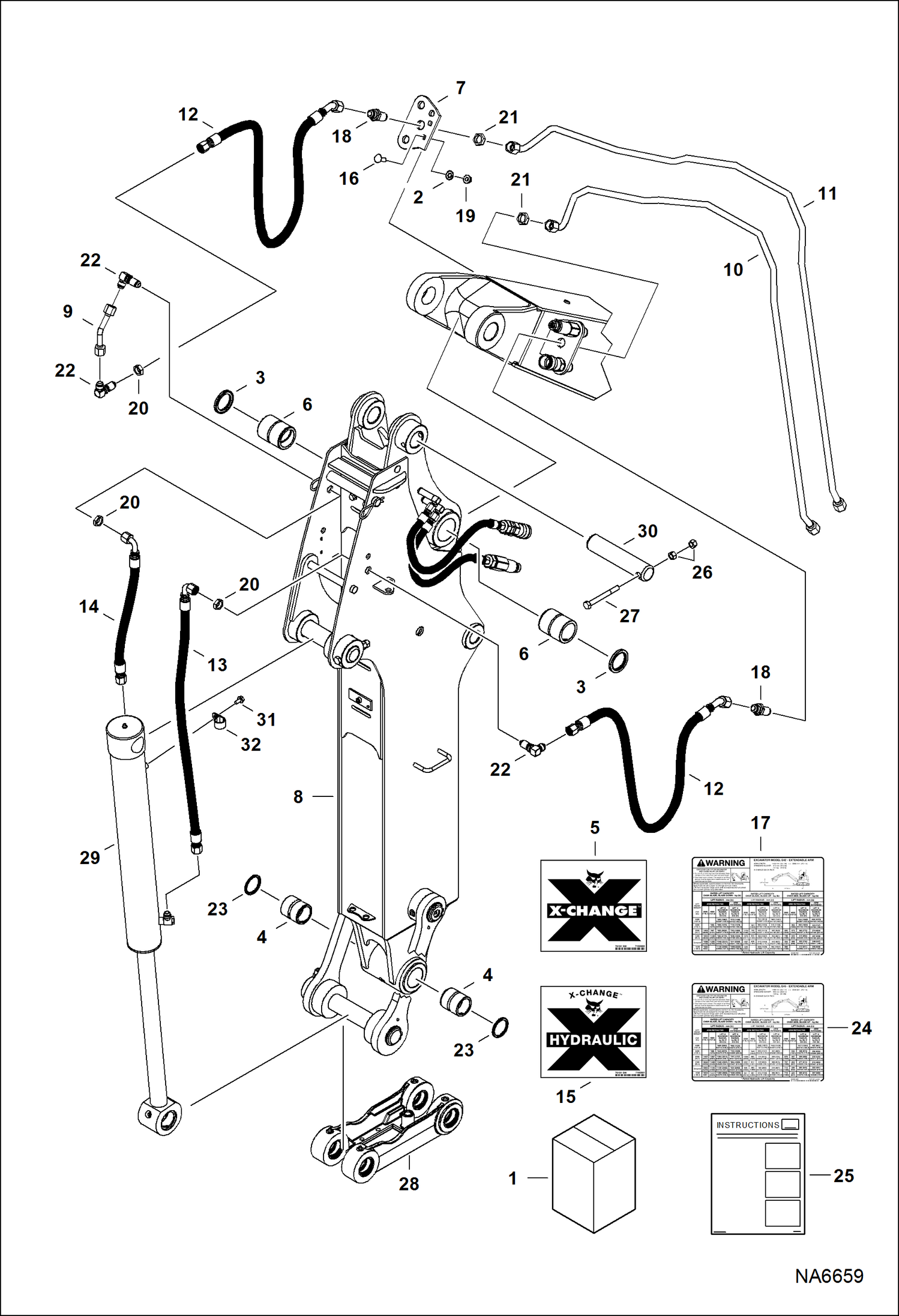

Схема запчастей Bobcat E42 - EXTENDABLE ARM (Kit) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7221751

KIT, ARM EXTENDABLE Ref. 2-25

2

6674264

RETAINER NUT

3

7143551

SEAL, DUST

4

7172745

BUSHING, WEAR

5

7160880

DECAL, X-CHANGE

6

7188685

BUSHING, WEAR

7

7198272

PLATE, MOUNT COUPLER

8

ARM, DIPPER W/A EXT EXC See Illustration EXTENDABLE ARM/ NA6660 - NSS

9

7206330

TUBELINE, HYD

10

7207034

TUBELINE, HYD

11

7207035

TUBELINE, HYD

12

7207040

HOSE, HYD

13

7207044

HOSE, HYD

14

7207045

HOSE, HYD

15

7160881

DECAL, X-CHANGE

16

28CM1030

BOLT

17

7221250

DECAL, CAPACITY LIFT E42

18

45K7

CONNECTR

19

51DM10

NUT

20

86F6

NUT

21

86F7

LOCK NUT

22

88F6

ELBOW

23

6669287

SEAL

24

7221251

DECAL, CAPACITY LIFT E45

25

6990120

INSTRUCTIONS

26

4DM12

NUT HEX not in kit

27

7CM12110

BOLT not in kit

28

7236787

LINK, ASSY See Illustration BUCKET LINK/ NA8362 - not in kit - Was 7165792 - A

29

7175041

CYLINDER, BUCKET See Illustration BUCKET CYLINDER/ NA1938 - not in kit

30

7208620

PIN, PIVOT not in kit

31

29CM816

SCREW not in kit

32

30H50

CLIP not in kit

Выбрано товаров: 32
