Запчасти Bobcat E42 UPPER GASKET KIT POWER UNIT

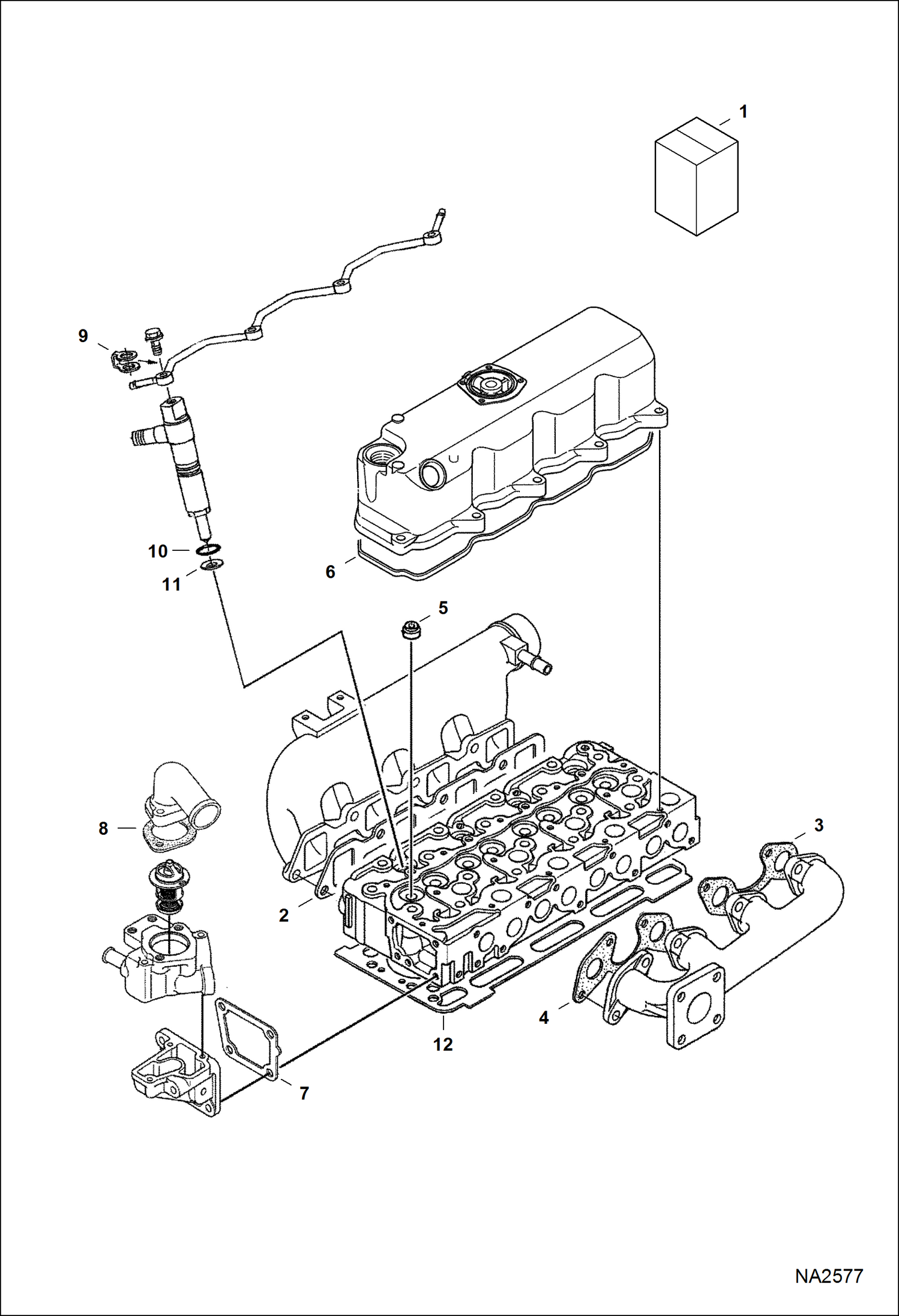

Схема запчастей Bobcat E42 - UPPER GASKET KIT POWER UNIT

Артикул

Название

Примечание

Количество

1

6689012

KIT, GASKET ENG UPPER Ref. 2-11 - does not include head gasket

2

6684877

GASKET See Illustration MANIFOLDS/ B27073 - intake manifold

3

6666791

GASKET See Illustration MANIFOLDS/ B27073 - exhaust - rear

4

6666781

GASKET See Illustration MANIFOLDS/ B27073 - exhaust - front

5

6653830

SEAL, STEM VALVE See Illustration CYLINDER HEAD/ B27066

6

6684780

GASKET See Illustration ROCKER ARM COVER/ NA2519 - rocker arm cover

7

6666802

GASKET See Illustration WATER FLANGE AND THERMOSTAT/ B27049 - water flange

8

6684863

GASKET See Illustration WATER FLANGE AND THERMOSTAT/ B27049 - thermostat

9

6685498

GASKET See Illustration INJECTOR NOZZLES/ B27078 - return line

10

6670769

O-RING See Illustration INJECTOR NOZZLES/ B27078 - injector nozzle

11

6969824

GASKET, NOZZLE INJ See Illustration INJECTOR NOZZLES/ B27078 - heat shield

12

GASKET, HEAD See Illustration CYLINDER HEAD/ B27066 - not in kit

Выбрано товаров: 12
