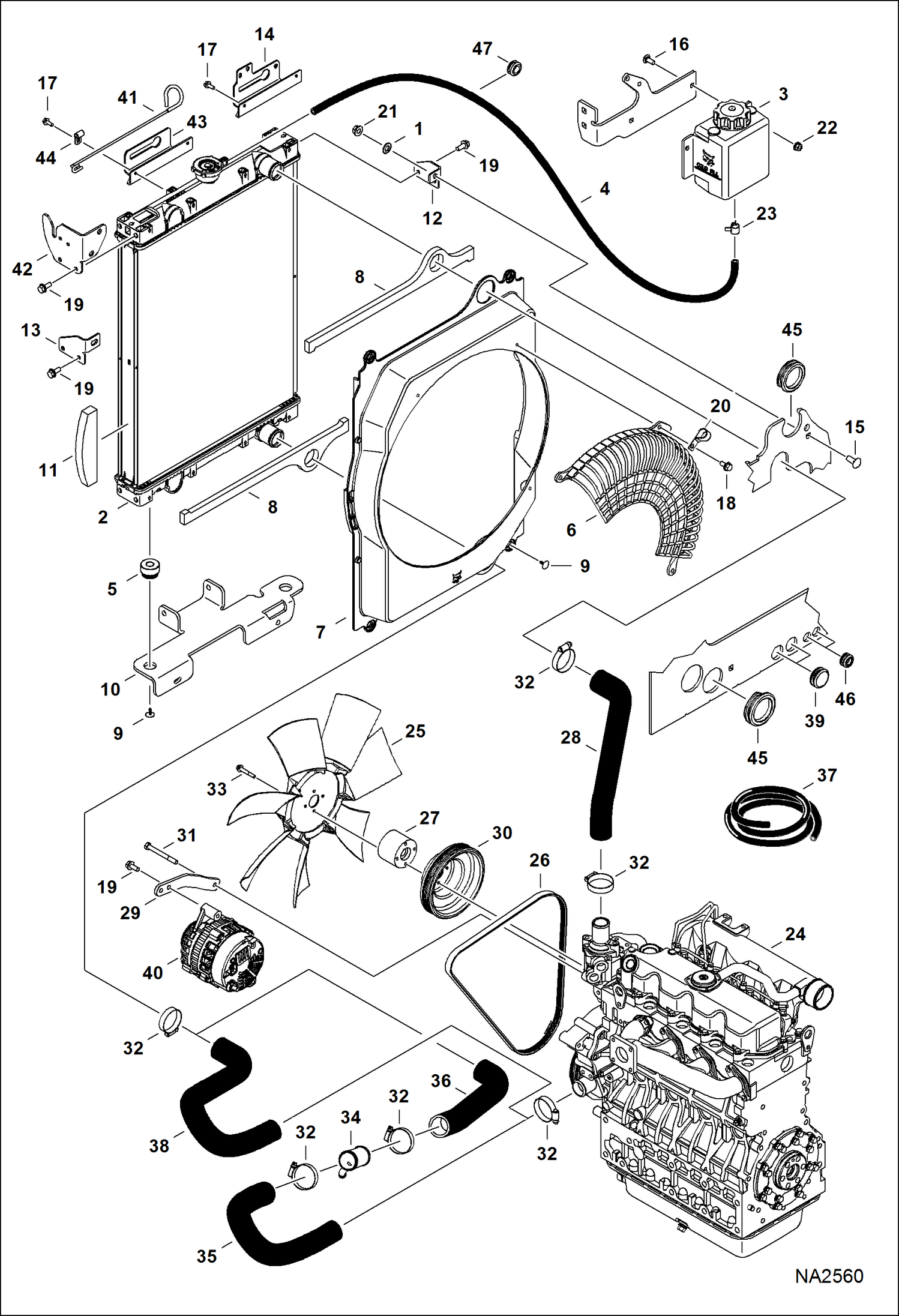

Запчасти Bobcat E42 ENGINE & ATTACHING PARTS (Radiator Water Exchanger) POWER UNIT

1

6674264

RETAINER NUT

2

7003475

EXCHANGER, WATER RADIATOR

2

6646678

CAP

3

7008312

TANK, COOLANT

3

7218789

CAP, OVERFLOW COOLANT Was 6675551 - B

4

HOSE, FUEL NLA - 26'' (660 mm) long - Order Ref. 37

5

7139574

MOUNT RUBBER

6

7146599

GUARD, FAN

7

7168071

SHROUD, FAN

8

7170400

SEAL RADAITOR

9

7170740

CLIP PLASTIC TREE

10

7173965

SUPPORT, RADIATOR See Illustration HYDRAULIC CIRCUITRY/ NA2621

11

7175062

SEAL, RADIATOR

12

7180161

MOUNT, RADIATOR

13

7180245

MOUNT, RADIATOR

14

7181476

BRACKET, EXCHANGER

15

28CM1025

BOLT

16

28CM820

BOLT

17

29CM616

BOLT

18

29CM816

SCREW

19

29CM820

SCREW

20

30HJ512

CLAMP

21

43DM10

NUT

22

51DM8

NUT

23

5HM14

CLAMP

24

ENGINE See Illustration ENGINE & GASKET KITS/ NA1527

25

7182861

FAN, COOLING Was 7010054 - A

26

7010894

BELT, FAN

27

7173388

SPACER

28

7178519

HOSE, WATER UPPER

29

7185456

BRACKET, ALT

30

7185459

PULLEY, FAN ENG

31

1CM880

BOLT

32

42HL200

CLAMP, HOSE

33

60CM660

SCREW

34

7156272

TEE

35

7179826

HOSE, WATER FORMED W/heater or A/C

36

7184694

HOSE, HEATER FORMED W/heater or A/C

37

6577822

HOSE bulk - sold per foot

38

7146552

HOSE, WATER LOWER W/O heater or A/C

39

6810133

GROMMET

40

7008772

ALTERNATOR, 90 AMP See Illustration ALTERNATOR/ NA2234

41

7191746

ROD, RELEASE

42

7199747

MOUNT, RADIATOR

43

7213293

BRACKET, MOUNTING

44

30H19

CLIP
