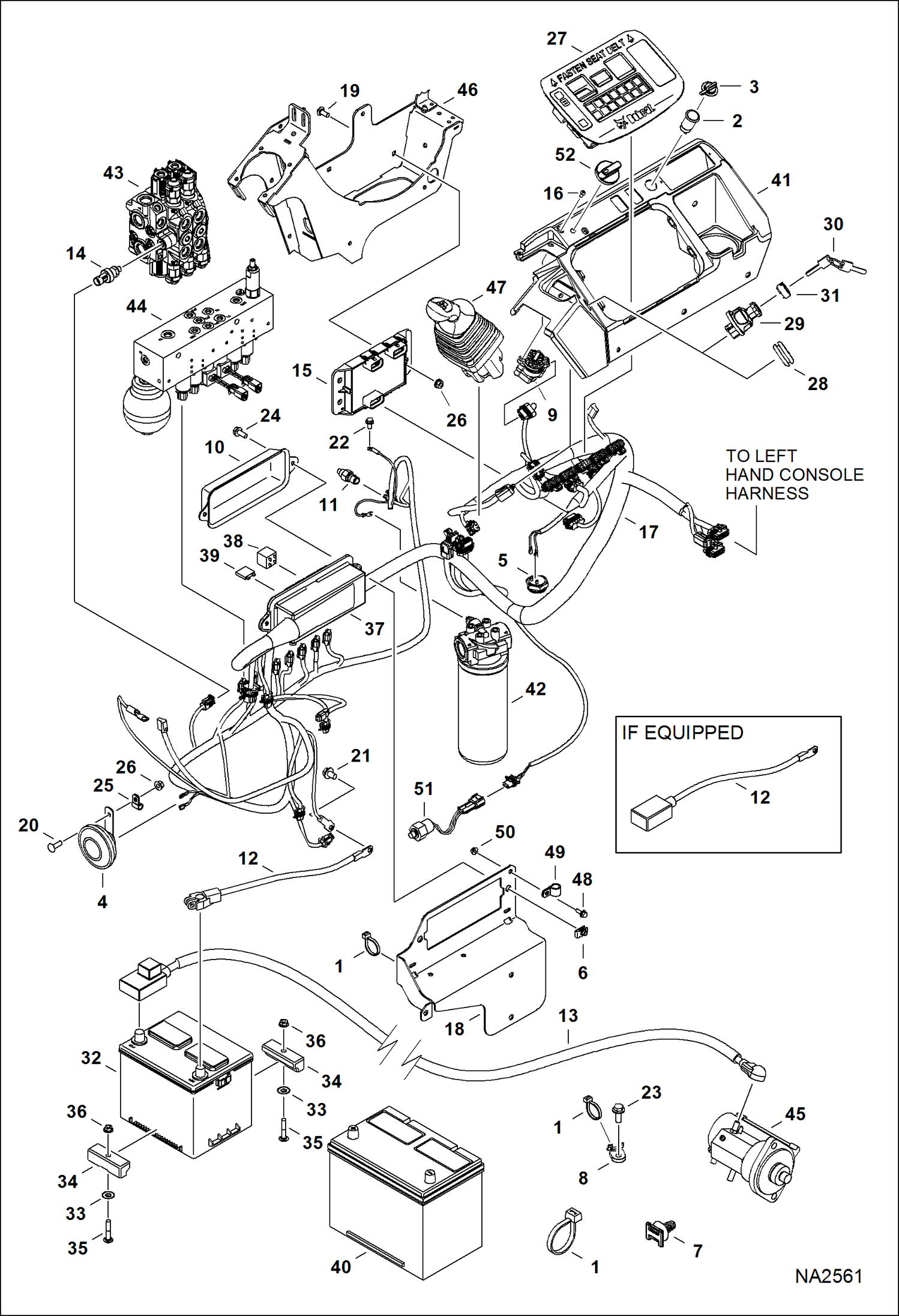

Запчасти Bobcat E42 CONTROLS ELECTRICAL (RH Console) (S/N AG3411001 - 13999) ELECTRICAL SYSTEM

1

6624289

STRAP, TIE

2

6664223

OUTLET

3

6664224

CAP

4

6671106

HORN

5

6675705

ALARM

6

6676169

NUT

7

7015668

MOUNT, STRAP TIE push in - Use W/tie strap - Was 6678666 - B

8

6679034

MOUNT

9

6698640

CONTROL, THROTTLE

10

6716621

COVER

11

6727869

SENDER,HYD TEMP

12

6807431

CABLE

13

6809043

CABLE

14

7025582

SENSOR, PRESS OIL HYD Was 7022000 - A

15

7010112

CONTROLLER, THROTTLE AIC

16

7135909

SCREW

17

7205968

HARNESS, CONSOLE RH Was 7175754 - A

18

7185586

BRACKET, RELAY CENTER

19

28CM820

BOLT

20

28CM825

BOLT

21

29CM1016

BOLT

22

29CM1020

BOLT

23

29CM1025

BOLT

24

29CM820

SCREW

25

30H22

CLIP

26

43DM8

NUT

27

CONTROLLER, KEYED PANEL NLA - W/O selectable aux hyd flow - Was 6698608 - B

27

7021081

CONTROLLER, KEYED PANEL W/selectable aux hyd flow

27

CONTROLLER, KEYLESS PANEL NLA - W/O selectable aux hyd flow - Was 6698609 - B

27

7021082

CONTROLLER, KEYLESS PANEL W/selectable aux hyd flow

28

6676922

PLUG

29

6693245

SWITCH, IGN

30

6693241

KEY 10 ignition - single key W/O ring

31

7000328

ADAPTER, SWITCH IGN

32

6670251

BATTERY, DRY 530 AMP

33

6675859

RETAINER

34

7120672

TIE DOWN

35

28CM845

BOLT

36

43DM8

NUT

37

6718659

HOUSING

38

6679820

RELAY

39

6654803

FUSE 5A

39

6654805

FUSE 10A

39

6654806

FUSE, 15A

39

6625575

FUSE, 20A

39

6702444

FUSE 25A 5

40

6674687

BATTERY, DRY 600 AMP

41

COVER, RH See Illustration CONTROL CONSOLE/ NA2251

42

FILTER ASSY See Illustration HYDROSTATIC OIL FILTER/ NA1844

43

CONTROL VALVE See Illustration HYDRAULIC CONTROL VALVE/ NA2566 9 section - W/O angle blade

43

CONTROL VALVE See Illustration HYDRAULIC CONTROL VALVE/ NA2567 10 section - W/ angle blade

44

MANIFOLD See Illustration MANIFOLD ASSY/ NA1976 W/O angle blade

44

MANIFOLD See Illustration MANIFOLD ASSY/ NA1975 W/ angle blade

45

STARTER See Illustration STARTER/ D2437

46

CONTROLLER, JOYSTICK ASSY See Illustration CONTROL CONSOLE/ NA2251

47

JOYSTICK, RH See Illustration RH JOYSTICK/ MS1352

48

29CM616

BOLT

49

30H34

CLAMP

50

43DM6

NUT

51

7008933

SWITCH, PRESS OIL HYD

52

7022367

KNOB
