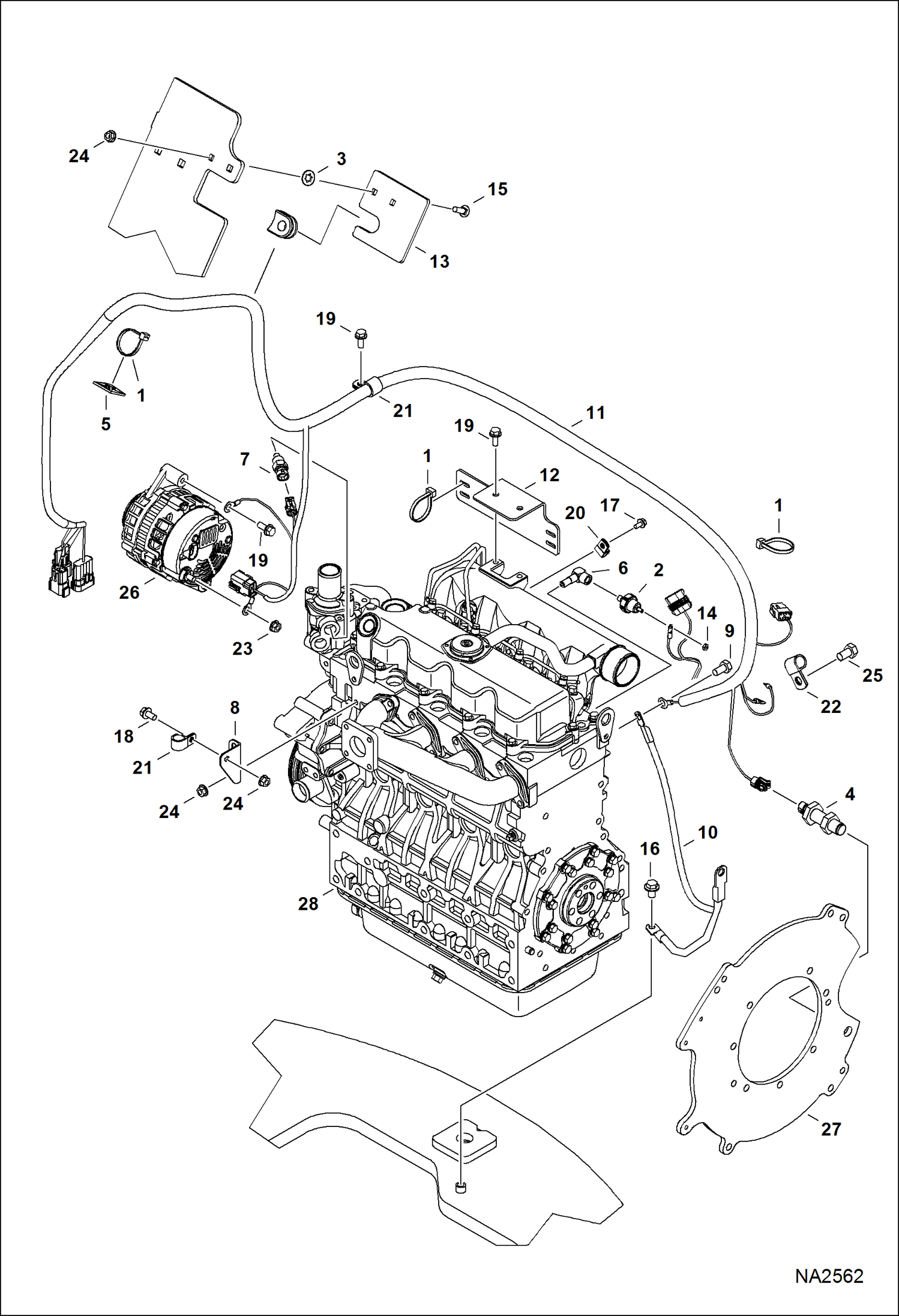

Запчасти Bobcat E42 ENGINE ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

1

6624289

STRAP, TIE

2

6631010

SWITCH, PRESS OIL ENG

3

6674264

RETAINER NUT

4

6693921

SENSOR, RPM

5

6693924

MOUNT

6

6707040

ELBOW

7

6718414

SENDER, TEMP ENG

8

7100529

BRACKET

9

5CM1020

SCREW W/thread lock applied - Was 7120308 - D

10

7151891

HARNESS, GROUND

11

7175747

HARNESS, ENG

12

7177292

BRACKET, HARNESS

13

7233802

PLATE, SEAL Was 7188776 - A

14

12D8

NUT

15

28CM825

BOLT

16

29CM1016

BOLT

17

29CM612

BOLT, FLANGED

18

29CM816

SCREW

19

29CM820

SCREW

20

30H26

CLIP

21

30H38

CLIP Was 30H37 - B

22

30H44

CLAMP

23

43DM8

NUT

24

51DM8

NUT

25

6CM1220

BOLT

26

ALTERNATOR See Illustration ALTERNATOR/ NA2234

27

PLATE, FLYWHEEL See Illustration ENGINE & ATTACHING PARTS/ NA2563

28

ENGINE See Illustration ENGINE & GASKET KITS/ NA1527
