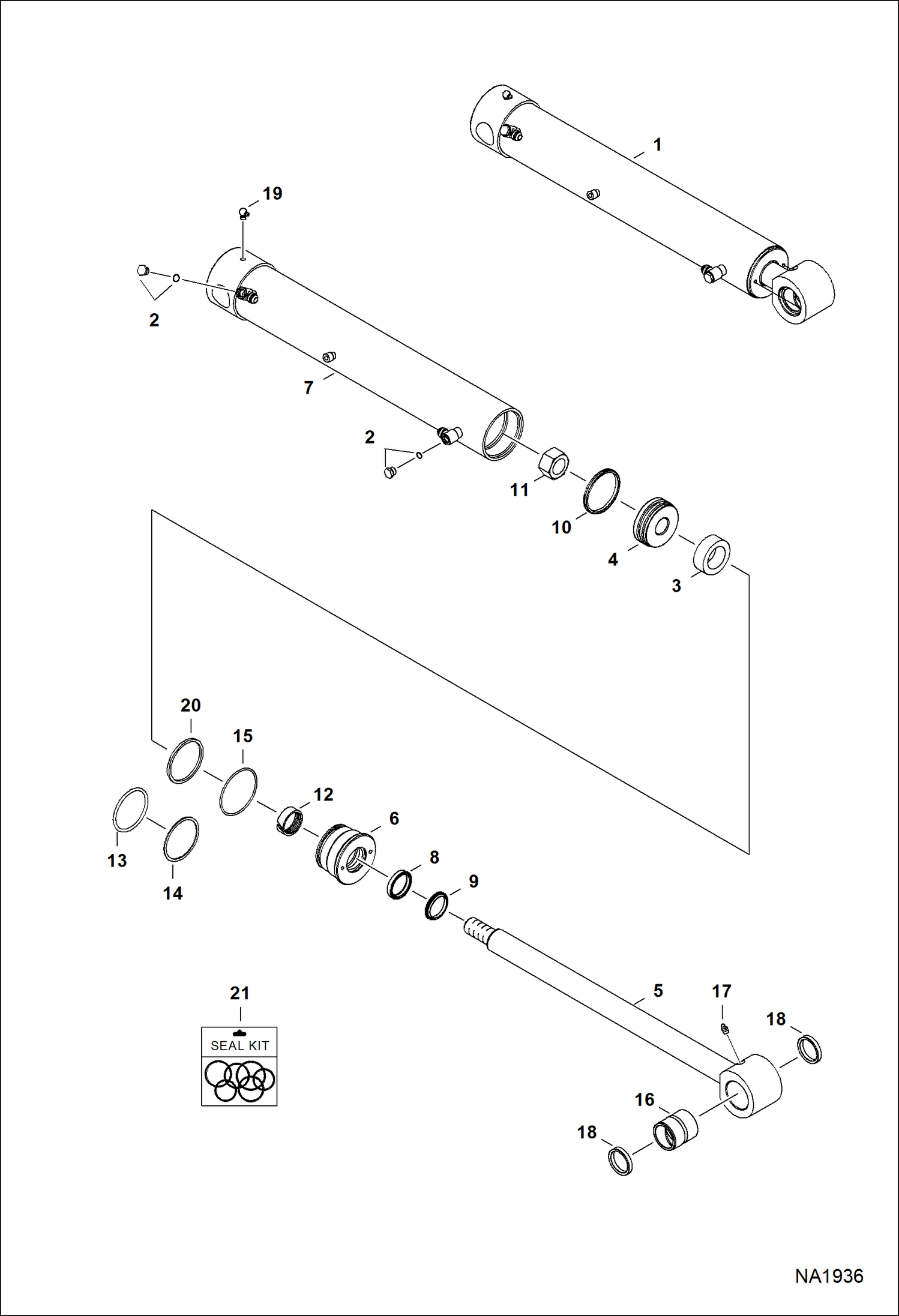

Запчасти Bobcat E42 BOOM SWING CYLINDER HYDRAULIC SYSTEM

1

7178023

CYLINDER, SWING Ref. 2-15 - Also Order Ref. 16-18

2

6812171

PLUG W/ O-ring

2

75K6

O-RING

3

7147221

SPACER

4

7166019

PISTON

5

7178025

ROD, CYL Also Order Ref. 16-18

6

7188135

HEAD, CYL HYD

7

7178024

TUBE, CASE CYL W/Ref. 2 & 15

8

6667327

SEAL

9

6686999

WIPER, ROD CYL

10

6692806

SEAL, CYLINDER

11

6810540

NUT

12

7000771

RING, WEAR

13

O RING 10 NLA - Order Ref. 19 - Was 58K338 - B

14

RING NLA - Order Ref. 19 - Was 73K338 - B

15

82K238

O-RING

16

7172745

BUSHING, WEAR

17

10H25

FITTING, GREASE 5

18

6669287

SEAL

19

83F3

ELBOW 5 if equipped

19

12H15

FITTING, GREASE 5

20

7008353

SEAL, QUAD

21

7196905

KIT, SEAL Ref. 8-12, 15 & 19 - Was 7190394 - A
