Запчасти Bobcat E42 ARM CYLINDER HYDRAULIC SYSTEM

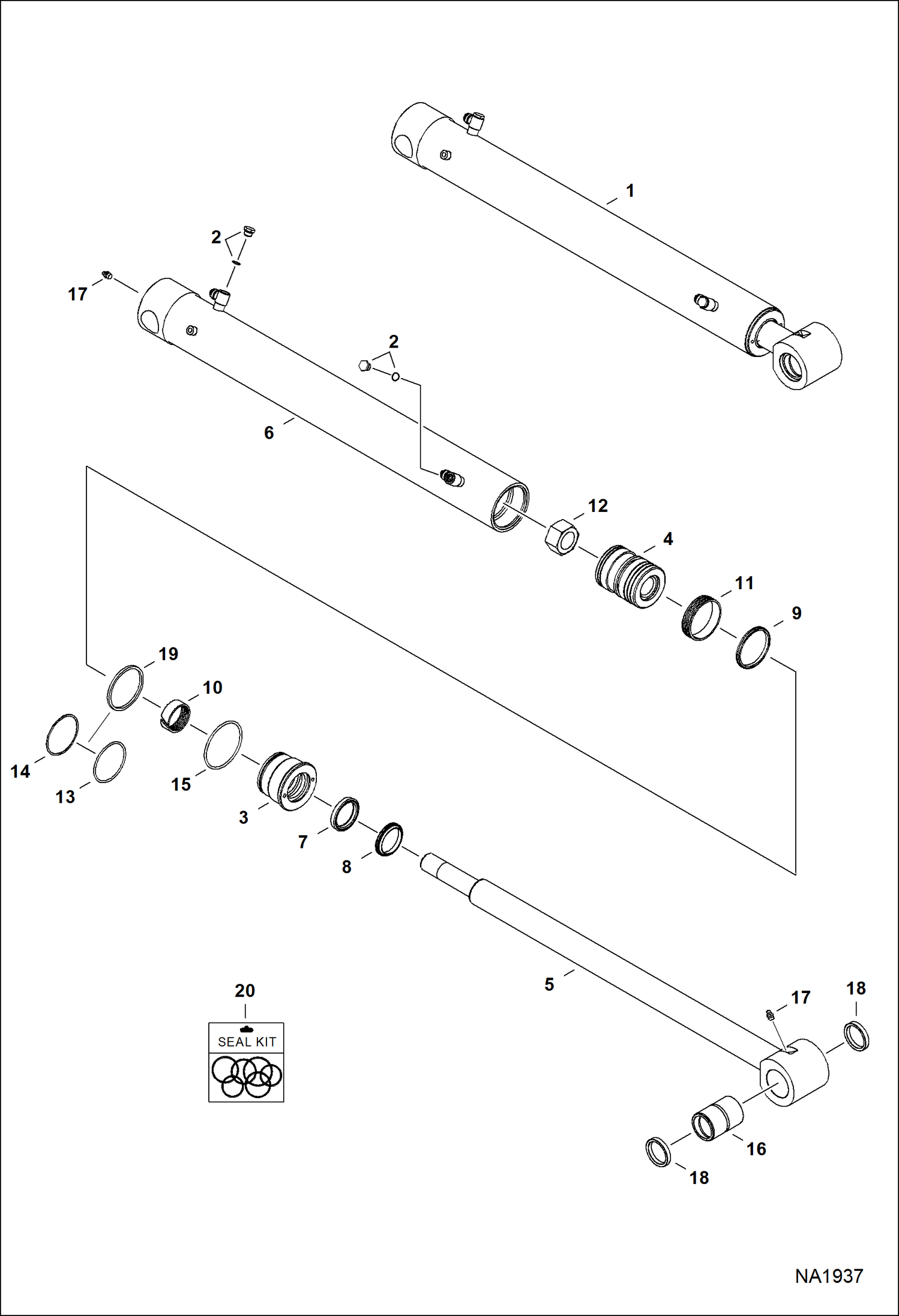

Схема запчастей Bobcat E42 - ARM CYLINDER HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7175158

CYLINDER, ARM Ref. 2-15 - Also Order Ref. 16-18

2

6812171

PLUG W/ O-ring

2

75K6

O-RING

3

6817122

HEAD

4

7166188

PISTON, CYL

5

7175160

ROD, CYL Also Order Ref. 16-18

6

7175159

TUBE, CASE CYL W/Ref. 2 & 15 - Also Order Ref. 17

7

6667328

SEAL

8

6686998

WIPER, ROD CYL

9

6692326

SEAL, BP

10

7000772

RING, WEAR

11

7000778

RING, WEAR

12

7154049

NUT

13

58K234

O RING 10

14

73K234

BACK-UP RING

15

82K236

O-RING

16

7166187

BUSHING, WEAR

17

10H25

FITTING, GREASE 5

18

6669287

SEAL

19

7008354

SEAL, QUAD

20

7166257

KIT, SEAL Ref. 7-12, 15, & 19

Выбрано товаров: 21
