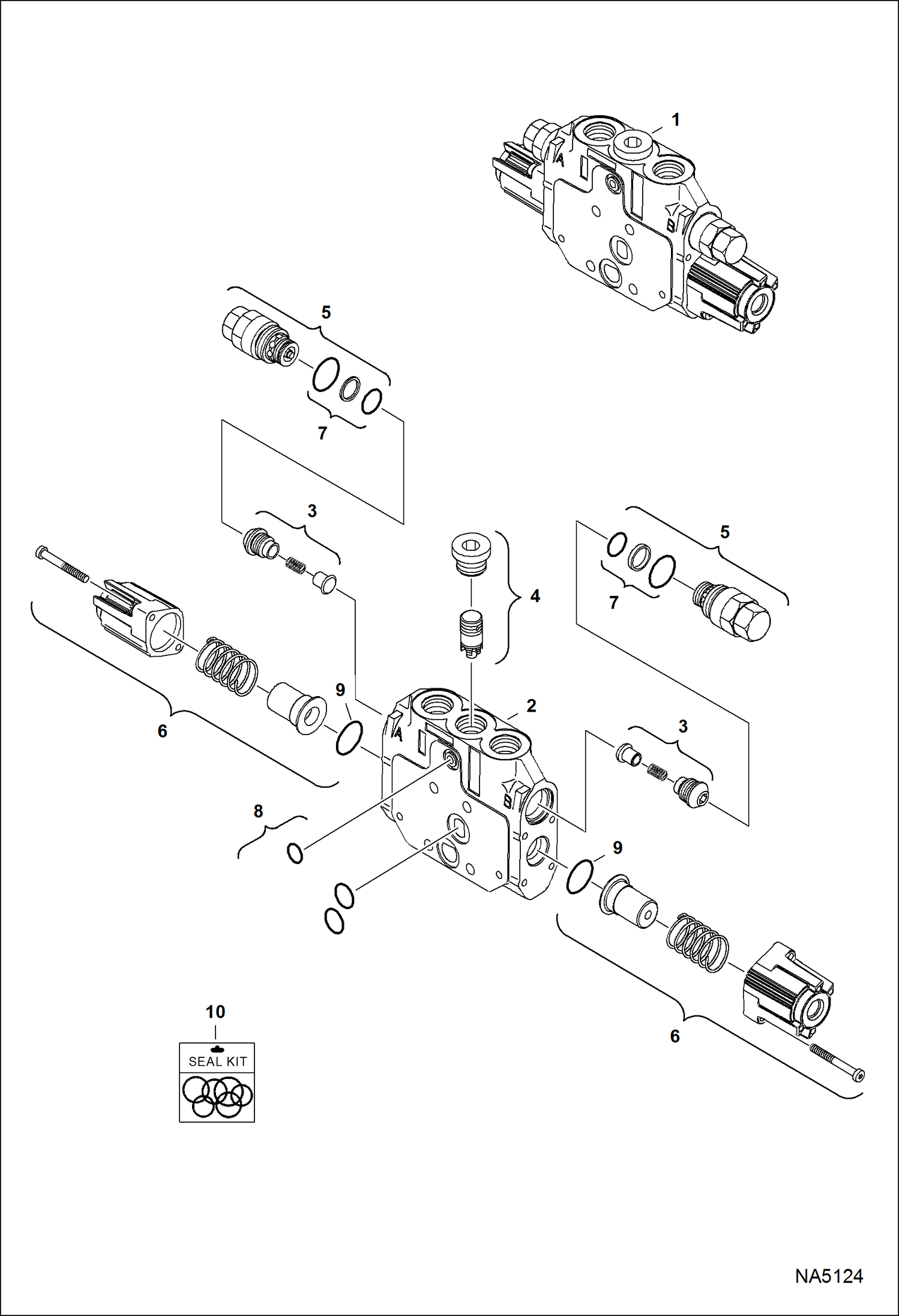

Запчасти Bobcat E42 HYDRAULIC CONTROL VALVE (Boom Swing Section) HYDRAULIC SYSTEM

1

7016124

SECTION, VALVE Ref. 2-10

2

HOUSING, VALVE NSS - Order Ref. 1

3

6677689

CHECK VALVE

4

6677690

KIT, COMPENSATOR

5

7016141

VALVE, ANTI-CAV

6

6677699

ACTUATOR includes both sides

7

6910713

SEAL KIT

8

6677467

KIT, SEAL

9

O-RING NSS - Order Ref. 10

10

6677470

SEAL KIT Ref. 8 & 9
