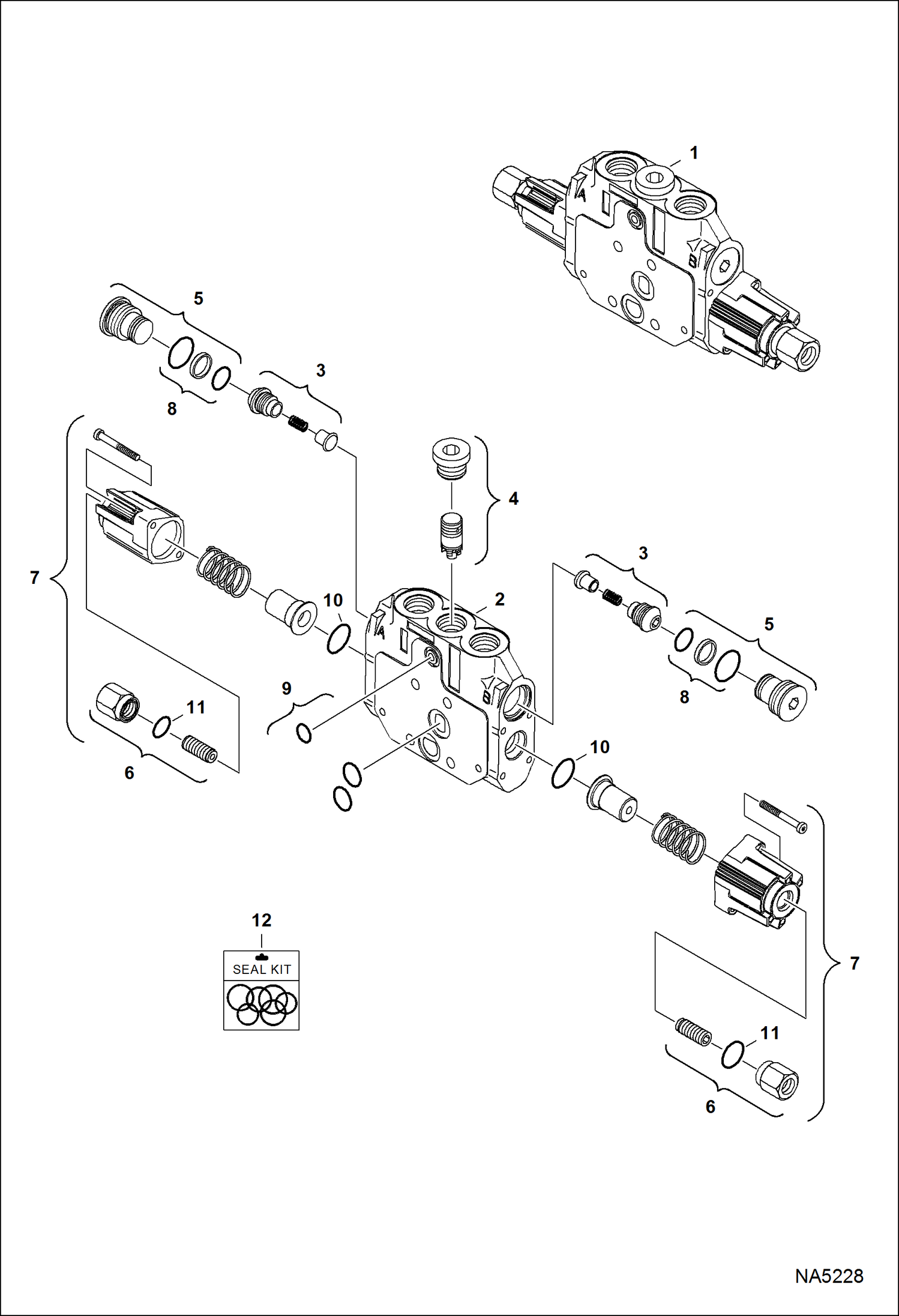

Запчасти Bobcat E42 HYDRAULIC CONTROL VALVE (Slew Section) HYDRAULIC SYSTEM

1

7016126

SECTION, VALVE Ref. 2-12 - W/ dual port caps

1

7030242

SECTION, VALVE Ref. 2-12 - W/O dual port caps

2

HOUSING, VALVE NSS - Order Ref. 1

3

6677689

CHECK VALVE

4

6677692

KIT COMPENSATOR

5

6677471

PLUG ASSY

6

6691075

KIT

7

7016142

KIT, CAP includes both sides - W/ dual port caps

7

6677700

ACTUATOR includes both sides - W/O dual port caps

8

6910713

SEAL KIT

9

6677467

KIT, SEAL

10

O-RING NSS - Order Ref. 12

11

O-RING NSS - Order Ref. 12

12

6677470

SEAL KIT Ref. 9-11
