Запчасти Bobcat E35 SWIVEL ASSY (W/ Angle Blade) HYDRAULIC SYSTEM

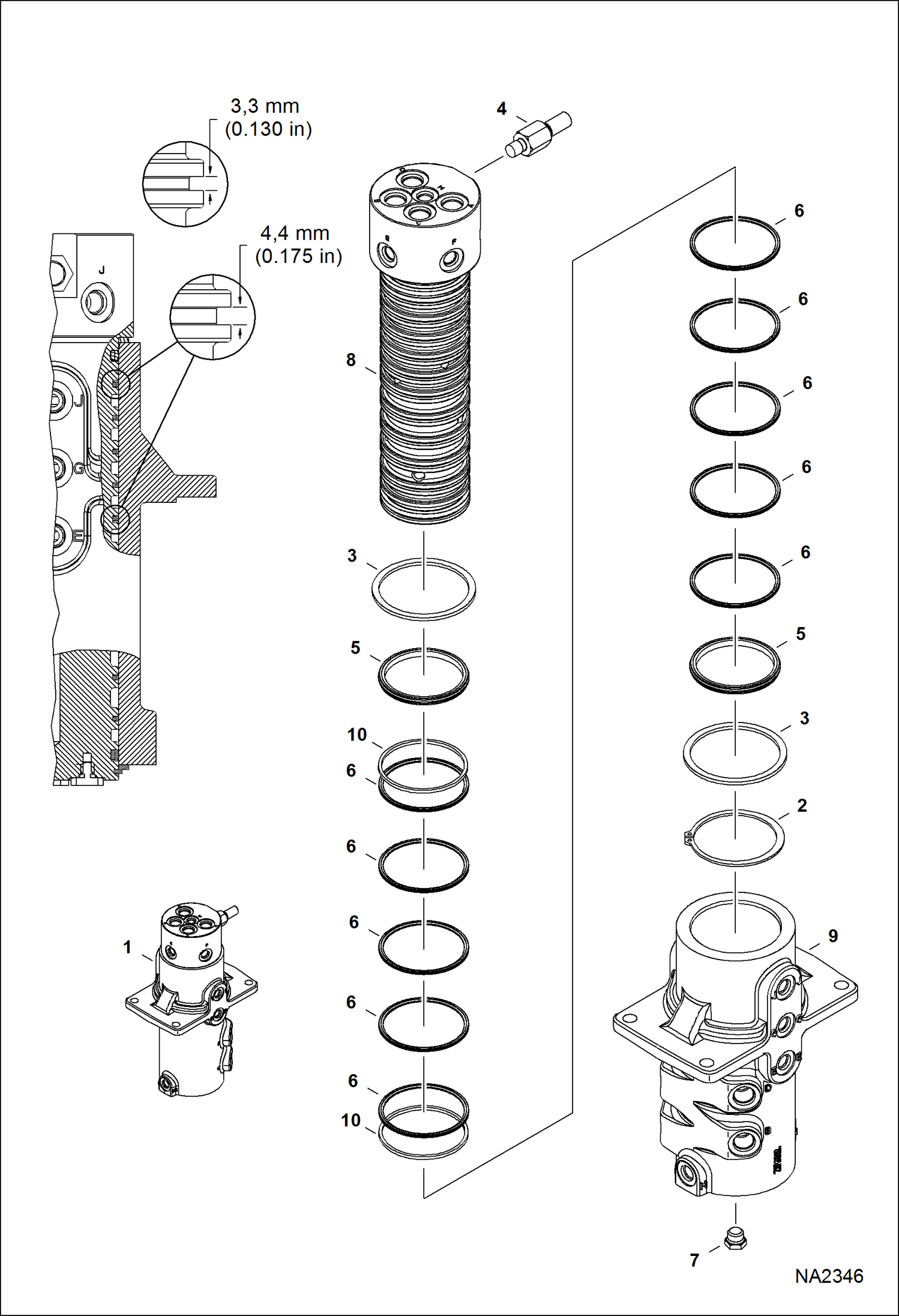

Схема запчастей Bobcat E35 - SWIVEL ASSY (W/ Angle Blade) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

SWIVEL, HYD ASSY NLA - Ref. 2-9 - Was 7152908 - A

1

7152908

SWIVEL, HYD ASSY Ref. 2-10

2

6662076

RING

3

6674221

WASHER

4

6810029

STOP

5

7100535

SEAL Was 6810610 - A

6

6810813

SEAL, OIL 2 pc seal

7

6812171

PLUG

7

79K6

O RING 10

8

7152911

SPOOL, SWIVEL

9

BARREL NLA - Order Ref. 1

10

6679248

RING Use W/Ref. 6 W/spool W/4,44 mm (.175'') groove height on the first and fifth O-ring grooves from the top

Выбрано товаров: 12
