BLADE JOYSTICK (W/ Angle Blade) (S/N A93K18001 & Above, AC2P15001 & Above)

Запчасти Bobcat E35 BLADE JOYSTICK (W/ Angle Blade) (S/N A93K18001 & Above, AC2P15001 & Above) HYDRAULIC SYSTEM

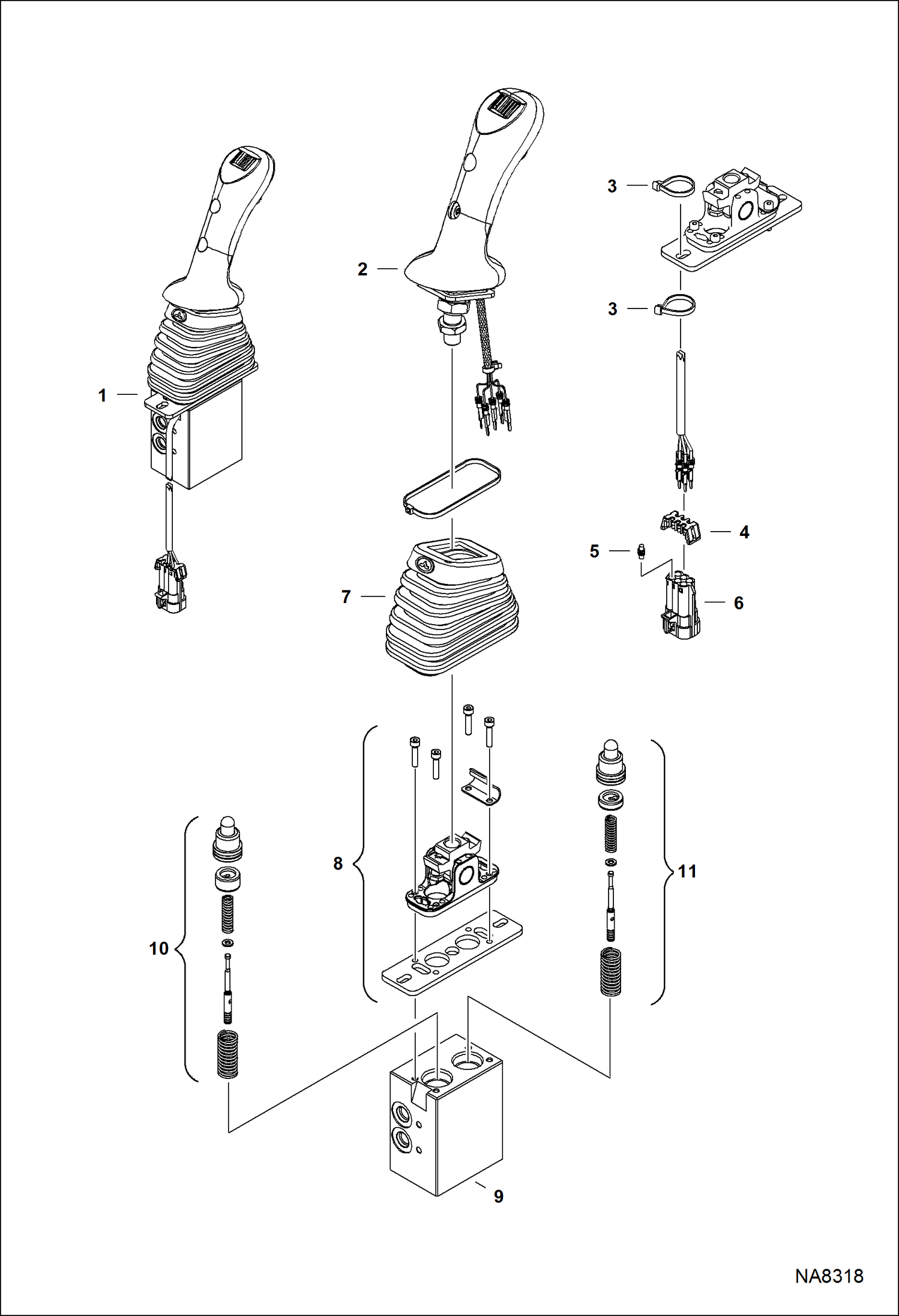

Схема запчастей Bobcat E35 - BLADE JOYSTICK (W/ Angle Blade) (S/N A93K18001 & Above, AC2P15001 & Above) HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

7024442

JOYSTICK, PILOT Ref. 2-11

2

7031602

HANDLE, JOYSTICK

3

6610510

TIE

4

7010550

LOCK 6 pin

5

7010551

PLUG

6

7010552

CONNECTOR 6 pin

7

7031603

BOOT, RUBBER

8

7031604

BASE, JOYSTICK

9

7010554

HOUSING, JOYSTICK

10

7010555

SPOOL, ACTUATOR ASSY

11

7010556

SPOOL, ACTUATOR ASSY
