Запчасти Bobcat E35 BLADE JOYSTICK (W/ Angle Blade) (S/N A93K11001 - 17999, AC2P11001 - 14999) HYDRAULIC SYSTEM

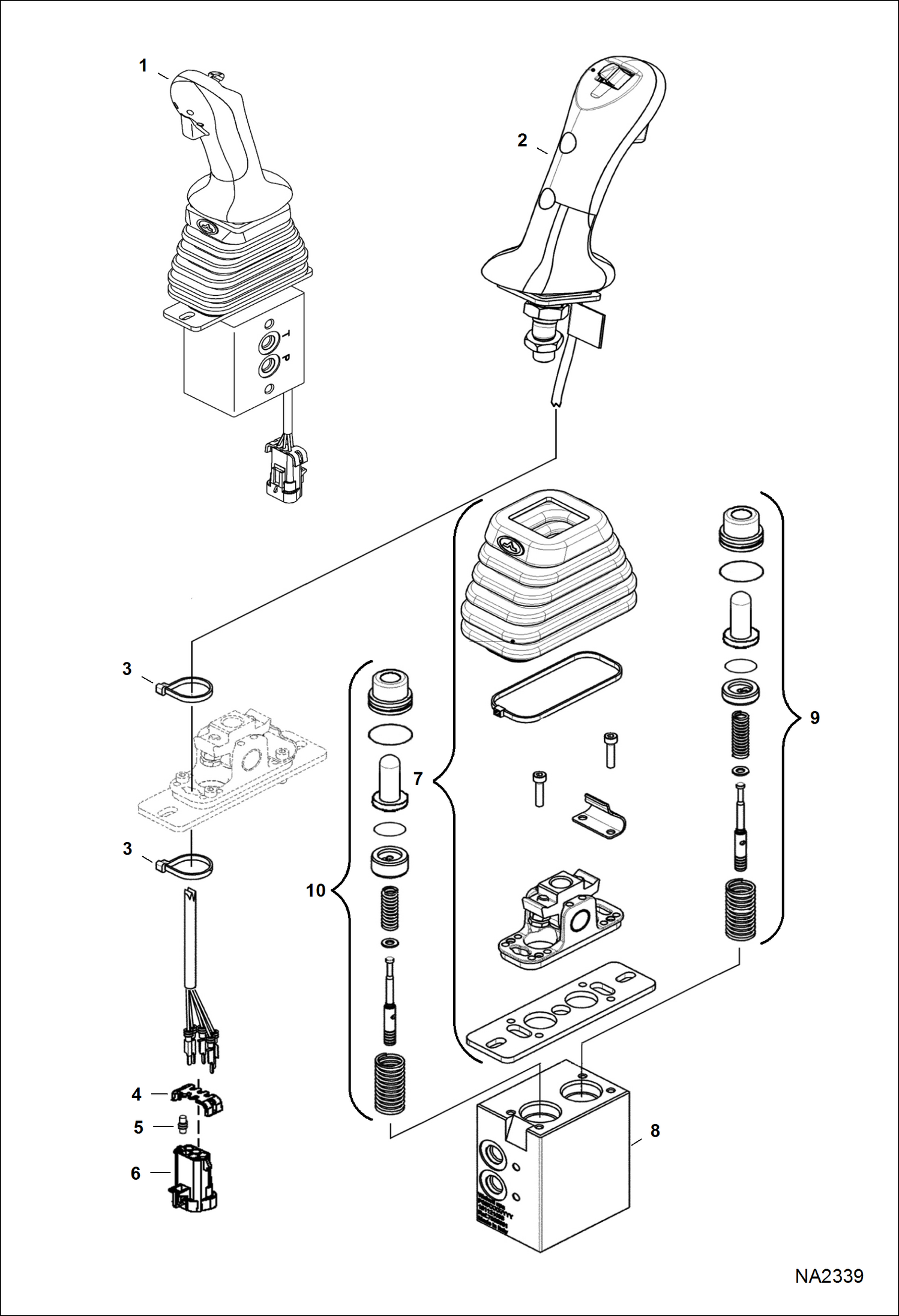

Схема запчастей Bobcat E35 - BLADE JOYSTICK (W/ Angle Blade) (S/N A93K11001 - 17999, AC2P11001 - 14999) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

JOYSTICK, BLADE See BTI397

1

6698142

JOYSTICK, BLADE

2

HANDLE, JOYSTICK See BTI397

2

7010557

HANDLE, JOYSTICK

3

6610510

TIE

4

6679958

LOCK 5 pin

4

7010550

LOCK 6 pin

5

7010551

PLUG

6

6679960

CONNECTOR 5 pin

6

7010552

CONNECTOR 6 pin

7

7010558

BASE, JOYSTICK

8

7010554

HOUSING, JOYSTICK

9

7010555

SPOOL, ACTUATOR ASSY

10

7010556

SPOOL, ACTUATOR ASSY

Выбрано товаров: 14
