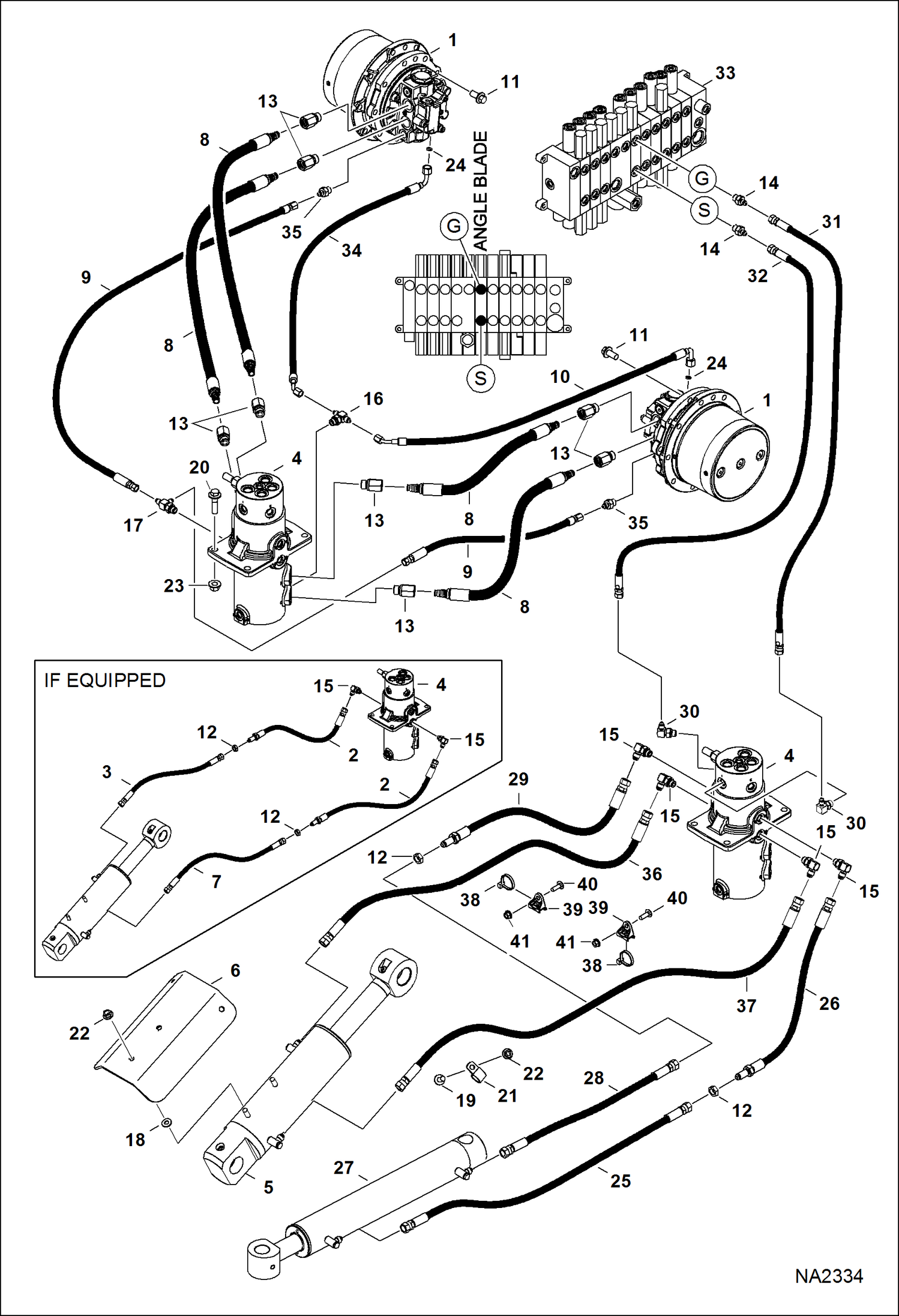

Запчасти Bobcat E35 HYDRAULIC CIRCUITRY (Lower)(W/ Angle Blade) HYDRAULIC SYSTEM

1

6698127

MOTOR, TRAVEL HYD See Illustration TRAVEL MOTOR/ NA2099

2

7143712

HOSE, HYD ASSY

3

7181886

HOSE, HYD Was 7143713 - A

4

7152908

SWIVEL, HYD ASSY See Illustration SWIVEL ASSY/ NA2346 - Use W/ angle blade option

5

BLADE CYLINDER See Illustration BLADE CYLINDER/ PE3923 - Was 7147780 - B

6

7188746

SHIELD, CYL Was 7151800 - A

7

7181887

HOSE, HYD Was 7156295 - A

8

7143709

HOSE, HYD ASSY Also Order Ref. 13

9

7143711

HOSE, HYD ASSY

10

7143710

HOSE, HYD ASSY

11

7162236

SCREW

12

86F5

NUT

13

15HB0808

FITTING Also Order hose

13

78K8

O RING

14

15KB0406

FTG HYD S CONNECTOR

14

15KB0606

FITTING, HYD CONNECTOR

14

79K6

O RING 10

15

17KB0606

FITTING

15

79K6

O RING 10

16

19KB0406

FITTING, HYD TEE

16

79K6

O RING 10

17

21KB0406

FTG HYD STRAIGHT TEE

17

79K6

O RING 10

18

25E17

WASHER 5

19

29CM1025

BOLT

20

29CM1250

BOLT Was 29CM1245 - B

21

30H46

CLIP

22

43DM10

NUT

23

51DM12

NUT

24

58K11

O RING 10

25

7188997

HOSE, HYD Was 7181908 - B,D

26

7143740

HOSE, HYD ASSY

27

CYLINDER, ANGLE BLADE See Illustration ANGLE BLADE CYLINDER/ PE3922

28

7181908

HOSE, HYD Was 7188997 - B,D

29

7174627

HOSE, HYD ASSY

30

17KB0406

FITTING, HYD ELBOW

30

17KB0606

FITTING

30

79K6

O RING 10

31

7164941

HOSE, HYD ASSY .438'' thread female ends

31

7181905

HOSE, HYD .563'' thread female ends

32

7164942

HOSE, HYD ASSY .438'' thread female ends

32

7181906

HOSE, HYD .563'' thread female ends

33

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA2338 - 10 section - W/ angle blade

34

7143710

HOSE, HYD ASSY 52'' (1321 mm) long

34

7156359

HOSE, HYD ASSY 47.5'' (1207 mm) long

35

15KB0406

FTG HYD S CONNECTOR

35

79K6

O RING 10
