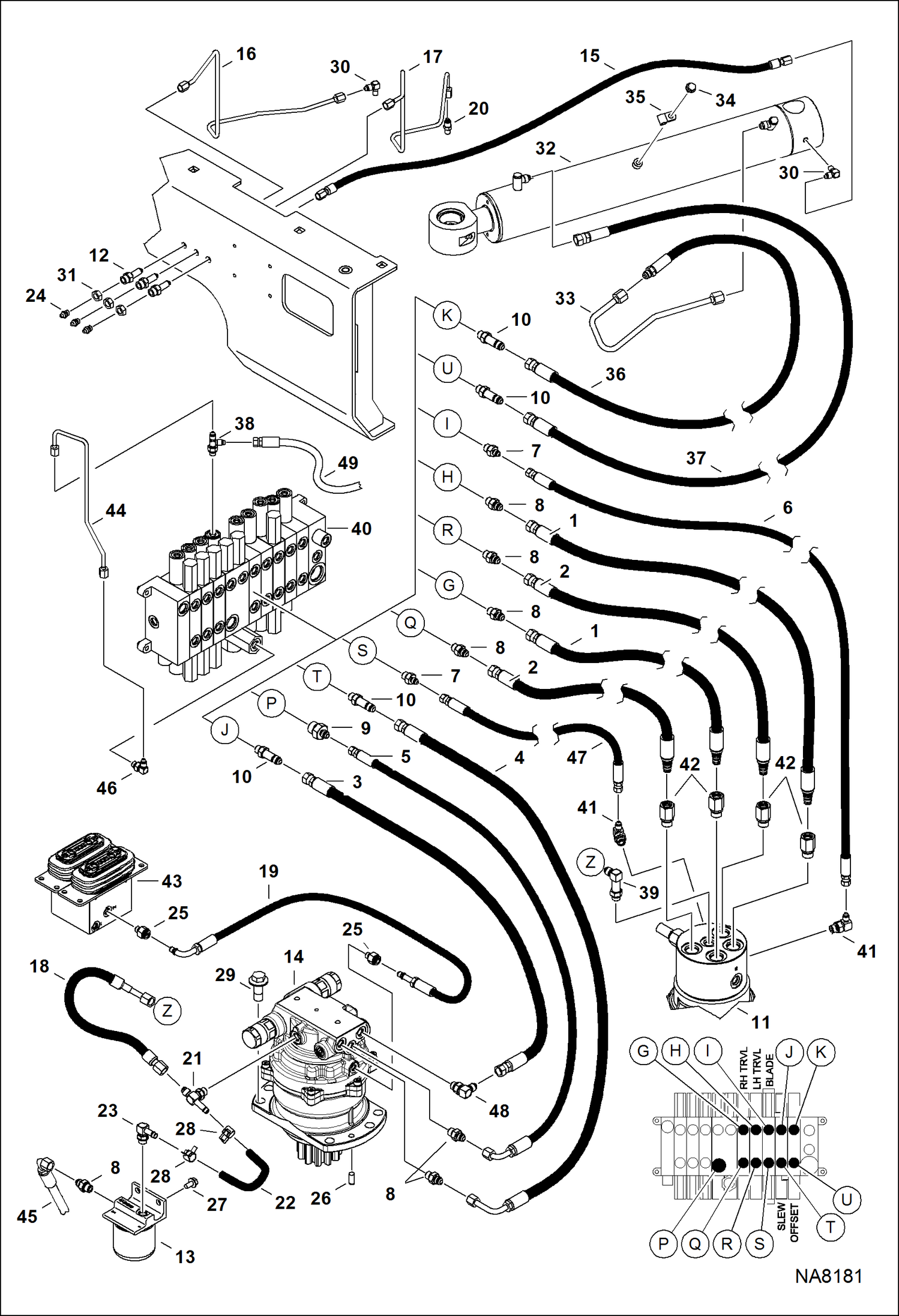

Запчасти Bobcat E35 HYDRAULIC CIRCUITRY (Upper/Swing)(Slew Motor W/O Timer Valve) (S/N A93K & Above, AC2P & Above) HYDRAULIC SYSTEM

1

7164943

HOSE, HYD ASSY 25'' (635 mm) long - W/ angle blade - Also Order Ref. 42

2

7164944

HOSE, HYD ASSY 23.25'' (591 mm) - W/ angle blade - Also Order Ref. 42

3

7181885

HOSE, HYD Was 7185229 - A

4

7185230

HOSE, HYD ASSY Was 7164950 - A

5

7185231

HOSE, HYD ASSY Was 7164951 - A

6

7181903

HOSE, HYD .563'' thread female ends

7

15KB0606

FITTING, HYD CONNECTOR

7

79K6

O RING 10

8

15KB0606

FITTING, HYD CONNECTOR

8

79K6

O RING 10

9

15KB0610

FITTING, HYD CONNECTOR

9

79K10

O RING 10

10

16KB0606

FTG HYD L CONNECTOR

10

79K6

O RING 10

11

7143734

SWIVEL, HYD ASSY See Illustration SWIVEL ASSY/ NA2262 - W/O angle blade

11

7152908

SWIVEL, HYD ASSY See Illustration SWIVEL ASSY/ NA2346 - Use W/ angle blade option

12

6807184

FITTING

13

7008929

FILTER, OIL HYD ASSY

13

7009365

FILTER, OIL HYD replacement filter

14

MOTOR, HYD SLEW See Illustration SLEW MOTOR/ NA8167

15

7145016

HOSE ASSY if equipped

16

7179648

TUBELINE, HYD

17

7179649

TUBELINE, HYD

18

7173436

HOSE, HYD ASSY

19

7230327

HOSE, HYD 90 degree end & 45 degree end

20

89F3

ADAPTOR

21

7174613

TEE

21

79K6

O RING 10

22

7174616

HOSE, HYD FORMED

23

7174807

ELBOW

23

79K6

O RING 10

24

10H25

FITTING, GREASE 5

25

10L0604

FITTING, HYD CONNECTOR

25

78K4

O'RING

25

7011053

CLIP

26

23JM1024

PIN HARDENED PARALLE

27

29CM820

SCREW Was 29CM816 - B

28

5HM15

CLAMP Was 5HM14 - B

29

60CM1640

SCREW

30

83F3

ELBOW 5

31

86F3

LOCKNUT

32

CYLINDER, BOOM SWING See Illustration BOOM SWING CYLINDER/ PE3897

33

7153457

TUBELINE, HYD

34

29CM812

BOLT

35

30H22

CLIP

36

7164755

HOSE, HYD ASSY

37

7164756

HOSE, HYD ASSY

38

21KB0404

FITTING, HYD TEE W/O load hold option

38

7229540

FITTING, CROSS W/ load hold option

38

79K4

O RING 10

39

6812815

FITTING

39

79K6

O RING 10

40

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA2295 - 9 section - W/O angle blade

40

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA2338 - 10 section - W/ angle blade

41

17KB0606

FITTING

41

79K6

O RING 10

42

15HB0808

FITTING Also Order hose

42

78K8

O RING

43

6697935

VALVE, PEDAL DUAL See Illustration TRAVEL CONTROLLER/ NA2307

44

7229214

TUBELINE, HYD

45

HOSE, HYD See Illustration HYDRAULIC CIRCUITRY/ NA2257

46

17KB0404

FTG HYD ELBOW 90

46

79K4

O RING 10

47

7181904

HOSE, HYD

48

17KB0606

FITTING

48

79K6

O RING 10

49

HOSE See Illustration HYDRAULIC CIRCUITRY/ NA2258 W/O JPS

49

HOSE See Illustration HYDRAULIC CIRCUITRY/ NA2259 W/JPS
