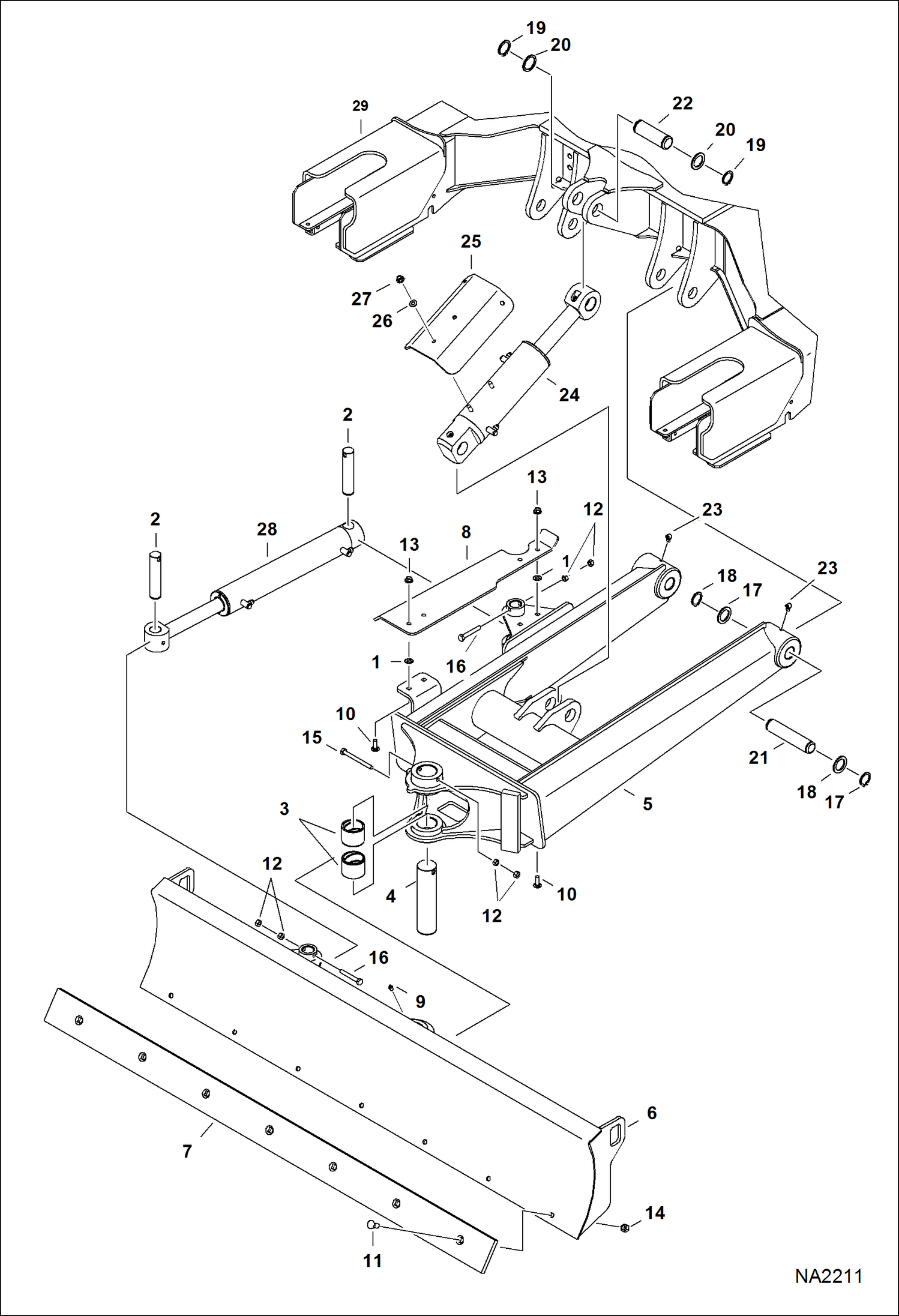

Запчасти Bobcat E35 ANGLE BLADE WORK EQUIPMENT

1

6674264

RETAINER NUT

2

6702935

PIN, PIVOT

3

7139166

BUSHING

4

7139167

PIN

5

7142232

BLADE, ANGLE FRAME W/A

6

7198565

BLADE, ANGLE EXC Was 7142233 - A

7

7142271

EDGE, CUTTING

8

7153741

GUARD, CYLINDER

9

10H25

FITTING, GREASE 5

10

28CM1030

BOLT

11

39C820

BOLT

12

4DM10

NUT

13

51DM10

NUT

14

63D8

NUT

15

7CM10110

SCREW

16

7CM1070

BOLT

17

6534111

WASHER

18

6534154

RING

19

6665618

RING

20

6666549

WASHER

21

7142311

PIN, PIVOT

22

7142313

PIN, PIVOT

23

12H15

FITTING, GREASE 5

24

CYLINDER, BLADE See Illustration BLADE CYLINDER/ PE3923

25

7188746

SHIELD, CYL Was 7151800 - A

26

25E17

WASHER 5

27

43DM10

NUT

28

CYLINDER, ANGLE BLADE See Illustration ANGLE BLADE CYLINDER/ PE3922

29

UNDERCARRIAGE See Illustration UNDERCARRIAGE/ NA2022
