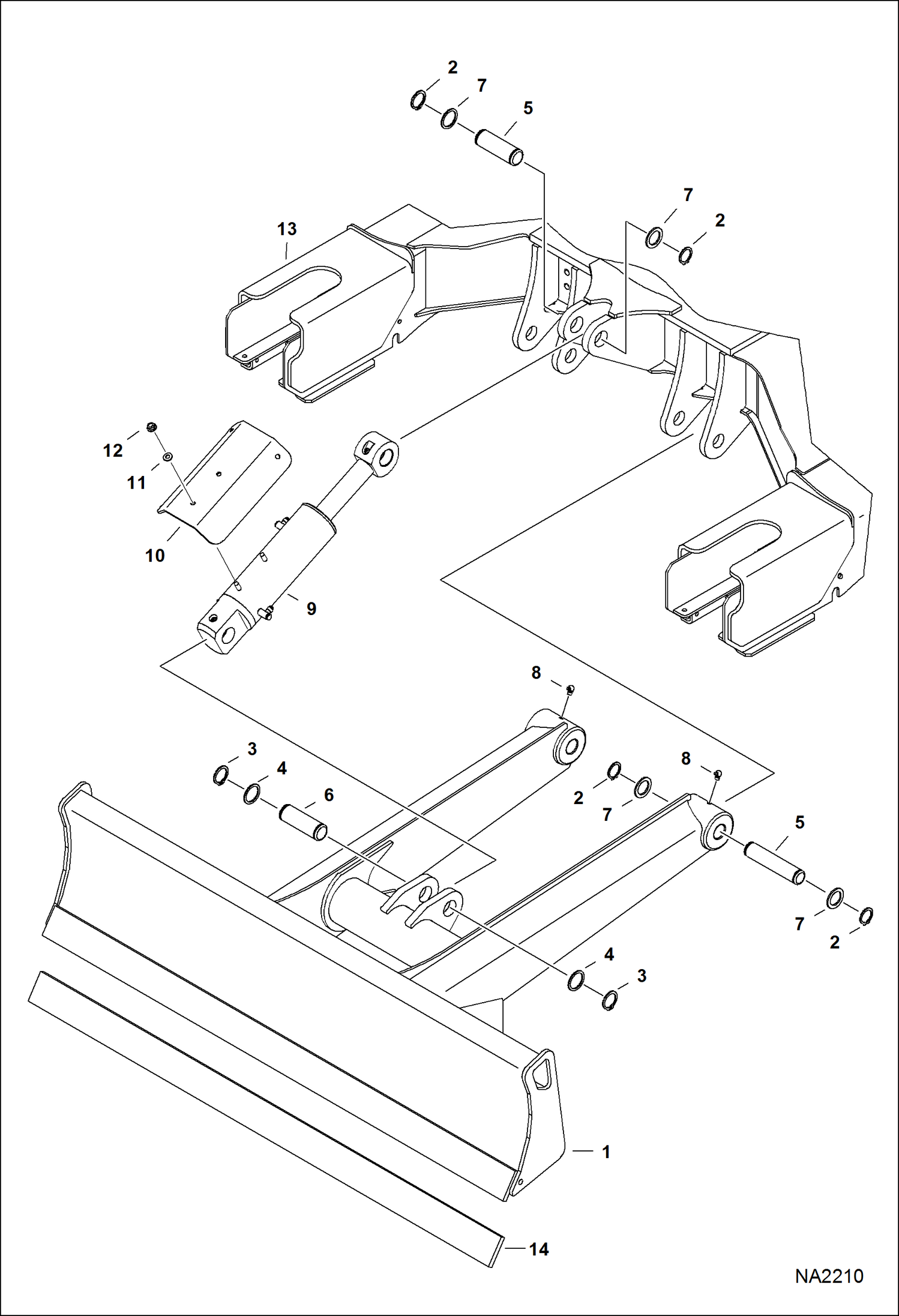

Запчасти Bobcat E35 BLADE WORK EQUIPMENT

1

7142231

BLADE, W/A W/Ref. 14

2

6534154

RING

3

6665618

RING

4

6666549

WASHER

5

7142311

PIN, PIVOT

6

7142313

PIN, PIVOT

7

6534111

WASHER

8

12H15

FITTING, GREASE 5

9

CYLINDER, BLADE See Illustration BLADE CYLINDER/ PE3923

10

7188746

SHIELD, CYL Was 7151800 - A

11

25E17

WASHER 5

12

43DM10

NUT

13

UNDERCARRIAGE See Illustration UNDERCARRIAGE/ NA2022

14

EDGE, CUTTING WELD ON 68.15'' See BTI417

14

7230283

EDGE, CUTTING BOLT-ON 68'' Was 7142263 - A
