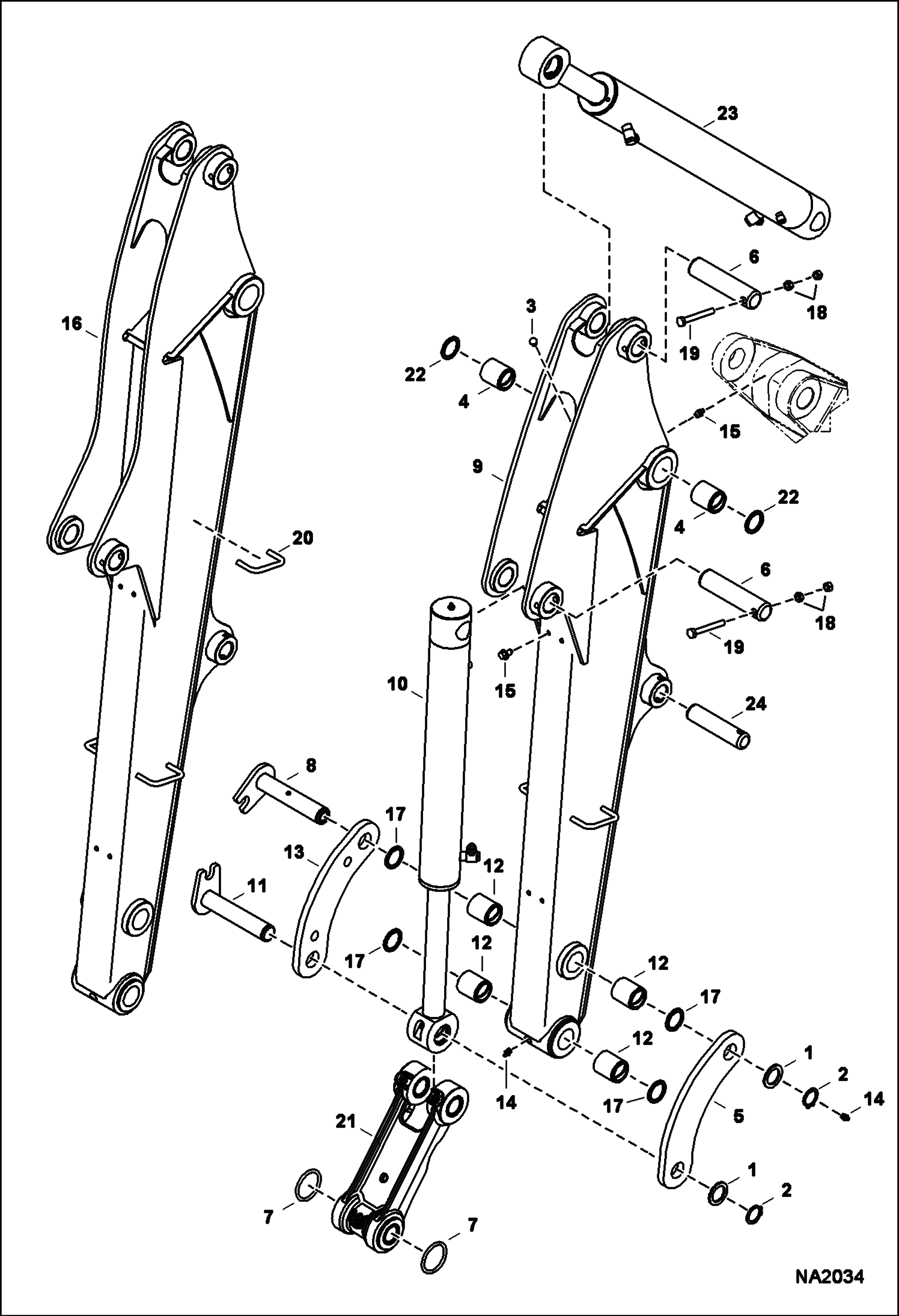

Запчасти Bobcat E35 ARM WORK EQUIPMENT

1

6534111

WASHER

2

6534154

RING

3

6597572

BUMPER

4

6628341

BUSHING, PRESS FIT Use W/pin W/10 mm dia cross bolt retaining hole

4

7172745

BUSHING, WEAR Use W/pin W/12 mm dia cross bolt retaining hole

5

7176031

LINK

6

7143009

PIN, PIVOT BOOM

7

7143561

O-RING 3.23'' (81,9 mm) ID

7

7143562

O-RING 2.73'' (69,2 mm) ID

8

7176090

PIN, W/A

9

ARM, DIPPER W/A EXC NLA - standard arm - Order 7180024 arm - Also Order Ref. 4, 7 (7143562 o-ring), 12, 17, & 22 - Was 7122546 - A

9

7180024

ARM, DIPPER W/A EXC standard arm - Also Order Ref. 4, 7 (7143562 o-ring), 12, 17, & 22

10

CYLINDER, BUCKET See Illustration BUCKET CYLINDER/ PE3928

11

7176092

PIN, W/A

12

7167301

BUSHING, WEAR

13

7176033

LINK

14

10H25

FITTING, GREASE 5

15

26GM10020

BOLT

16

ARM, DIPPER W/A EXC NLA - long arm - Order 7180025 arm - Was 7122547 - A

16

7180025

ARM, DIPPER W/A LONG EXC long arm - Also Order Ref. 4, 7 (7143562 o-ring), 12, 17, & 22

17

6652915

SEAL, OIL

18

43DM10

NUT

19

7CM1090

BOLT, HEX SOCKET

20

6586391

GUIDE weld-on

21

7154147

LINK, PIN-ON See Illustration BUCKET LINK/ NA2207 - not for extendable arm

22

6669287

SEAL

23

CYLINDER, ARM See Illustration ARM CYLINDER/ NA2242

24

PIN see clamp attachment
