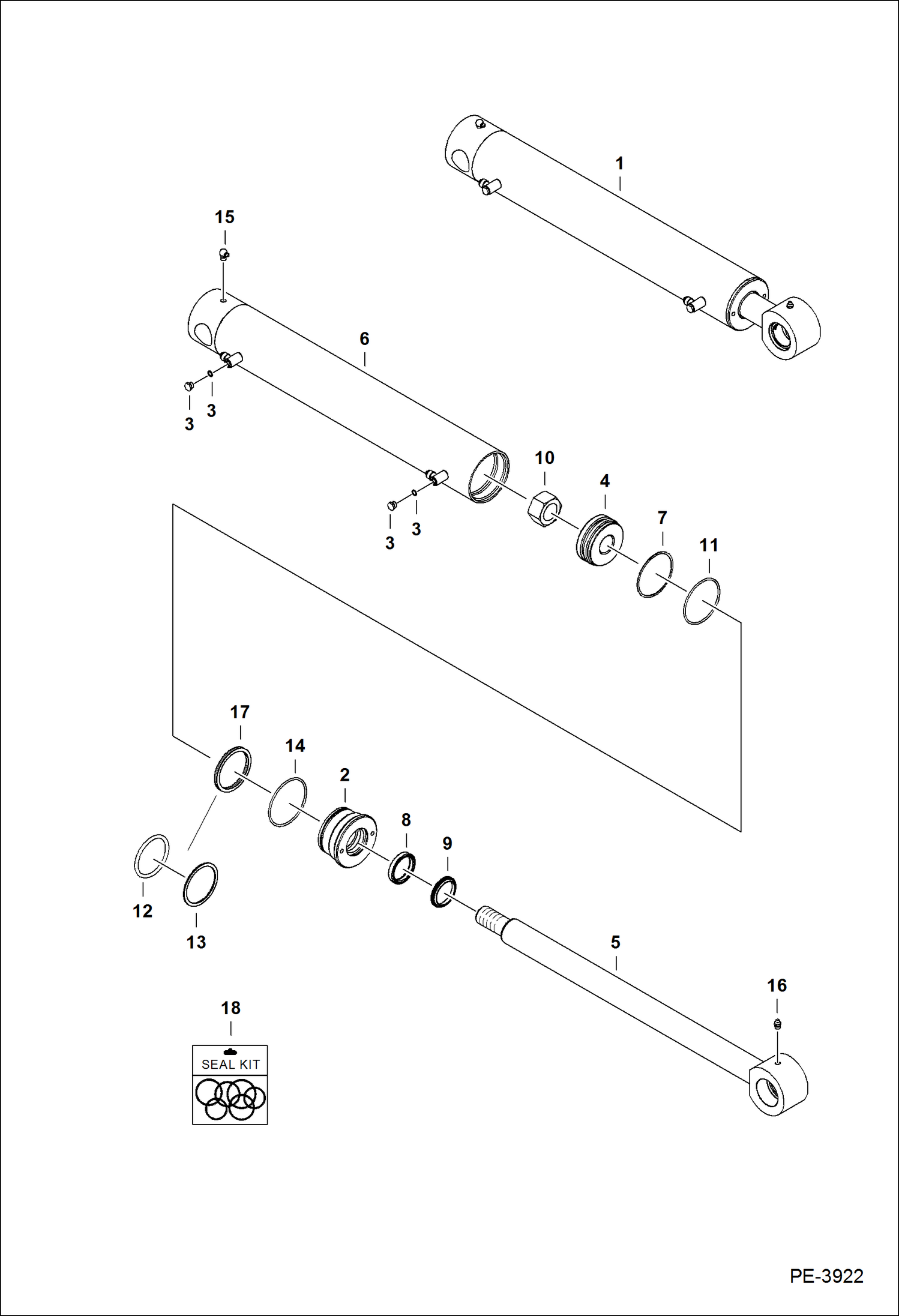

Запчасти Bobcat E35 ANGLE BLADE CYLINDER HYDRAULIC SYSTEM

1

7153416

CYLINDER, ASSY Ref. 2-14 - Also Order Ref. 15 & 16

2

6806124

HEAD

3

6812170

PLUG W/ O-ring

3

75K3

O-RING

4

6815011

PISTON

5

7153419

SHAFT, W/A Also Order Ref. 16

6

7153418

TUBE, ASSY W/Ref. 3 & 14 - Also Order Ref. 15

7

1522534

SEAL

8

6667326

SEAL

9

6690707

WIPER, ROD CYL

10

6810539

NUT

11

25K30202

O RING 10

12

25K40208

O RING 10

13

73K228

BACK-UP RING

14

82K230

O-RING

15

12H15

FITTING, GREASE 5

16

10H25

FITTING, GREASE 5

17

7008778

SEAL, QUAD

18

7135559

SEAL KIT Ref. 7-11, 14, & 17
