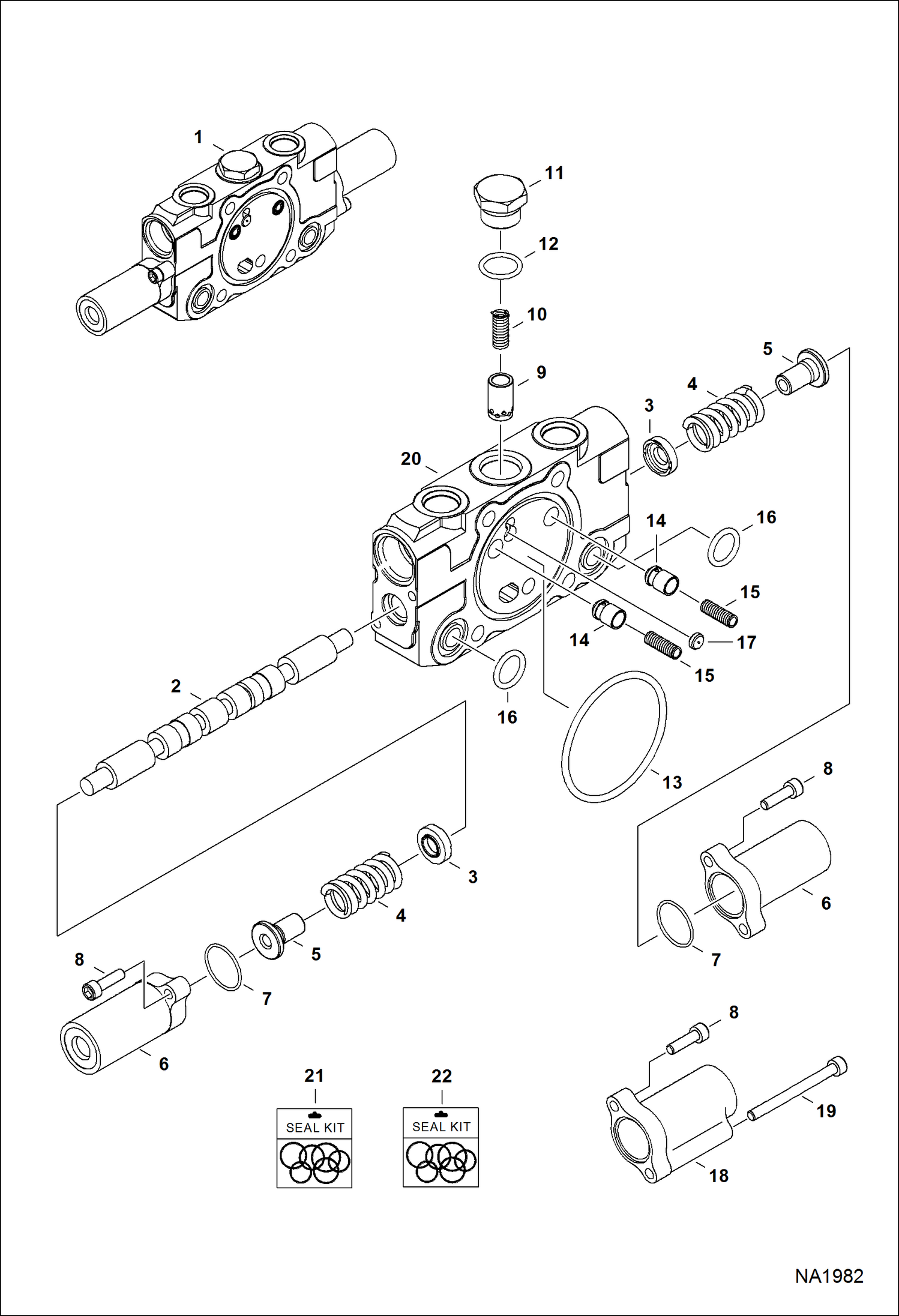

Запчасти Bobcat E32 HYDRAULIC CONTROL VALVE (Arm Section) HYDRAULIC SYSTEM

1

7012693

SECTION, VALVE Ref. 2-17 & 20 - Also Order 7197061 hose and 6812864 tee if machine had Ref. 18 (dual port cap 7012724) and arm load hold option

2

SPOOL NSS

3

7012713

SEAT, SPRING

4

7012714

SPRING, VALVE

5

7012715

SEAT, SPRING

6

7012716

CAP, END single port

7

7012717

O-RING

8

7012718

BOLT

9

SPOOL NSS

10

7012719

SPRING, VALVE

11

7012720

PLUG

12

7012721

O-RING

13

7012708

O-RING

14

7012722

POPPET

15

7012723

SPRING, VALVE

16

7012710

O-RING

17

VALVE, SHUTTLE NSS

18

7012724

CAP, END dual port W/plug

19

7012725

BOLT

20

HOUSING, VALVE NSS

21

7012777

KIT, SEAL Ref. 13 & 16

22

7020609

KIT, SEAL Ref. 7 & 12 - this is a standard seal kit some seals may not be used - Was 7012776 - A
