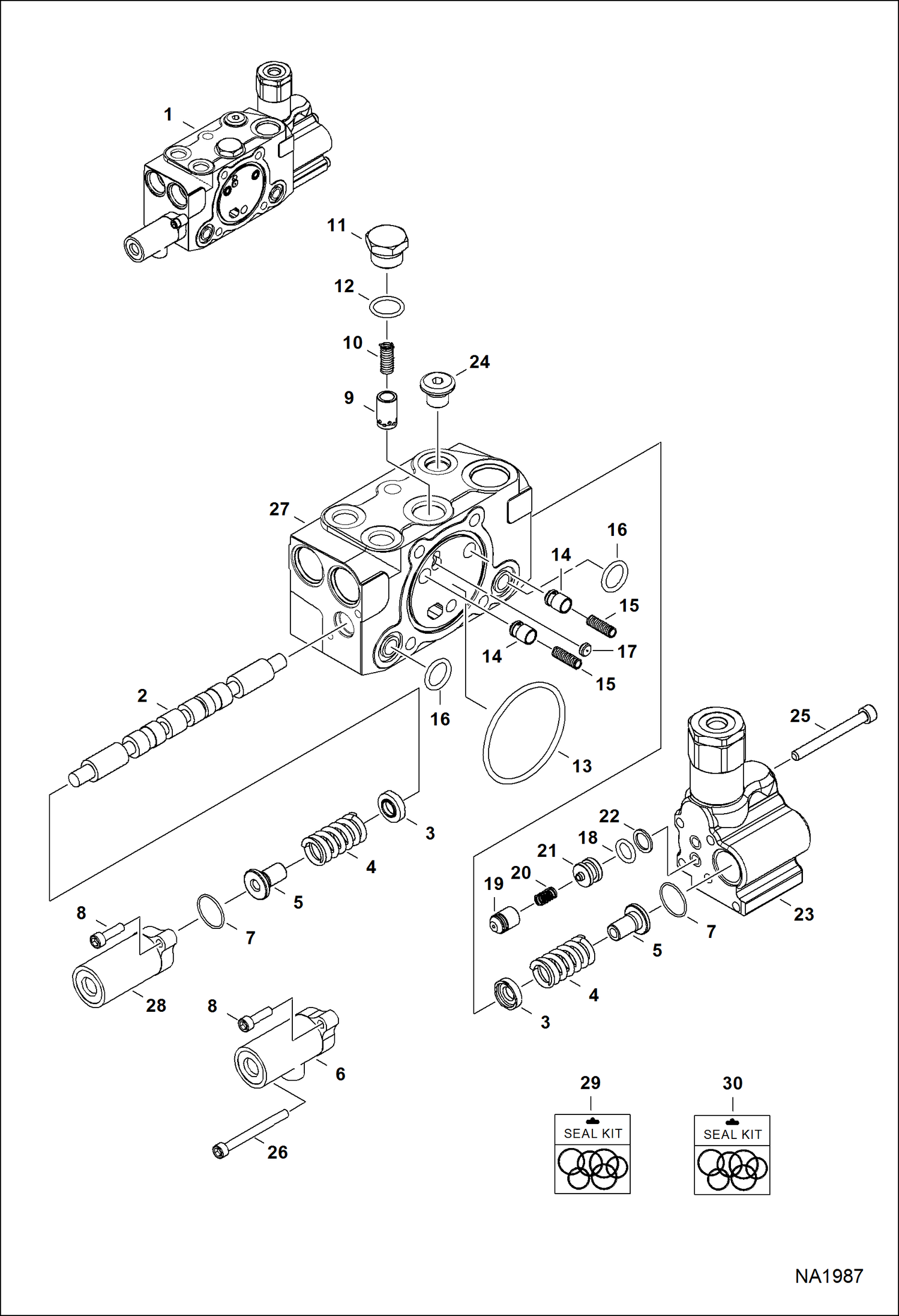

Запчасти Bobcat E32 HYDRAULIC CONTROL VALVE (Boom Section) HYDRAULIC SYSTEM

1

7012691

SECTION, VALVE boom - Ref. 2-27

1

7028569

SECTION, VALVE boom - Ref. 2-5 & 7-28

2

SPOOL NSS

3

7012713

SEAT, SPRING

4

7012714

SPRING, VALVE

5

7012715

SEAT, SPRING

6

7012724

CAP, END dual port

7

7012717

O-RING

8

7012718

BOLT

9

SPOOL NSS

10

7012719

SPRING, VALVE

11

7012720

PLUG

12

7012721

O-RING

13

7012708

O-RING

14

7012722

POPPET

15

7012723

SPRING, VALVE

16

7012710

O-RING

17

VALVE, SHUTTLE NSS

18

6670224

O-RING

19

POPPET NSS

20

SPRING NSS

21

SPACER NSS

22

7012731

RING, BACK-UP

23

7012758

VALVE, ANTI DRIFT

24

7012709

PLUG

25

7012759

BOLT

26

7012725

BOLT

27

HOUSING, VALVE NSS

28

7012716

CAP, END

29

7012777

KIT, SEAL Ref. 13 & 16

30

7020609

KIT, SEAL Ref. 7, 12, 18, & 22 - this is a standard seal kit some seals may not be used - Was 7012776 - A
