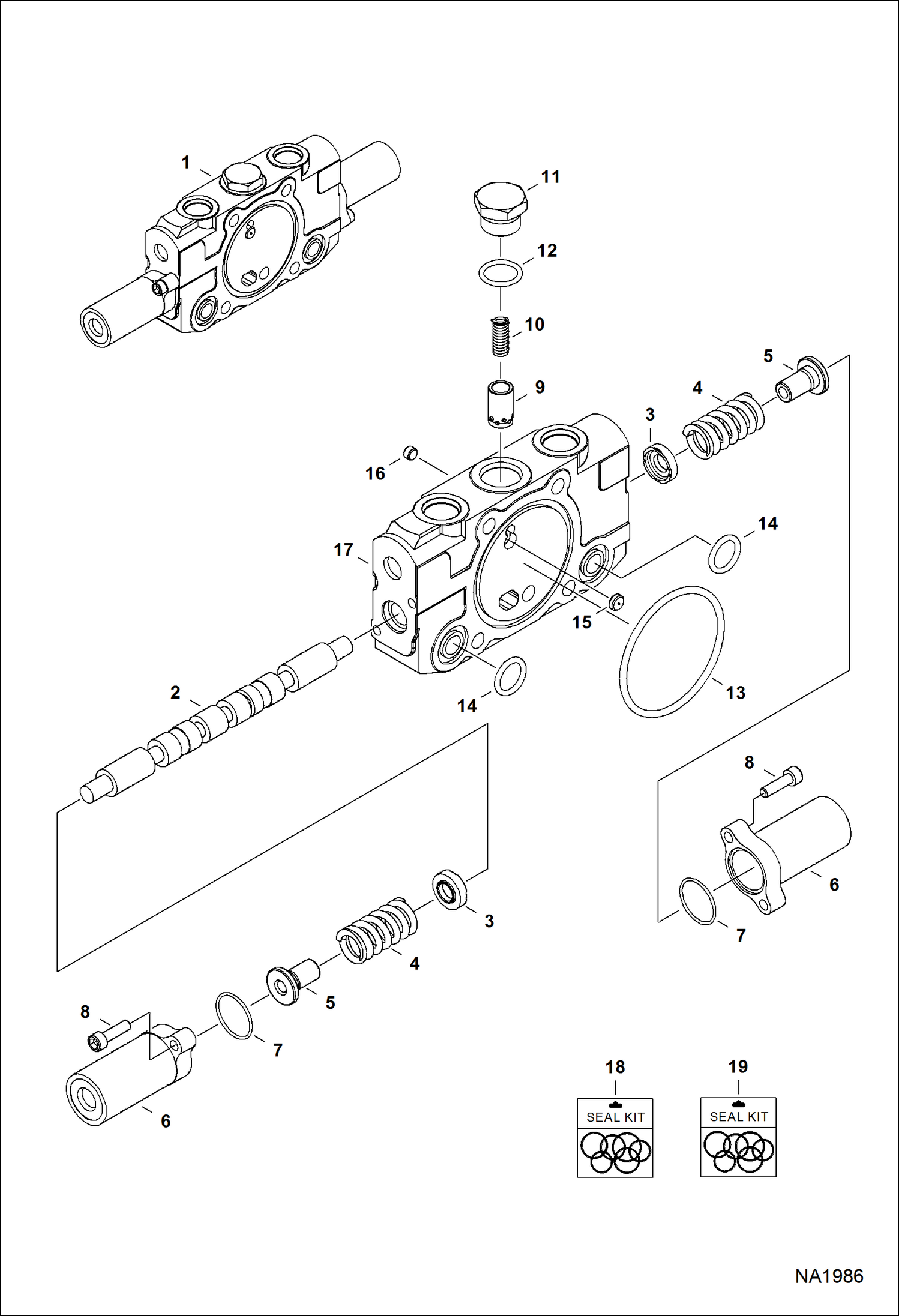

Запчасти Bobcat E32 HYDRAULIC CONTROL VALVE (RH Travel Section) HYDRAULIC SYSTEM

1

7012690

SECTION, VALVE RH travel - Ref. 2-17

2

SPOOL NSS

3

7012713

SEAT, SPRING

4

7012714

SPRING, VALVE

5

7012715

SEAT, SPRING

6

7012716

CAP, END

7

7012717

O-RING

8

7012718

BOLT

9

SPOOL NSS

10

7012719

SPRING, VALVE

11

7012720

PLUG

12

7012721

O-RING

13

7012708

O-RING

14

7012710

O-RING

15

VALVE, SHUTTLE NSS

16

7012730

PLUG

17

HOUSING, VALVE NSS

18

7012777

KIT, SEAL Ref. 13 & 14

19

7020609

KIT, SEAL Ref. 7 & 12 - this is a standard seal kit some seals may not be used - Was 7012776 - A
