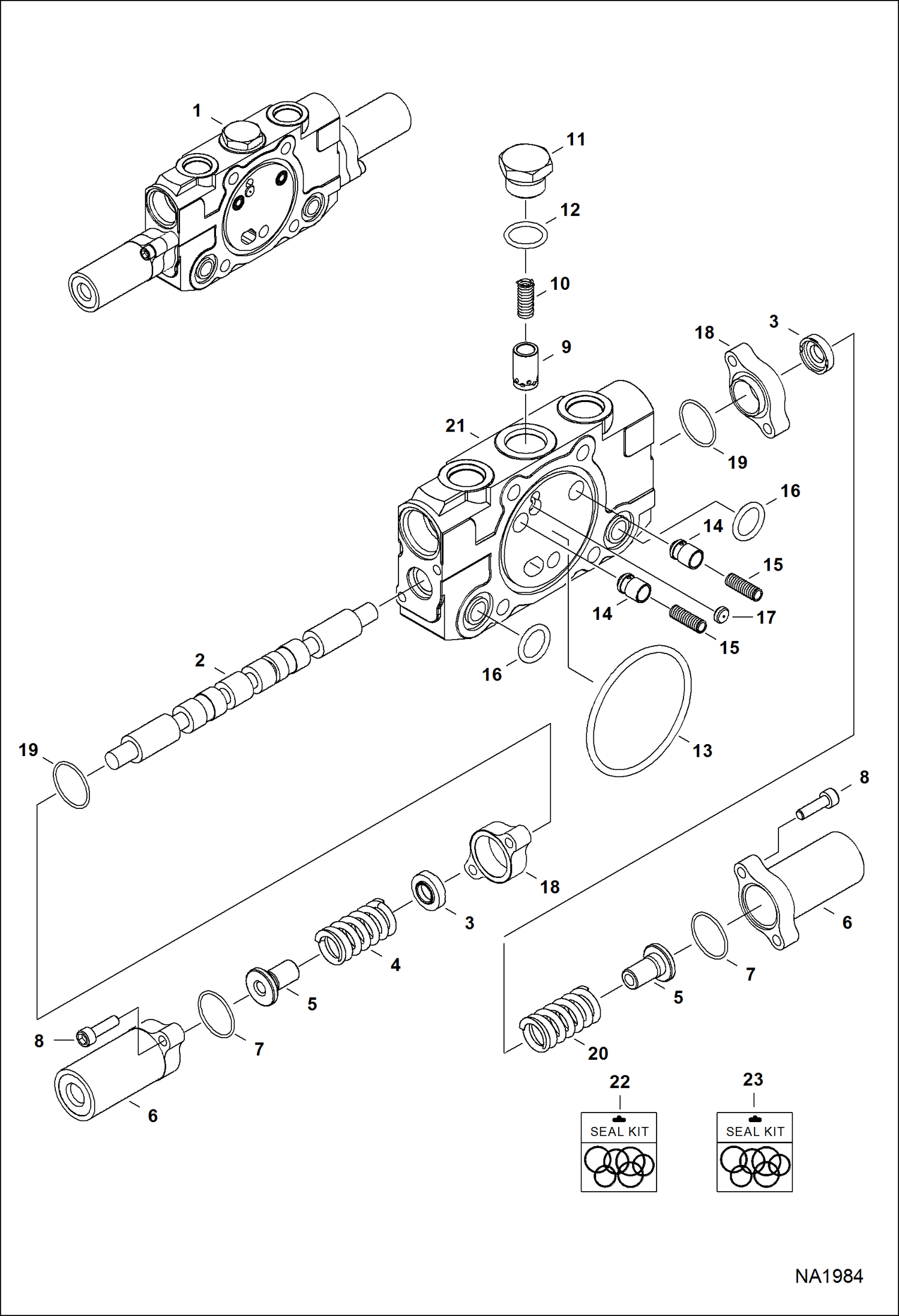

Запчасти Bobcat E32 HYDRAULIC CONTROL VALVE (Blade Section) HYDRAULIC SYSTEM

1

7012688

SECTION, VALVE blade - Ref. 2-21

2

SPOOL NSS

3

7012713

SEAT, SPRING

4

7012726

SPRING, VALVE

5

7012715

SEAT, SPRING

6

7012716

CAP, END

7

7012717

O-RING

8

7012718

BOLT

9

SPOOL NSS

10

7012719

SPRING, VALVE

11

7012720

PLUG

12

7012721

O-RING

13

7012708

O-RING

14

7012722

POPPET

15

7012723

SPRING, VALVE

16

7012710

O-RING

17

VALVE, SHUTTLE NSS

18

7012727

SPACER

19

7012728

O-RING

20

7012729

SPRING, VALVE

21

HOUSING, VALVE NSS

22

7012777

KIT, SEAL Ref. 13 & 16

23

7020609

KIT, SEAL Ref. 7, 12, & 19 - this is a standard seal kit some seals may not be used - Was 7012776 - A
