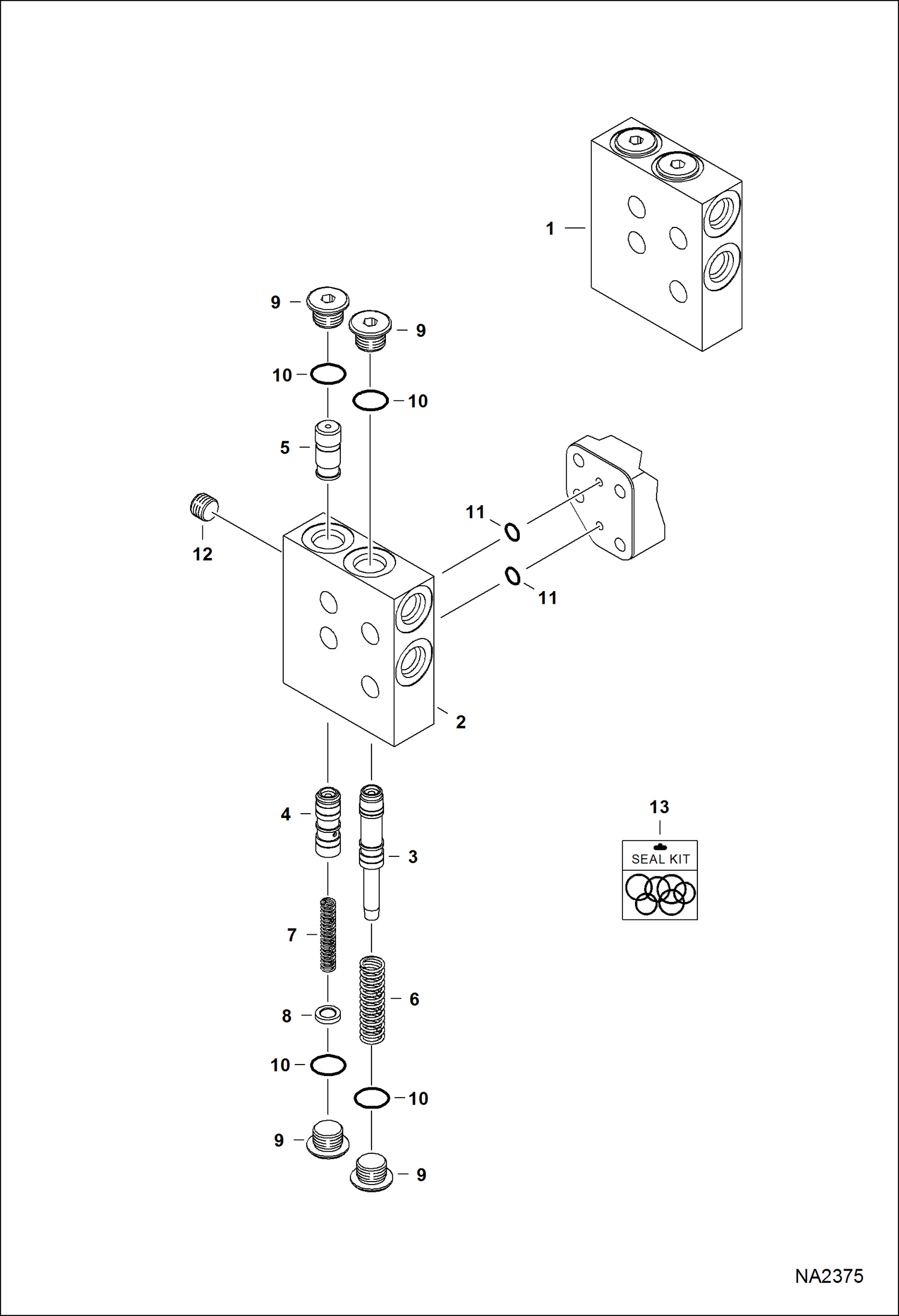

Запчасти Bobcat E32 SLEW MOTOR (Counter Balance Valve) HYDRAULIC SYSTEM

1

7010821

VALVE, COUNTER BALANCE Ref. 2-13 - timer valve

2

HOUSING NSS

3

SPOOL NSS

4

PISTON NSS

5

STOPPER NSS

6

SPRING NSS

7

SPRING NSS

8

SPRING HOLDER NSS

9

7010817

PLUG

10

7010811

O-RING

11

6688538

O-RING .41'' OD

12

7010818

PLUG

13

7010830

KIT, SEAL Ref. 10 & 11
