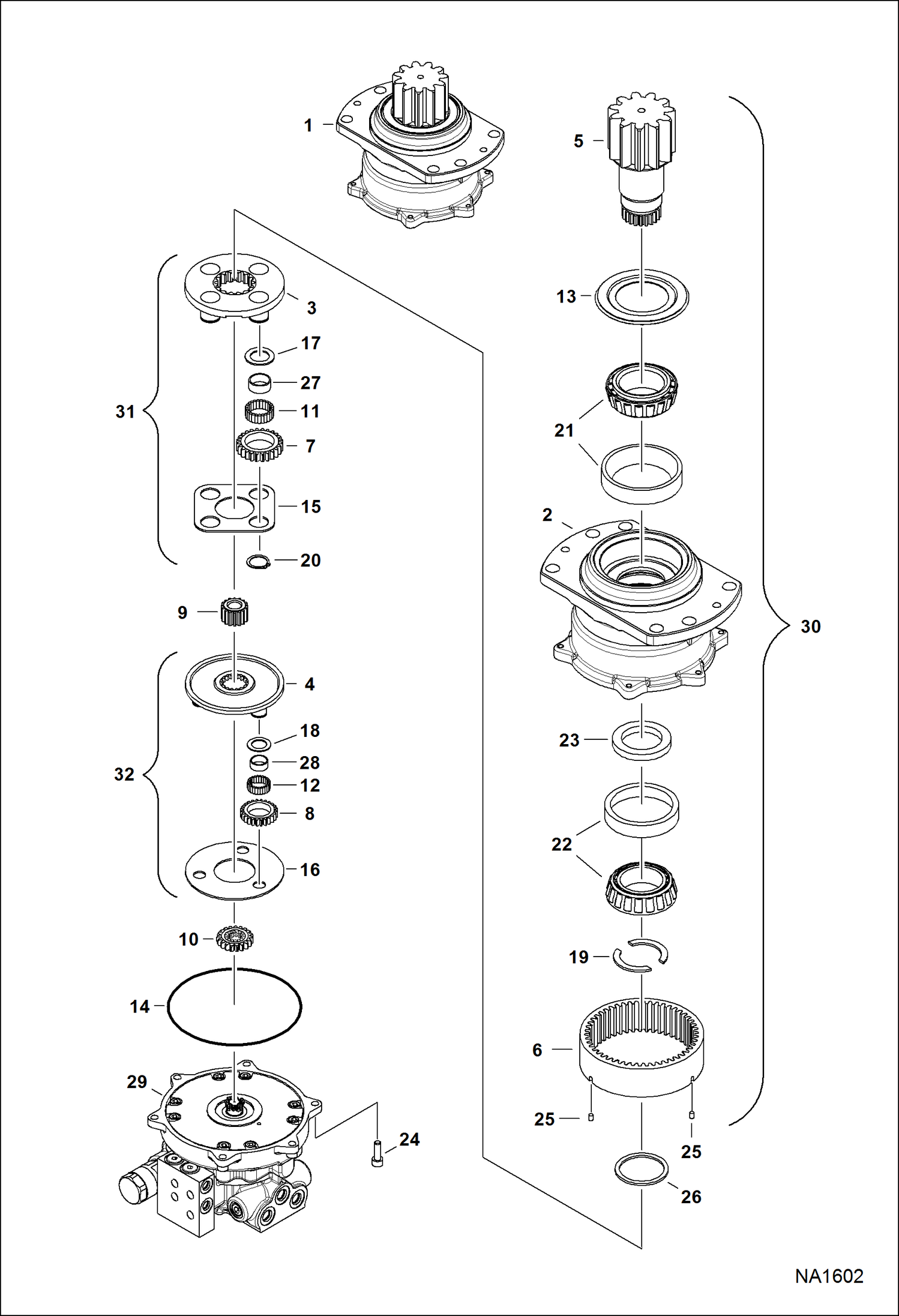

Запчасти Bobcat E32 SLEW MOTOR (Carrier) HYDRAULIC SYSTEM

1

CARRIER, MOTOR See Illustration SLEW MOTOR/ NA2309 NLA - Ref. 2-28 - Order complete motor - Was 7010794 - A

2

HOUSING NSS

3

CARRIER NSS

4

CARRIER NSS

5

PINION SHAFT NSS

6

GEAR NSS

7

GEAR NSS

8

GEAR NSS

9

7010795

GEAR, SHAFT

10

7010796

GEAR, DRIVEN

11

NEEDLE NSS

12

NEEDLE NSS

13

RING SEAL NSS

14

7010797

O-RING

15

THRUST PLATE NSS

16

THRUST PLATE NSS

17

THRUST WASHER NSS

18

THRUST WASHER NSS

19

COLLAR NSS

20

7010798

RING, SNAP

21

BEARING NSS

22

BEARING NSS

23

SEAL NSS

24

7010799

SCREW

25

PIN NSS

26

7010800

RING, SPACER

27

RING NSS

28

RING NSS

29

MOTOR, HYD SLEW See Illustration SLEW MOTOR/ NA2309

30

7010822

KIT, PINION Ref. 2, 5, 6, 13, 19, 21-23, & 25

31

7010823

KIT, CARRIER Ref. 3, 7, 11, 15, 17, 20, & 27

32

7010824

KIT, CARRIER Ref. 4, 8, 12, 16, 18, & 28
