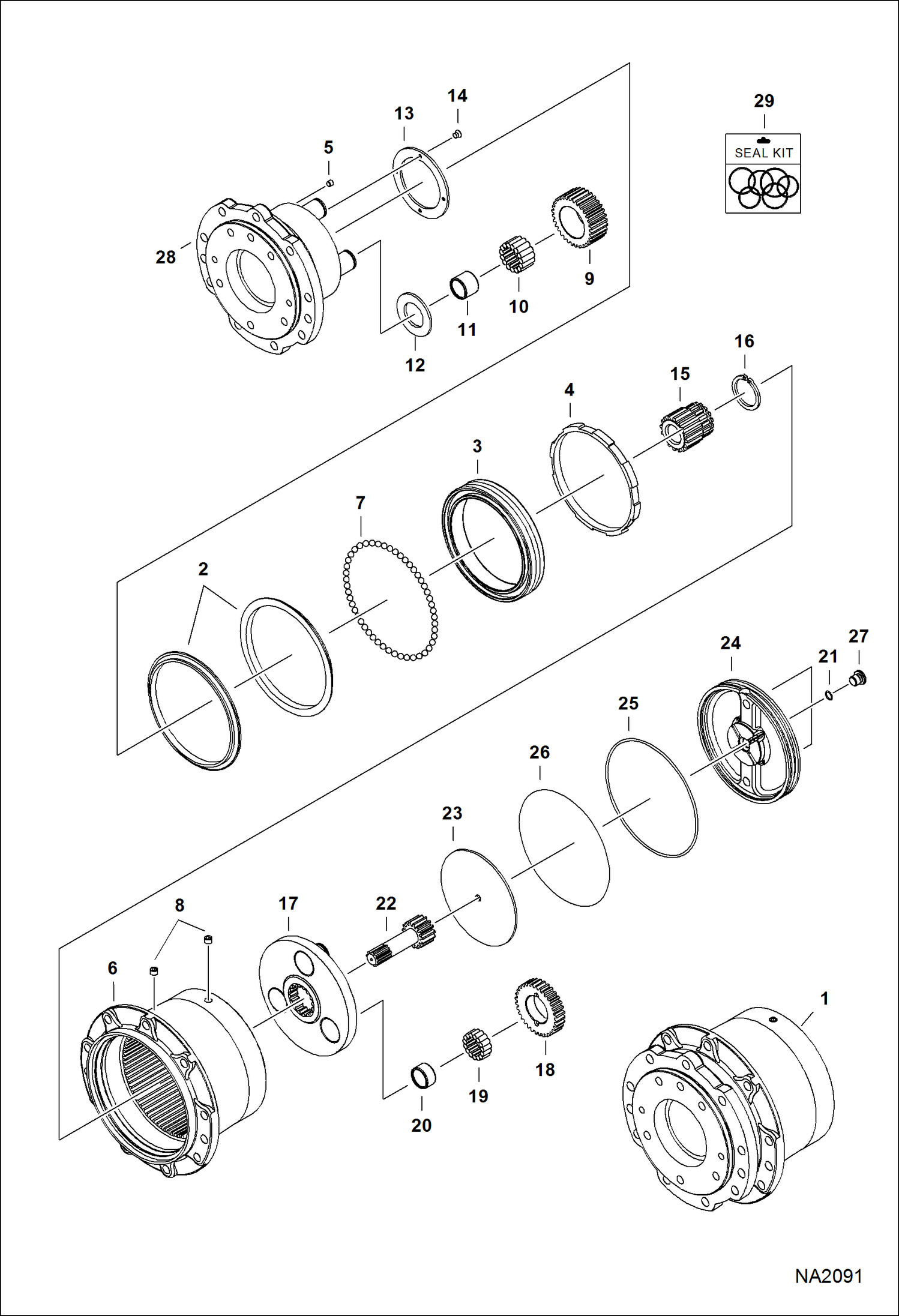

Запчасти Bobcat E32 TRAVEL MOTOR (Gear Box) HYDRAULIC SYSTEM

1

7009157

GEAR, BOX Includes Refs. 2-28

2

7009158

SEAL, FLOATING

3

7009159

BEARING, ANGULAR

4

7009160

NUT, RING

5

7009161

PLUG

6

HOUSING NLA - Order Ref. 1

7

7009162

BALL, STEEL

8

7009163

PLUG

9

7009164

GEAR, PLANETARY Was 7009165 - D

10

7009165

BEARING, NEEDLE Was 7009164 - D

11

7009166

RACE, INNER

12

7009167

WASHER, THRUST

13

7009209

PLATE, THRUST

14

7009210

SCREW

15

7009168

GEAR

16

6655364

SNAP RING

17

7009169

HOLDER

18

7009170

GEAR, PLANETARY

19

7009171

BEARING, NEEDLE

20

7009172

RACE, INNER

21

7009180

O-RING

22

7009173

GEAR, DRIVE

23

7009174

PLATE, THRUST 1.8mm

23

7009175

PLATE, THRUST 2.3mm

23

7009176

PLATE, THRUST 2.8mm

24

7009177

COVER

25

O-RING NLA - Order Ref. 29 - Was 7009178 - A

26

WIRE NLA - lock - Was 6655376 - A

27

7009179

PLUG

28

HOLDER, FLANGE NLA - Order Ref. 1

29

7009213

SEAL KIT Includes Refs. 2, 21 & 25 on this Ill. and Refs. 4, 23, 27-29, 32 & 38 on Ill NA2096, and Refs. On Ill NA2099
