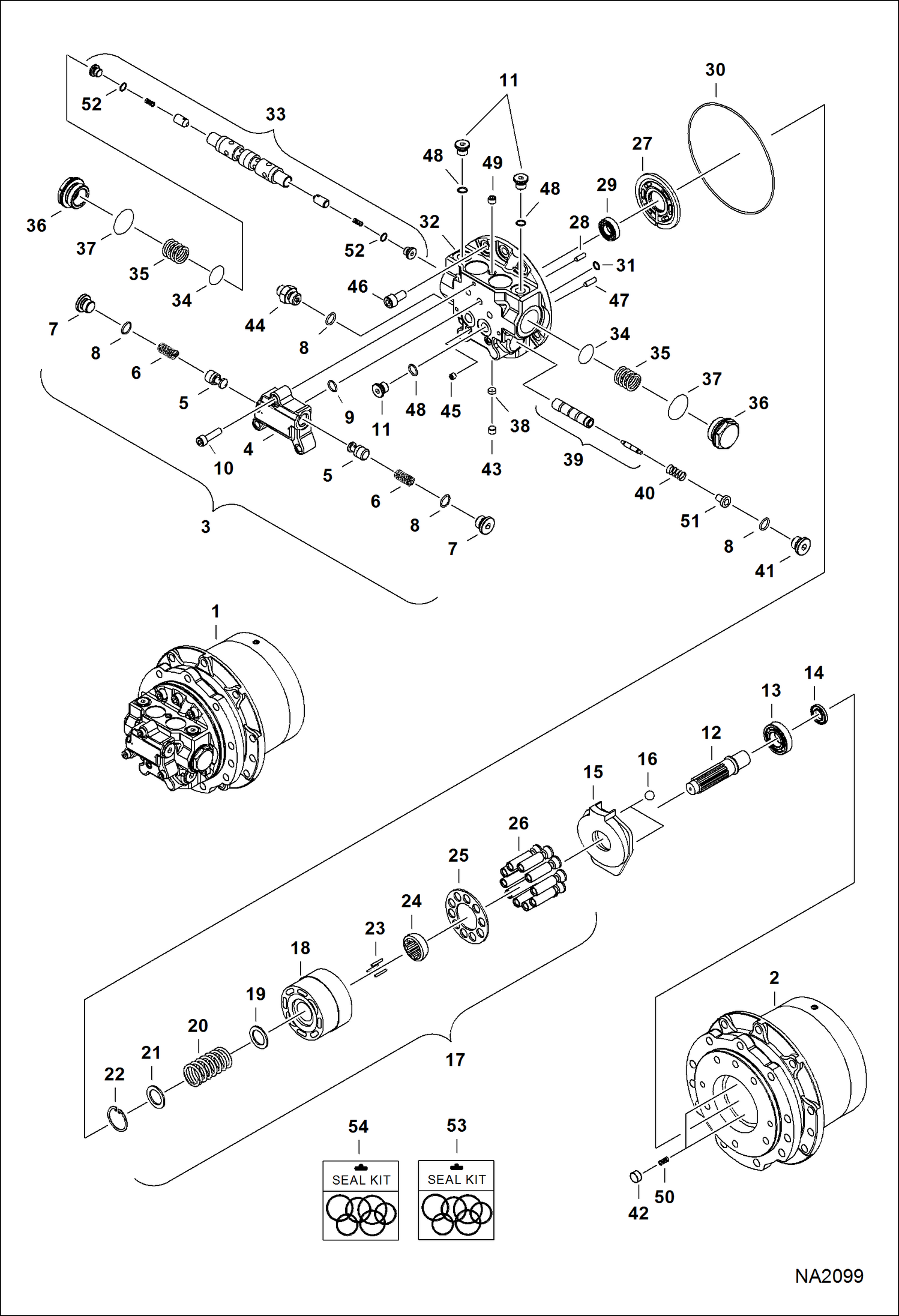

Запчасти Bobcat E32 TRAVEL MOTOR (Assembly) HYDRAULIC SYSTEM

1

6698127

MOTOR, TRAVEL HYD

2

7009157

GEAR, BOX See Illustration TRAVEL MOTOR/ NA2091

3

7009203

VALVE ASSY Includes Refs. 4-10

4

BODY VALVE NLA - Order Ref. 3

5

CHECK VALVE NLA - Order Ref. 3

6

SPRING NLA - Order Ref. 3

7

PLUG NLA - Order Ref. 3

8

7009198

O-RING

9

O-RING NLA - Order Ref. 53 - Was 7009204 - A

10

7009205

BOLT

11

7009179

PLUG

12

7009181

SHAFT

13

7009182

BEARING, BALL

14

SEAL, OIL NLA - Order Ref. 53 - Was 7009183 - A

15

7009184

PLATE, SWASH

16

7009185

BALL, STEEL

17

7009207

KIT, BLOCK CYLINDER Includes Refs. 18-26

18

BLOCK, CYLINDER NLA - Order Ref. 17

19

SEAT, SPRING NLA - Order Ref. 17

20

SPRING NLA - Order Ref. 17

21

WASHER NLA - Order Ref. 17

22

SNAP RING NLA - Order Ref. 17

23

PIN NLA - Order Ref. 17

24

HOLDER, RETAINER NLA - Order Ref. 17

25

PLATE, RETAINER NLA - Order Ref. 17

26

PISTON ASSY NLA - Order Ref. 17

27

7009188

PLATE, VALVE

28

6653018

PIN

29

6653064

BEARING

30

O-RING NLA - Order Ref. 53 - Was 7009189 - A

31

O-RING NLA - Order Ref. 53 - Was 7009190 - A

32

PLATE, BASE NLA - Order Ref. 54

33

SPOOL ASSY NLA - Order Ref. 54

34

7009191

SEAT, SPRING

35

7009192

SPRING

36

7009193

CAP

37

O-RING NLA - Order Ref. 53 - Was 7009194 - A

38

7009195

ORIFICE

39

SPOOL NLA - Order Ref. 52

40

7009196

SPRING

41

7009197

PLUG

42

7009187

SPRING

43

7009199

PLUG

44

7009200

PLUG

45

PLUG NLA - Order Ref. 40

46

7009201

BOLT

47

7009202

PIN

48

O-RING NLA - Order Ref. 53 - Was 7009180 - A

49

7009163

PLUG

50

7009186

PISTON

51

7009206

PLUG

52

6670221

O-RING Was 6657167 - A

53

7009213

SEAL KIT Includes Refs. 8, 9, 14, 30, 31, 37, 48 & 52 on this Ill. and Refs. 2, 21 & 25 on Ill NA2091

54

7009208

KIT, PLATE BASE Includes Refs. 32, 33, 39 & 50
