Запчасти Bobcat E32 TRAVEL CONTROLLER (Dual Pedal Valve) HYDRAULIC SYSTEM

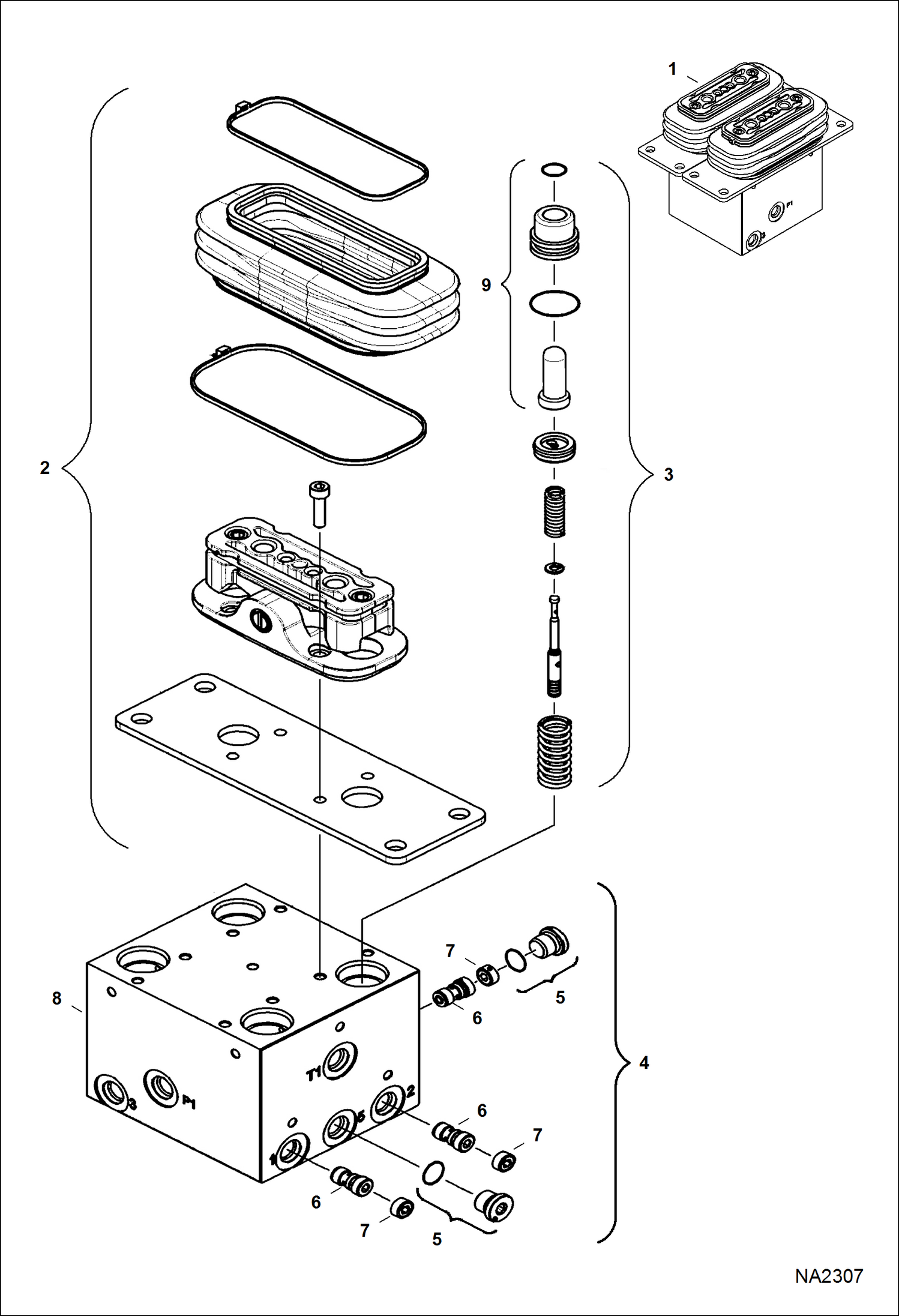

Схема запчастей Bobcat E32 - TRAVEL CONTROLLER (Dual Pedal Valve) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6697935

VALVE, PEDAL DUAL Ref. 2-9

2

7012019

BASE, JOYSTICK

3

7012020

SPOOL, ACTUATOR ASSY

4

7012021

HOUSING, JOYSTICK Ref. 5-8

5

6686236

PLUG

6

6685332

SPOOL

7

7012022

PLUG

8

HOUSING NSS - Order Ref. 4

9

7018015

KIT, PLUNGER

Выбрано товаров: 9
