RH JOYSTICK (S/N A94H17001 & Above, AC2N15001 & Above)

Запчасти Bobcat E32 RH JOYSTICK (S/N A94H17001 & Above, AC2N15001 & Above) HYDRAULIC SYSTEM

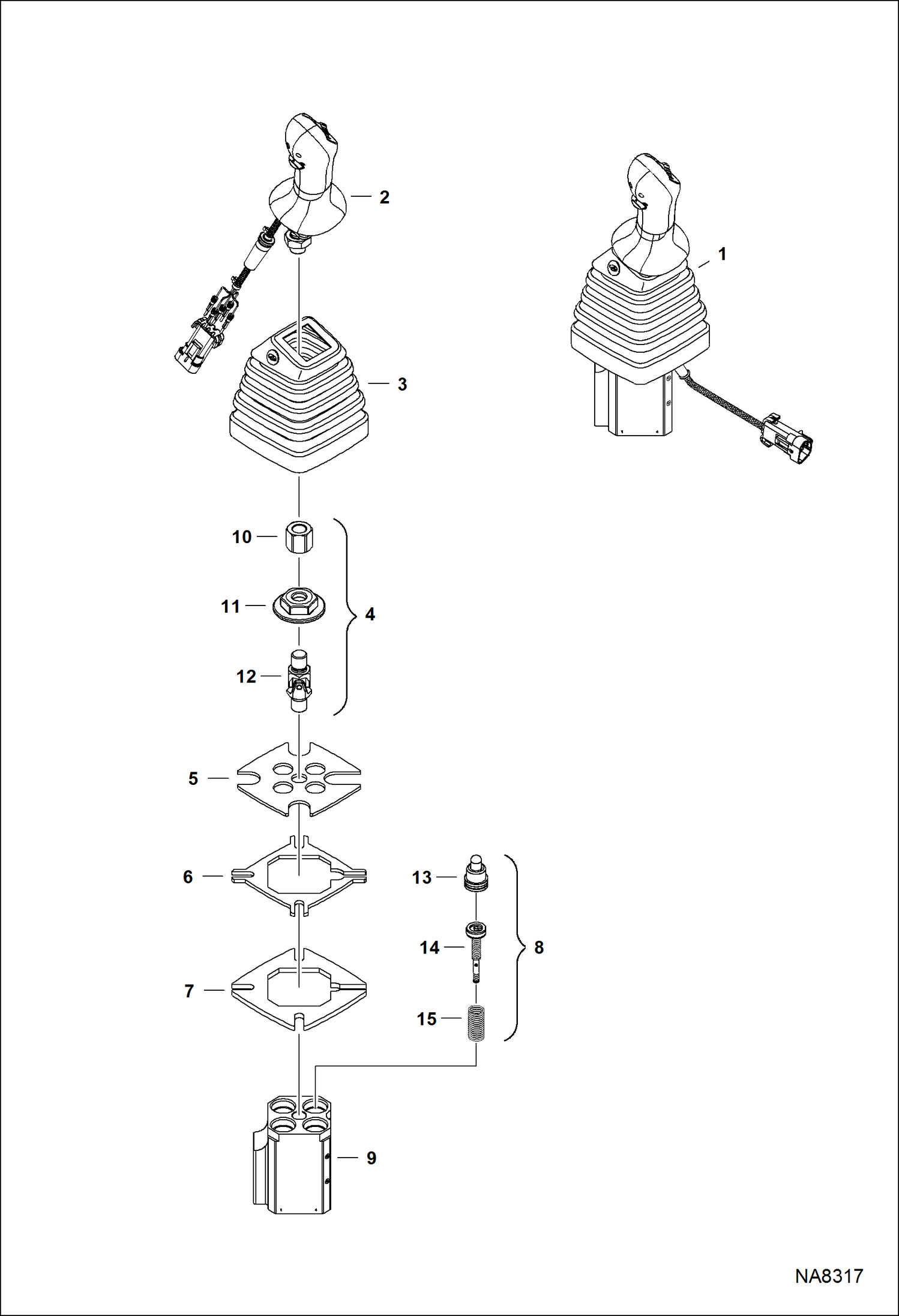

Схема запчастей Bobcat E32 - RH JOYSTICK (S/N A94H17001 & Above, AC2N15001 & Above) HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

7024441

JOYSTICK, RH ASSY Ref. 2-9

2

7031599

HANDLE, JOYSTICK

3

6692548

BOOT

4

6679956

KIT

5

FLANGE SQUARE BELLOW NSS - Order Ref. 9

6

FLANGE INTERMEDIATE NSS - Order Ref. 9

7

FLANGE INFERIOR NSS - Order Ref. 9

8

7028624

KIT PLUNGER

9

7031600

HOUSING, JOYSTICK W/Ref. 5-7
