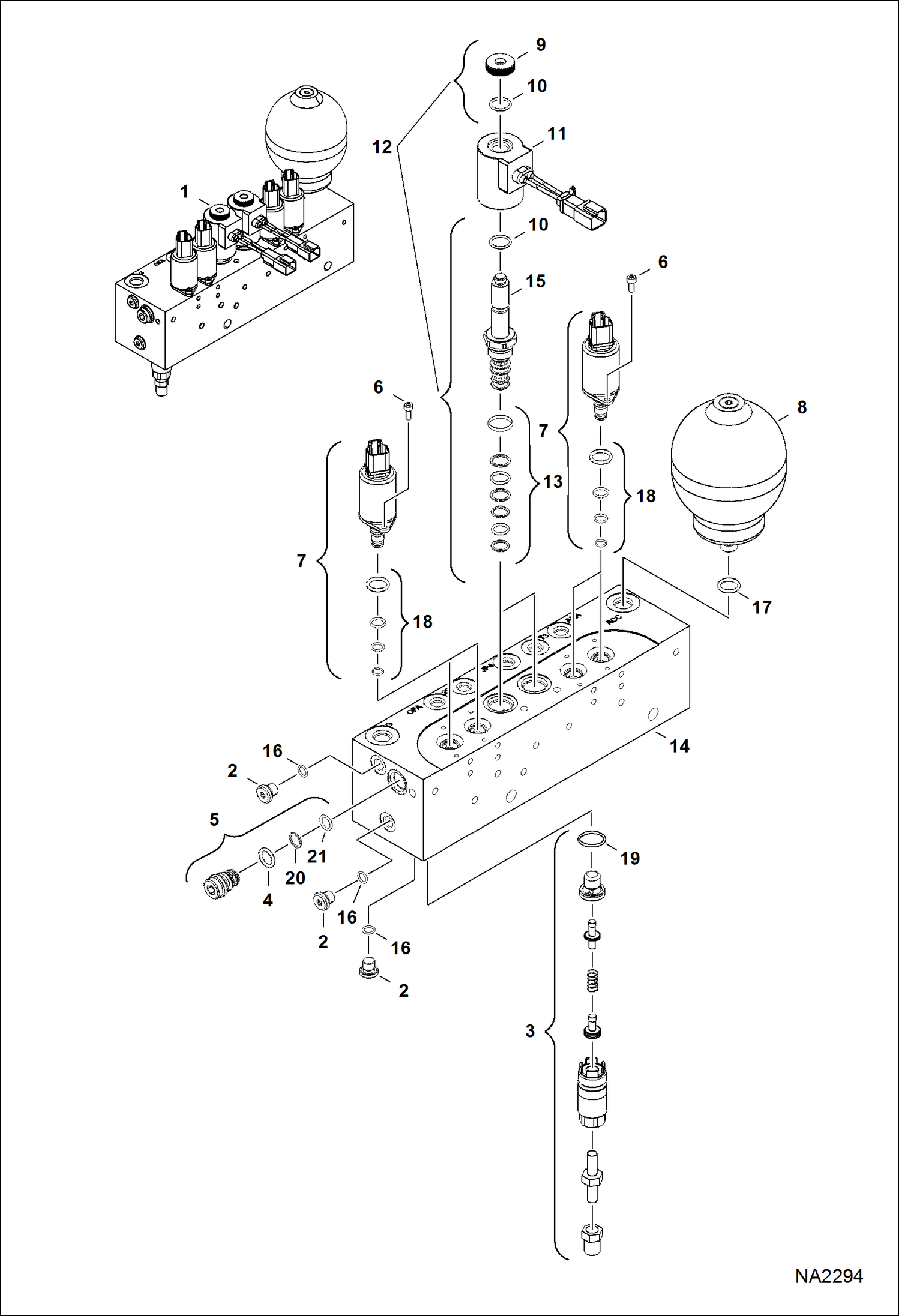

Запчасти Bobcat E32 MANIFOLD ASSY HYDRAULIC SYSTEM

1

7003649

MANIFOLD, HYD Ref. 2-21

2

6678993

PLUG W/Ref. 16

3

7010629

VALVE, RELIEF

4

7019204

O-RING Was 7010628 - D

5

6678990

VALVE

6

7010627

SCREW

7

7010626

COIL, SOLENOID

8

6685832

ACCUMULATOR W/Ref. 17

9

6688625

NUT

10

6679509

O-RING

11

7010625

COIL, SOLENOID

12

6678988

VALVE does not include Ref. 11 - Was 7010624 - A

13

6679078

SEAL KIT

14

BLOCK NSS

15

STEM NSS

16

O-RING NSS

17

6679605

O-RING

18

7019203

KIT, SEAL

19

O-RING NSS

20

O-RING NSS

21

7010628

O-RING
