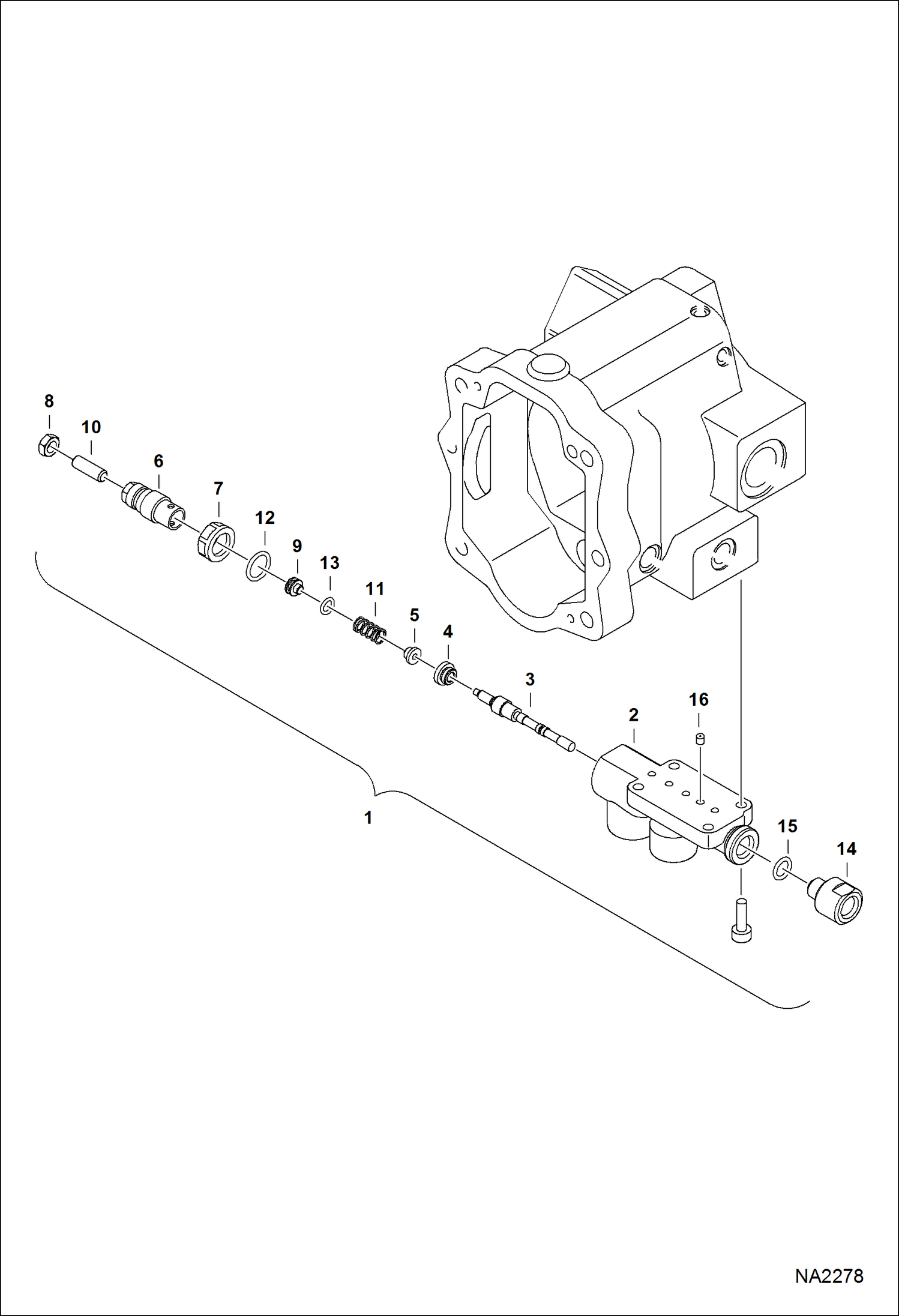

Запчасти Bobcat E32 HYDRAULIC PISTON PUMP (Control Assembly) HYDRAULIC SYSTEM

1

7010270

VALVE ASSY Ref. 2-16

2

BODY, VALVE NSS

3

SPOOL NSS

4

BUSHING NSS

5

SEAT SPRINT NSS

6

CAP NSS

7

NUT NSS

8

NUT NSS

9

HOLDER NSS

10

SET SCREW NSS

11

SPRING NSS

12

6670225

O-RING Was 6660724 - A

13

7009618

O-RING

14

PLUG NSS

15

7009180

O-RING

16

7009644

ORIFICE
