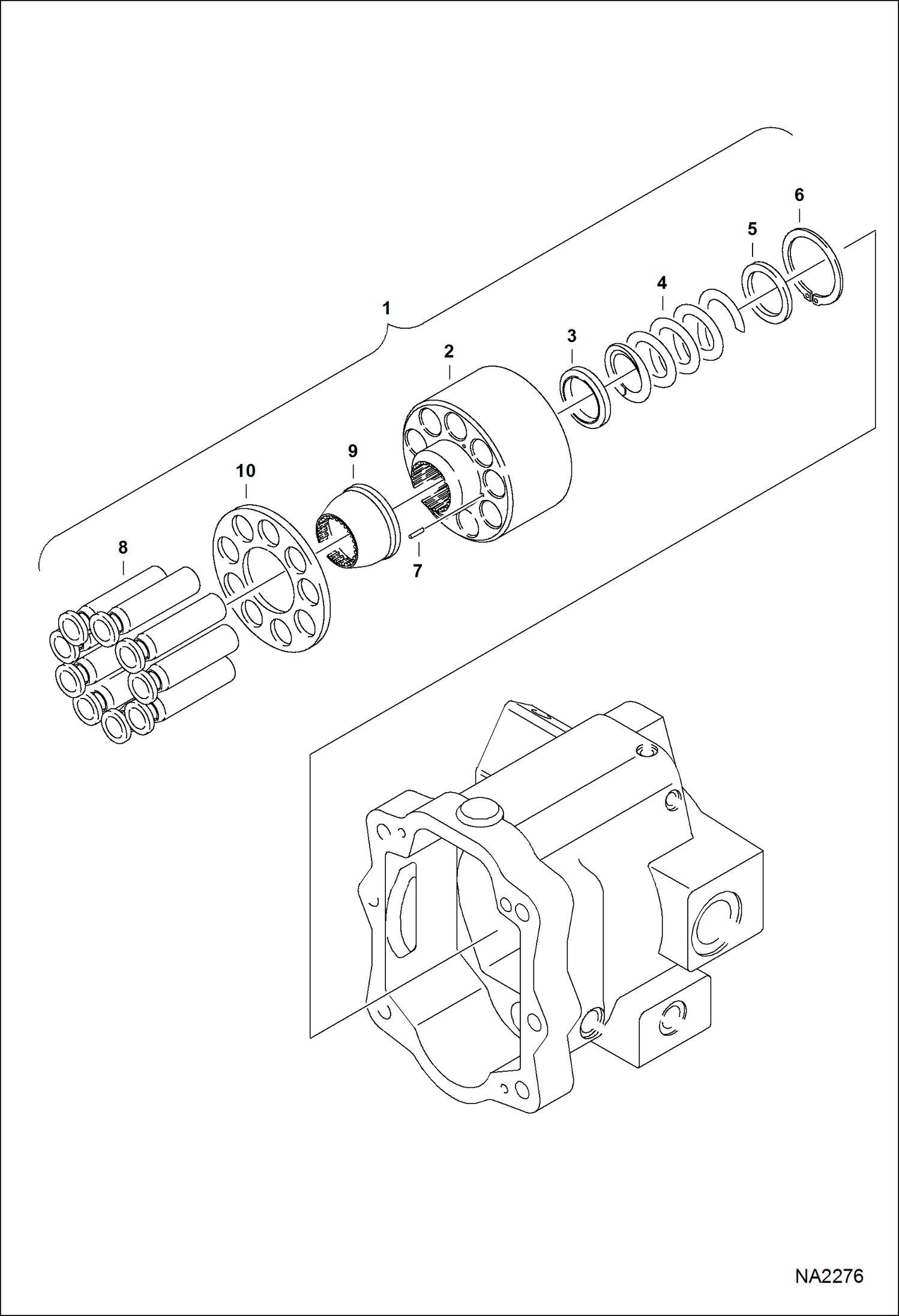

Запчасти Bobcat E32 HYDRAULIC PISTON PUMP (Rotary Group) HYDRAULIC SYSTEM

1

7010271

CYLINDER ASSY Ref. 2-10

2

BLOCK, CYLINDER NSS

3

COLLAR NSS

4

SPRING NSS

5

HOLDER, SPRING NSS

6

SNAP RING NSS

7

PIN NSS

8

PISTON ASSY NSS

9

PLATE, RETAINER NSS

10

PLATE, RETAINER NSS
