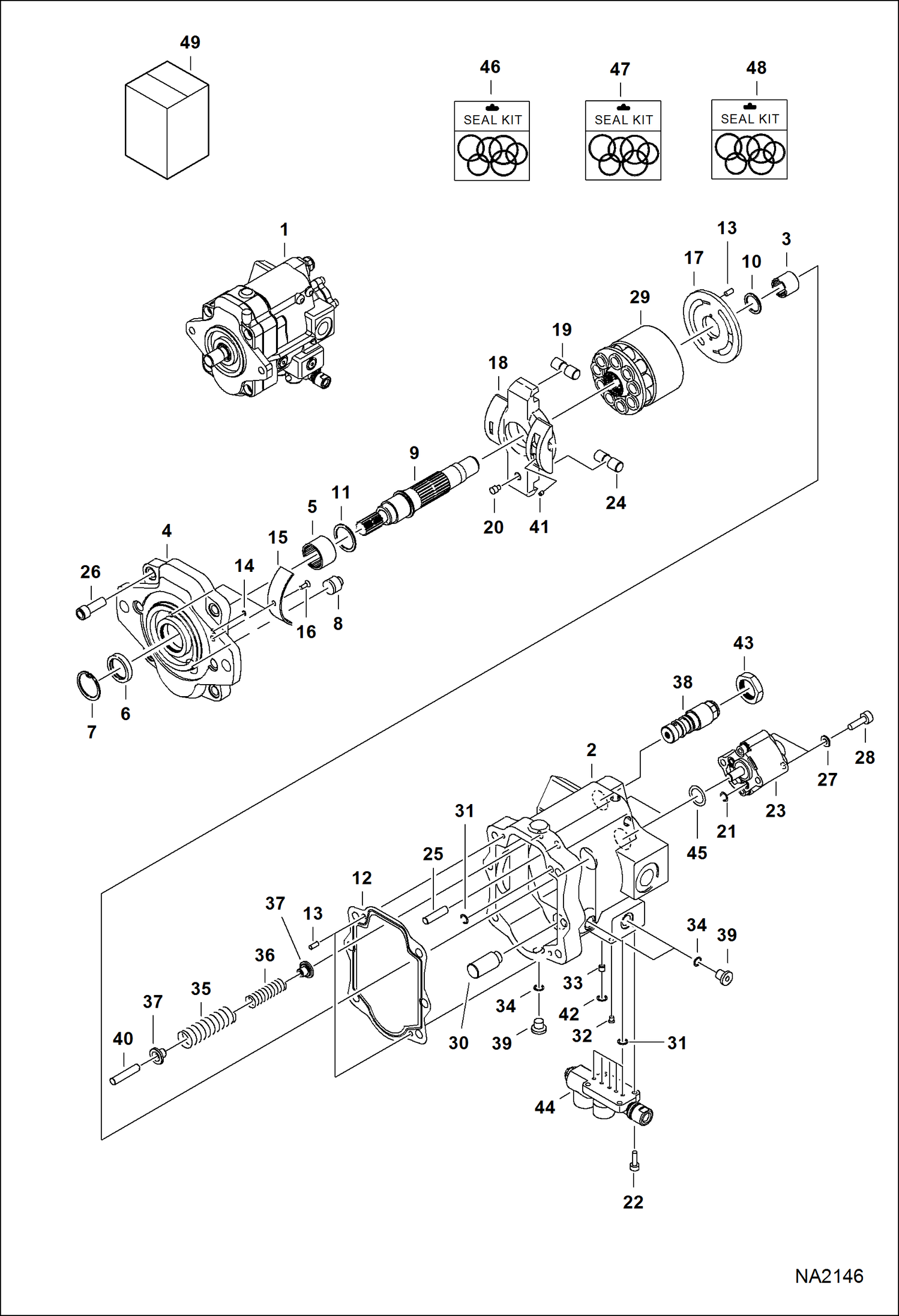

Запчасти Bobcat E32 HYDRAULIC PISTON PUMP (Assembly) HYDRAULIC SYSTEM

1

7025227

PUMP, HYD PISTON - Ref. 2-45 - Was 7010279 - A

2

CASE NSS

3

7009604

BEARING NEEDLE

4

FLANGE NSS

5

7009605

BEARING, NEEDLE

6

7009606

SEAL, OIL

7

7009607

RING, SNAP

8

7009608

STOP

9

7009609

SHAFT

10

7009610

WASHER, THRUST

11

7009611

WASHER, THRUST

12

7009612

GASKET

13

6653019

PIN

14

7009613

O-RING

15

7010672

BUSHING Was 7009614 - A

16

7009615

SCREW

17

7009616

PLATE, VALVE

18

PLATE, SWASH NSS - Order Ref. 49

19

PIN NSS - Order Ref. 49

20

7009617

STOP

21

7009643

O-RING

22

7009641

BOLT

23

7009628

PUMP, GEAR

24

PIN NSS - Order Ref. 49

25

7009642

PIN

26

7009632

BOLT

27

7009630

WASHER

28

7009629

BOLT

29

7010271

CYLINDER ASSY See Illustration HYDRAULIC PISTON PUMP/ NA2276

30

7009619

PIN

31

7009618

O-RING

32

7009620

PLUG

33

7009621

ORIFICE

34

7009180

O-RING

35

7009622

SPRING

36

7009623

SPRING

37

7009624

SEAT, SPRING

38

7009625

VALVE, PUMP HYD See Illustration HYDRAULIC PISTON PUMP/ NA2277

39

7009179

PLUG

40

7009647

PIN

41

ORIFICE NSS - Order Ref. 49

42

7009646

O-RING

43

7009627

NUT

44

7010270

VALVE ASSY See Illustration HYDRAULIC PISTON PUMP/ NA2278

45

7009645

O-RING

46

7010234

KIT, SEAL Ref. 31, 34

47

7009966

KIT, SEAL Ref. 21, 23, 24, 31, 34, 42, & 45

48

7010272

FILTER, SCREEN Ref. 18, 19, 24, 32 & 41

49

7009968

KIT, SEAL Ref. 6, 12 & 31
