Запчасти Bobcat E32 HYDRAULIC CIRCUITRY (Manifold & Pump) HYDRAULIC SYSTEM

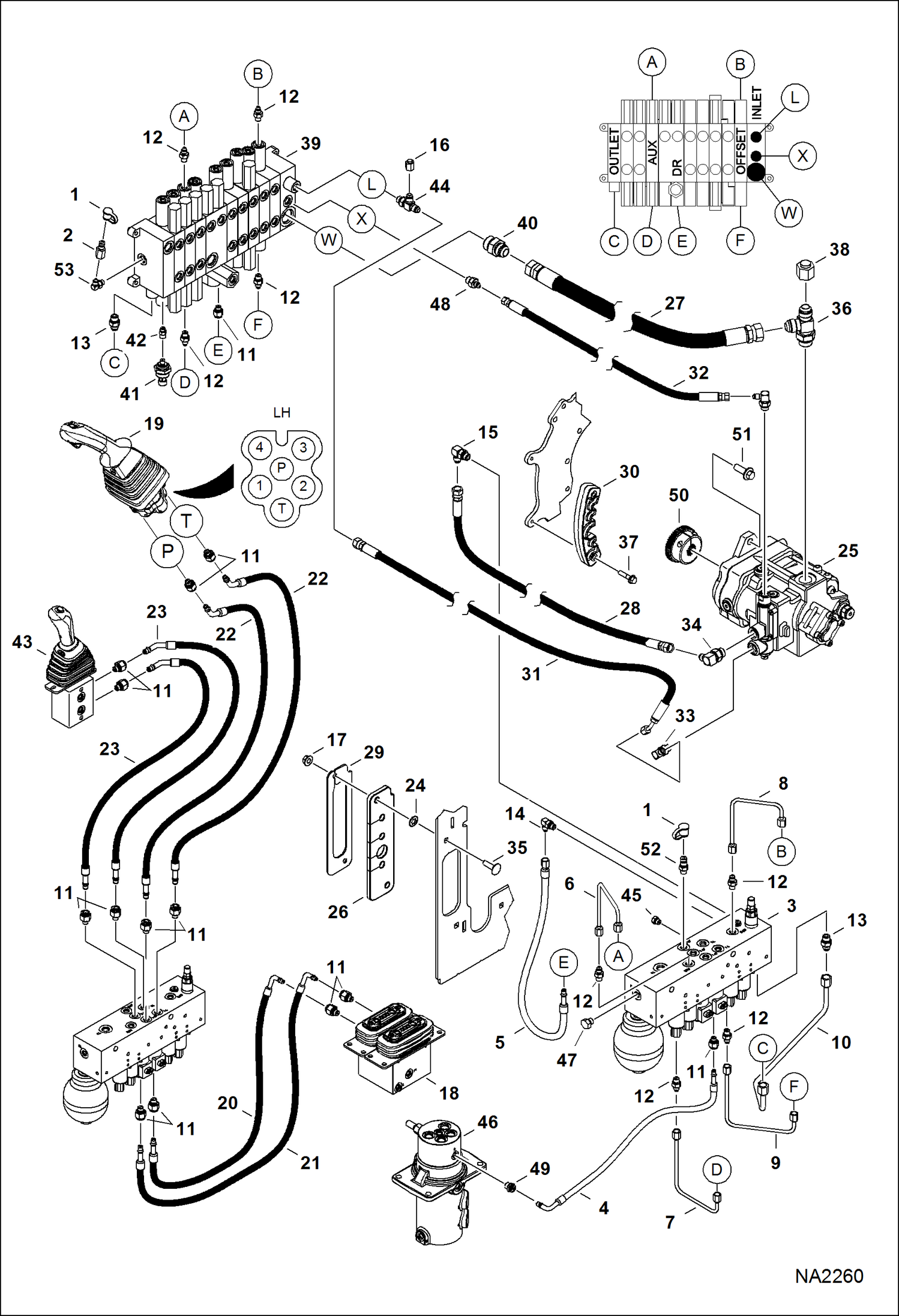

Схема запчастей Bobcat E32 - HYDRAULIC CIRCUITRY (Manifold & Pump) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6630367

CAP

2

7000009

PLUG

3

7003649

MANIFOLD, HYD See Illustration MANIFOLD ASSY/ NA2294

4

7164940

HOSE, HYD ASSY

5

7168162

HOSE, HYD ASSY

6

7209268

TUBELINE, HYD Was 7169365 - C

7

7169366

TUBELINE, HYD

8

7169369

TUBELINE, HYD

9

7169370

TUBELINE, HYD

10

7169393

TUBELINE, HYD

11

10L0604

FITTING, HYD CONNECTOR

11

78K4

O'RING

11

7011053

CLIP

12

15KB0404

FTG HYD S Connector

12

79K4

O RING 10

13

15KB0606

FITTING, HYD CONNECTOR

13

79K6

O RING 10

14

17KB0404

FTG HYD ELBOW 90

14

79K4

O RING 10

15

17KB0606

FITTING

15

79K6

O RING 10

16

36K5

CAP

17

43DM10

NUT

18

6697935

VALVE, PEDAL DUAL See Illustration TRAVEL CONTROLLER/ NA2307

19

7008320

LEVER, JOYSTICK W/PWM See Illustration LH JOYSTICK/ NA2224

20

7164930

HOSE, HYD ASSY

21

7164933

HOSE, HYD ASSY

22

7164934

HOSE, HYD ASSY

23

7164935

HOSE, HYD ASSY

24

6674264

RETAINER NUT

25

7025227

PUMP, HYD PISTON See Illustration HYDRAULIC PISTON PUMP/ NA2146 - Was 7010279 - A

26

7163362

GROMMET

27

7164757

HOSE, HYD ASSY

28

7186582

HOSE, HYD Was 7164936 - A

29

7166402

BRACKET

30

7171833

CLIP, HOSE

31

7186581

HOSE, HYD Was 7174086 - A

32

7174087

HOSE, HYD ASSY

33

17KB0406

FITTING, HYD ELBOW

33

79K6

O RING 10

34

17KB0608

FITTING, HYD ELBOW

34

79K8

O RING 10

35

21CM1035

BOLT

36

21KB1212

FITTING, HYD TEE

36

79K12

O RING 10

37

29CM835

BOLT

38

36K8

CAP

39

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA2295

40

7151508

FITTING

40

79K14

O RING 10

41

SENSOR See Illustration CONTROLS ELECTRICAL/ NA2232

42

7157758

FITTING

42

79K4

O RING 10

43

JOYSTICK, BLADE See Illustration BLADE JOYSTICK/ NA2308

44

21KB0606

FTG HYD STRAIGHT TEE

44

79K6

O RING 10

45

24K5

PLUG

45

ADAPTER See Illustration SECONDARY AUXILIARY KIT/ NA2298 - 2nd aux

45

79K6

O RING 10

46

7143734

SWIVEL, HYD ASSY See Illustration SWIVEL ASSY/ NA2262

47

24K3

PLUG

47

TEE See Illustration LOAD HOLD OPTION/ NA2291 - arm load hold

47

ADAPTER See Illustration LOAD HOLD OPTION/ NA2292 - boom load hold

47

79K4

O RING 10

48

15KB0406

FTG HYD S CONNECTOR

48

79K6

O RING 10

49

10L0606

FITTING, HYD CONNECTOR

49

78K6

O'RING

49

7011053

CLIP

50

6850029

COUPLING

51

29CM1235

BOLT

52

6658103

COUPLER

52

7000009

PLUG Use W/ 15KB0404

52

15KB0404

FTG HYD S Connector Use W/ 7000009

53

7215966

FITTING, HYD ELBOW Was 17KB0404 - B

53

79K4

O RING 10
