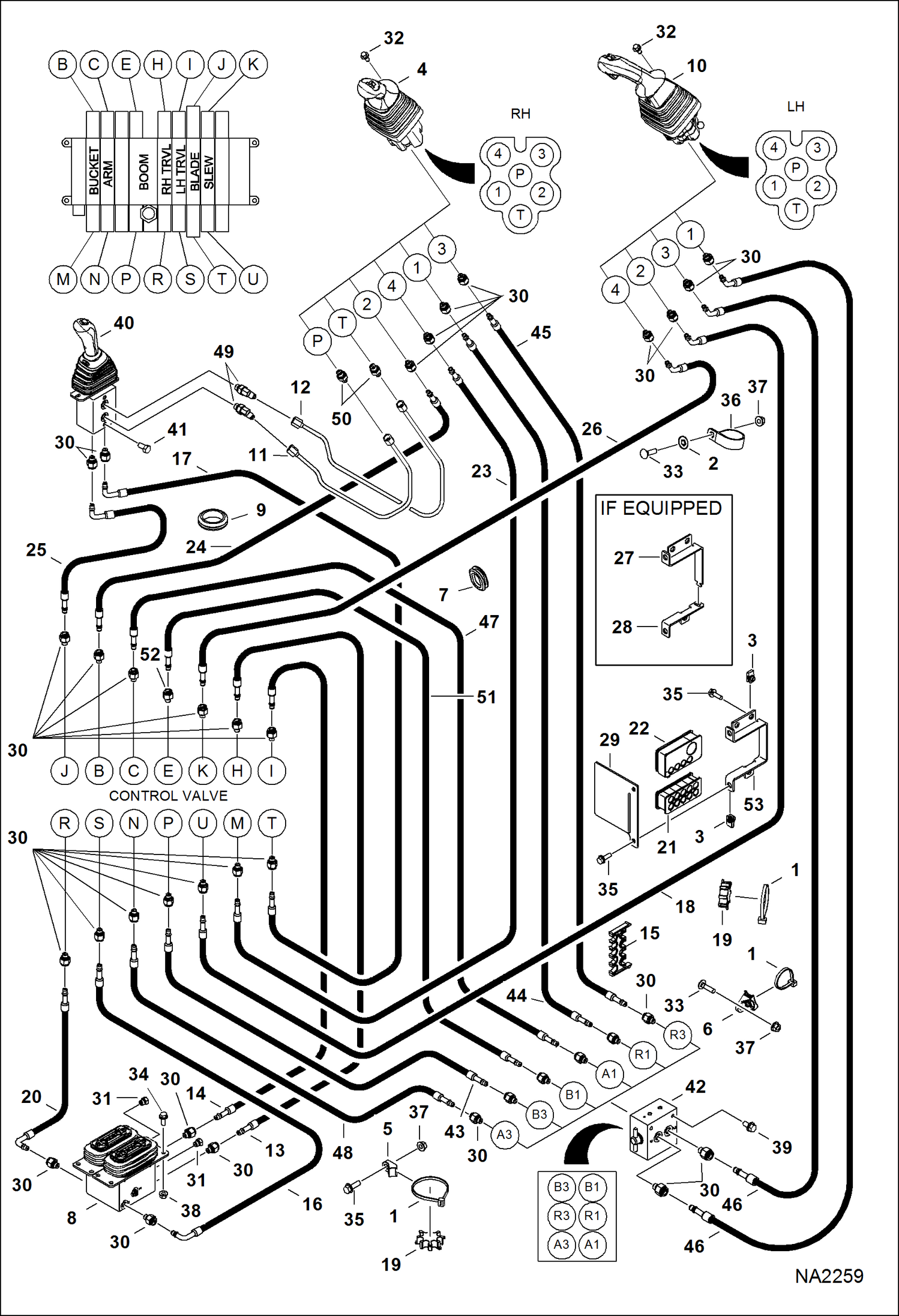

Запчасти Bobcat E32 HYDRAULIC CIRCUITRY (Pilot W/ JPS) HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

6675859

RETAINER

3

6676169

NUT

4

6677895

JOYSTICK See Illustration RH JOYSTICK/ MS1352

5

6678667

MOUNT

6

6678818

MOUNT

7

6681886

GROMMET

8

6697935

VALVE, PEDAL DUAL See Illustration TRAVEL CONTROLLER/ NA2307

9

6806443

GROMMET

10

7008320

LEVER, JOYSTICK W/PWM See Illustration LH JOYSTICK/ NA2224

11

7164909

HOSE, HYD ASSY

11

7191228

TUBELINE, HYD

12

7164910

HOSE, HYD ASSY

12

7191229

TUBELINE, HYD

13

7174050

HOSE, HYD ASSY Was 7164928 - D

14

7174050

HOSE, HYD ASSY Was 7169839 - A

15

7166870

CLIP, HOSE

16

7164929

HOSE, HYD ASSY Was 7169839 - D

17

7175664

HOSE, HYD ASSY Was 7169840 - D

18

7175665

HOSE, HYD ASSY Was 7169842 - D

19

CLIP, HOSE NLA - Was 7169988 - A

20

7164928

HOSE, HYD ASSY Was 7174050 - D

21

7175013

GUIDE, HOSE

22

7223146

GUIDE, HOSE Was 7175014 - A

23

7175662

HOSE, HYD ASSY Was 7175661 - D

24

7175661

HOSE, HYD ASSY Was 7175662 - D

25

7169840

HOSE, HYD ASSY Was 7175664 - D

26

7169842

HOSE, HYD ASSY Was 7175665 - D

27

7178918

BRACKET

28

7178919

BRACKET

29

7178989

PLATE

30

10L0604

FITTING, HYD CONNECTOR

30

78K4

O'RING

30

7011053

CLIP

31

24K3

PLUG

31

79K4

O RING 10

32

26GM8020

SCREW

33

28CM830

BOLT

34

29CM825

BOLT Was 29CM820 - B

35

29CM825

BOLT

36

30H85

CLAMP Was 30H79 - B

37

43DM8

NUT

38

51DM8

NUT

39

29CM816

SCREW

40

JOYSTICK, BLADE See Illustration BLADE JOYSTICK/ NA2308

41

1CM816

BOLT

42

7193055

VALVE, JPS See Illustration SELECTOR VALVE ASSY/ NA2118 Was 7008308 - A

43

7164898

HOSE, HYD ASSY

44

7164903

HOSE, HYD ASSY

45

7164904

HOSE, HYD ASSY

46

7169837

HOSE, HYD ASSY

47

7175660

HOSE, HYD ASSY

48

7175663

HOSE, HYD ASSY

49

10L0604

FITTING, HYD CONNECTOR Use W/hoses

49

78K4

O'RING

49

7011053

CLIP

49

18KB0404

FTG HYD ELBOW 45 Use W/tubelines

49

79K4

O RING 10

50

10L0604

FITTING, HYD CONNECTOR Use W/hoses

50

78K4

O'RING

50

7011053

CLIP

50

15KB0404

FTG HYD S Connector Use W/tubelines

50

79K4

O RING 10

51

7175660

HOSE, HYD ASSY

51

7229356

HOSE, HYD Use W/tee fitting on valve end

52

10L0604

FITTING, HYD CONNECTOR

52

78K4

O'RING

52

7011053

CLIP

52

21KB0404

FITTING, HYD TEE

52

21KB0404

FITTING, HYD TEE
