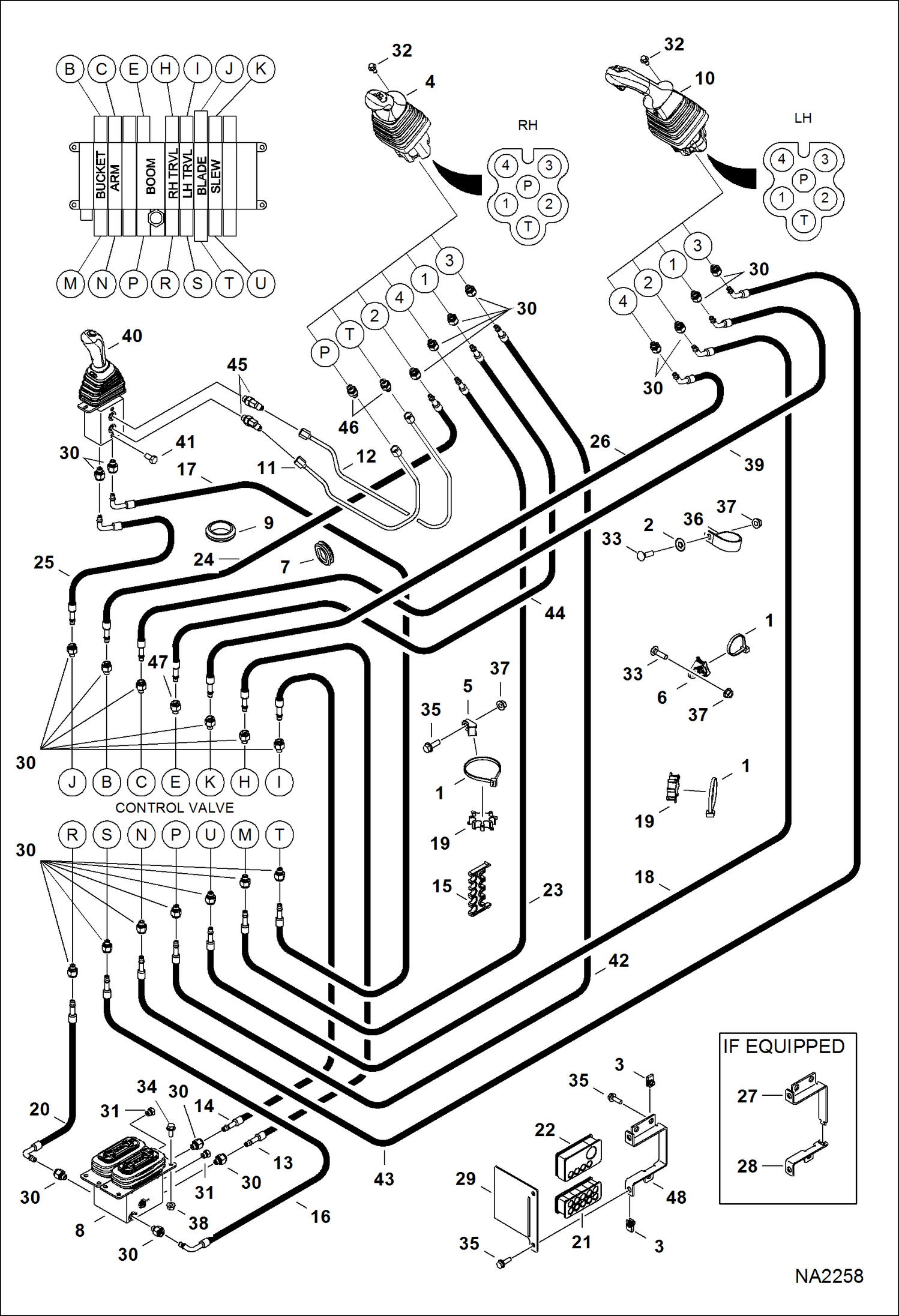

Запчасти Bobcat E32 HYDRAULIC CIRCUITRY (Pilot W/O JPS) HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

6675859

RETAINER

3

6676169

NUT

4

6677895

JOYSTICK See Illustration RH JOYSTICK/ MS1352

5

6678667

MOUNT

6

6678818

MOUNT

7

6681886

GROMMET

8

6697935

VALVE, PEDAL DUAL See Illustration TRAVEL CONTROLLER/ NA2307

9

6806443

GROMMET

10

7008320

LEVER, JOYSTICK W/PWM See Illustration LH JOYSTICK/ NA2224

11

7164909

HOSE, HYD ASSY

11

7191228

TUBELINE, HYD

12

7164910

HOSE, HYD ASSY

12

7191229

TUBELINE, HYD

13

7174050

HOSE, HYD ASSY Was 7164928 - D

14

7174050

HOSE, HYD ASSY Was 7169839 - A

15

7166870

CLIP, HOSE

16

7164929

HOSE, HYD ASSY Was 7169839 - D

17

7175664

HOSE, HYD ASSY Was 7169840 - D

18

7175665

HOSE, HYD ASSY Was 7169842 - D

19

CLIP, HOSE NLA - Was 7169988 - A

20

7164928

HOSE, HYD ASSY Was 7174050 - D

21

7175013

GUIDE, HOSE

22

7223146

GUIDE, HOSE Was 7175014 - A

23

7175662

HOSE, HYD ASSY Was 7175661 - D

24

7175661

HOSE, HYD ASSY Was 7175662 - D

25

7169840

HOSE, HYD ASSY Was 7175664 - D

26

7169842

HOSE, HYD ASSY Was 7175665 - D

27

7178918

BRACKET

28

7178919

BRACKET

29

7178989

PLATE

30

10L0604

FITTING, HYD CONNECTOR

30

78K4

O'RING

30

7011053

CLIP

31

24K3

PLUG

31

79K4

O RING 10

32

26GM8020

SCREW

33

28CM830

BOLT

34

29CM825

BOLT Was 29CM820 - B

35

29CM825

BOLT

36

30H85

CLAMP Was 30H79 - B

37

43DM8

NUT

38

51DM8

NUT

39

7175681

HOSE, HYD ASSY Was 7175683 - D

40

JOYSTICK, BLADE See Illustration BLADE JOYSTICK/ NA2308

41

1CM816

BOLT

42

7175682

HOSE, HYD ASSY Was 7175680 - D

43

7175683

HOSE, HYD ASSY Was 7175681 - D

44

7175680

HOSE, HYD ASSY Was 7175682 - D

44

7229357

HOSE, HYD Use W/tee fitting on valve end

45

10L0604

FITTING, HYD CONNECTOR Use W/hoses

45

78K4

O'RING

45

7011053

CLIP

45

18KB0404

FTG HYD ELBOW 45 Use W/tubelines

45

79K4

O RING 10

46

10L0604

FITTING, HYD CONNECTOR Use W/hoses

46

78K4

O'RING

46

7011053

CLIP

46

15KB0404

FTG HYD S Connector Use W/tubelines

46

79K4

O RING 10

47

10L0604

FITTING, HYD CONNECTOR

47

78K4

O'RING

47

7011053

CLIP

47

21KB0404

FITTING, HYD TEE

47

79K4

O RING 10
