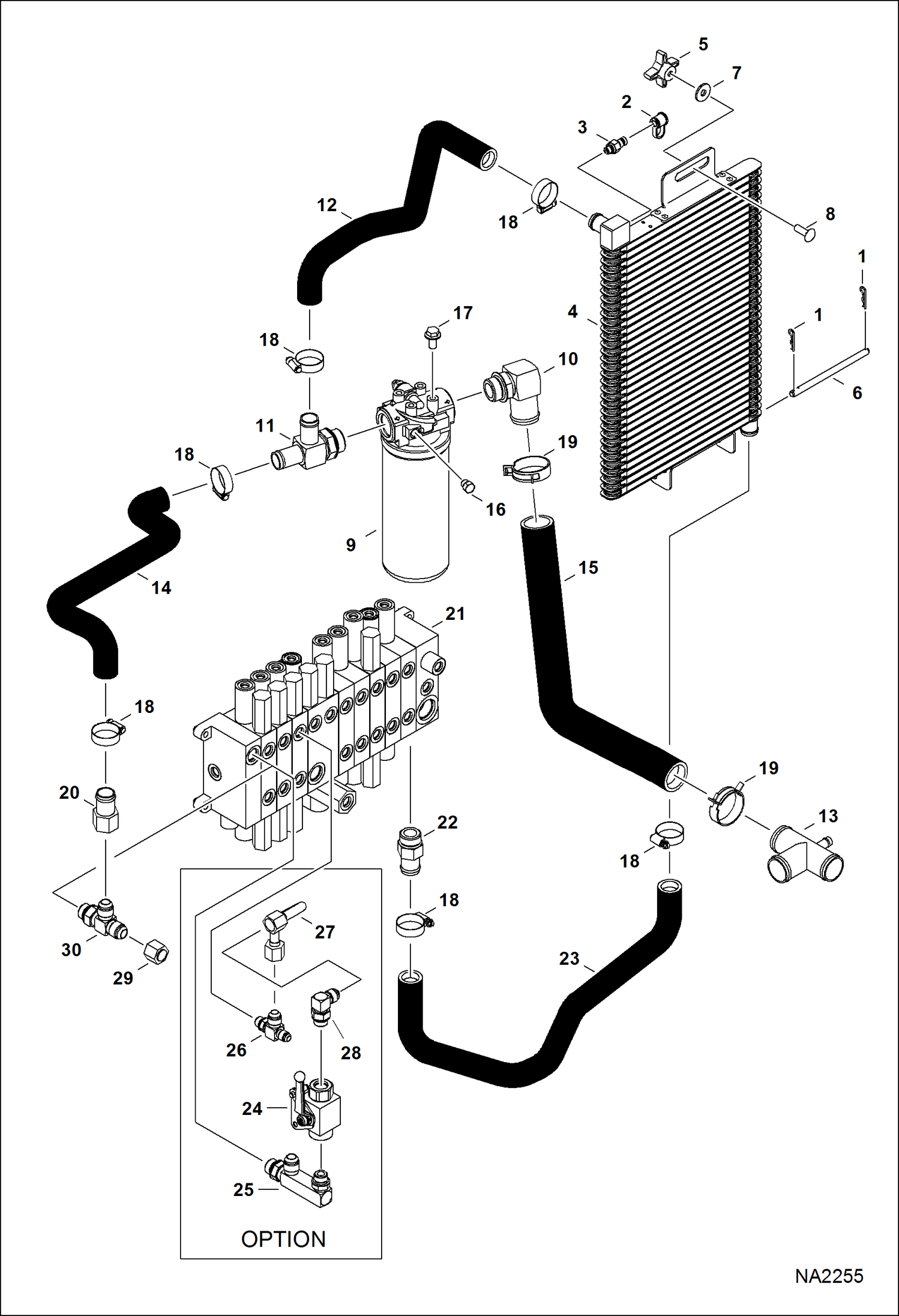

Запчасти Bobcat E32 HYDRAULIC CIRCUITRY (Cooler/Filter & Direct to Tank) HYDRAULIC SYSTEM

1

1306637

CLIP

2

6630367

CAP

3

6658103

COUPLER

3

79K4

O RING 10

4

6693522

EXCHANGER, HYD

5

7167576

NUT, WING

6

7171633

PIN

7

17EM100

WASHER

8

28CM1025

BOLT

9

7008373

FILTER, OIL HYD ASSY See Illustration HYDROSTATIC OIL FILTER/ NA1844

10

7166248

FITTING

10

79K16

O RING 10

11

7166249

FITTING

11

79K16

O RING 10

12

7211371

HOSE, HYD FORMED Was 7166251 - C

13

TEE See Illustration HYDRAULIC CIRCUITRY/ NA2257

14

7211372

HOSE, HYD FORMED Was 7169974 - C

15

7171563

HOSE, WATER FORMED

16

24K3

PLUG

16

ELBOW See Illustration SECONDARY AUXILIARY KIT/ NA2298

16

79K4

O RING 10

17

29CM1020

BOLT Was 29CM1025 - B

18

42HL150

CLAMP, HOSE

19

5HM47

CLAMP

20

7012353

VALVE, BUILDUP Was 6693944 - A

21

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA2295

22

7012354

VALVE, BUILDUP Was 7009388 - A

22

79K14

O RING 10

23

7211373

HOSE, HYD FORMED Was 7171551 - C

24

6693507

VALVE, BALL See Illustration SELECTOR VALVE ASSY/ NA2306

25

7157755

FITTING

25

79K10

O RING 10

26

7157757

TEE

26

79K6

O RING 10

27

7162883

TUBELINE, HYD

28

17KB0808

FITTING, HYD ELBOW

28

79K8

O RING 10

29

36K7

FITTING

30

21KB1010

FITTING, HYD TEE

30

79K10

O RING 10
