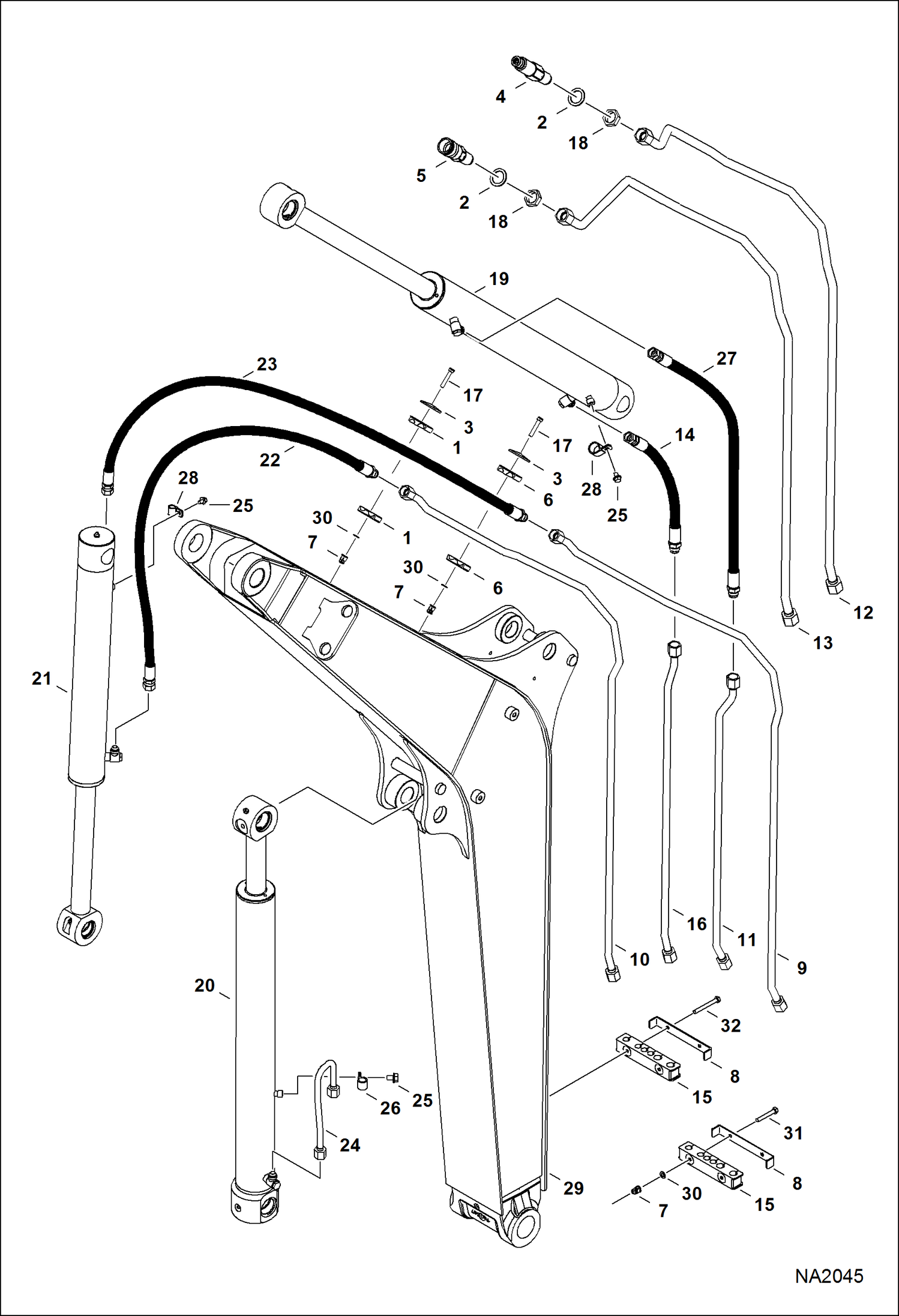

Запчасти Bobcat E32 HYDRAULIC CIRCUITRY (Work Tubelines & Cylinders) HYDRAULIC SYSTEM

1

6577697

CLAMP

2

6589699

WASHER

3

6652521

PLATE

4

6676445

COUPLER

4

6679841

SEAL Was 6672026 - A

5

6676447

COUPLER

6

6729702

CLAMP

7

CAGE, NUT NLA - if equipped - Was 7000998 - A

8

7122596

BRACKET

9

7142980

TUBELINE, HYD bucket base end

10

7142984

TUBELINE, HYD bucket rod end

11

7142988

TUBELINE, HYD arm rod end

12

7142992

TUBELINE, HYD to aux male coupler

13

7142996

TUBELINE, HYD to aux female coupler

14

7143684

HOSE, HYD ASSY bucket rod end

15

7012329

CLAMP, TUBELINE Was 7146134 - A

16

7150741

TUBELINE, HYD arm base end

17

53CM855

SCREW 55 mm (2.16'') long

17

53CM870

SCREW 70 mm (2.75'') long

17

59CM845

BOLT, FLANGE 45 mm (1.77'') long

18

86F8

NUT 5

19

CYLINDER, ARM See Illustration ARM CYLINDER/ NA2242

20

CYLINDER, BOOM See Illustration BOOM CYLINDER/ NA2235

21

CYLINDER, BUCKET See Illustration BUCKET CYLINDER/ PE3928

22

7143692

HOSE, HYD ASSY rod end - for standard arm

22

7143694

HOSE, HYD ASSY rod end - for long arm

23

7143693

HOSE, HYD ASSY base end - for standard arm

23

7143695

HOSE, HYD ASSY base end - for long arm

24

7156070

TUBELINE, HYD

24

TUBELINE, HYD See Illustration LOAD HOLD OPTION/ NA2292 - boom load hold

25

29CM816

SCREW Was 29CM812 - B

26

30H30

CLAMP

27

7143685

HOSE, HYD ASSY

27

TUBELINE, HYD See Illustration LOAD HOLD OPTION/ NA2291 - arm load hold

28

30H50

CLIP

29

BOOM W/A See Illustration BOOM/ NA2035 - Was 7122542 - B

30

7188405

WASHER, SEALING

31

59CM845

BOLT, FLANGE 45 mm (1.77'') long

32

53CM855

SCREW 55 mm (2.16'') long

32

59CM845

BOLT, FLANGE 45 mm (1.77'') long
