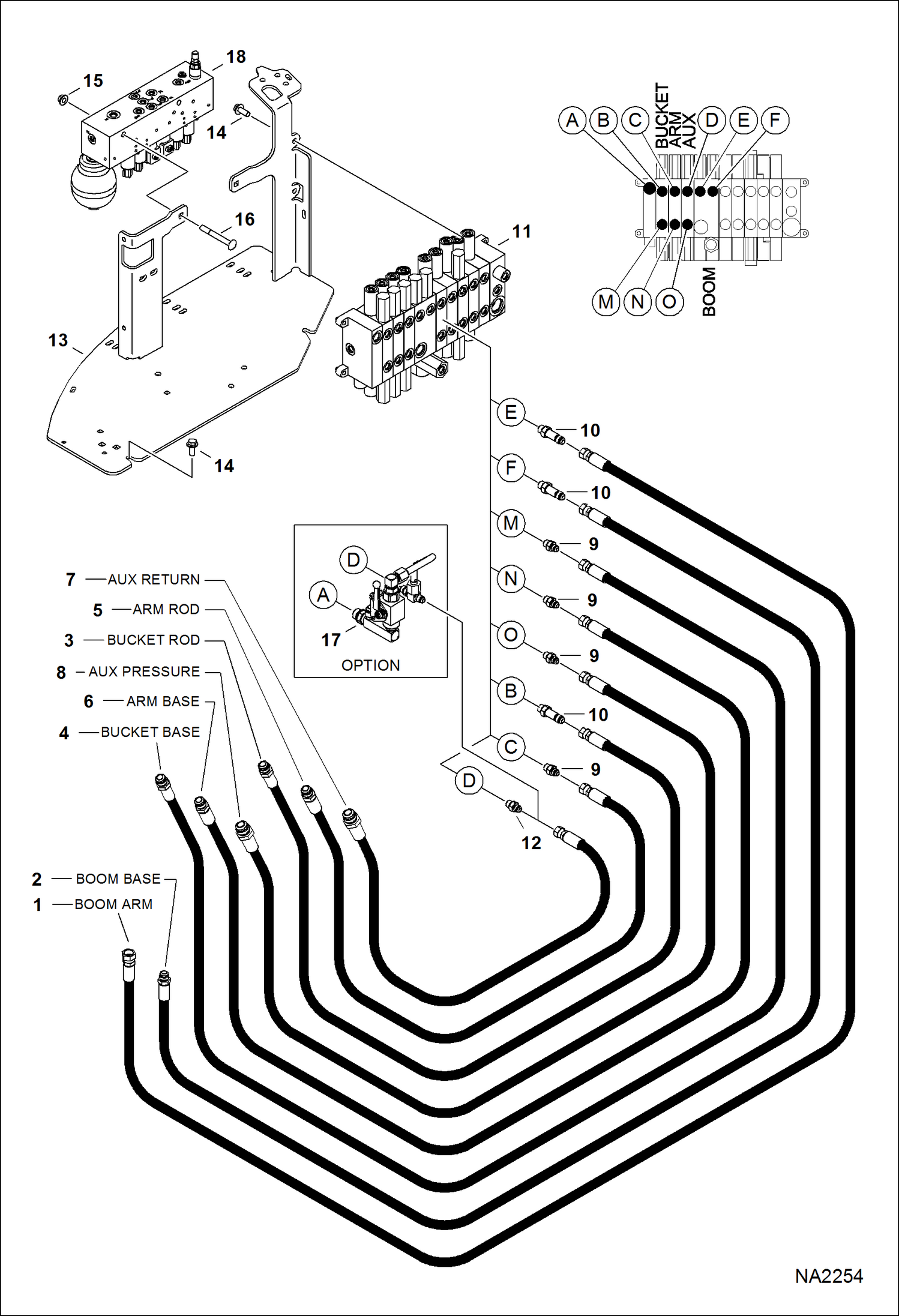

Запчасти Bobcat E32 HYDRAULIC CIRCUITRY (Work Hoses & Control Valve) HYDRAULIC SYSTEM

1

7164919

HOSE, HYD ASSY

2

7164920

HOSE, HYD ASSY

3

7169828

HOSE, HYD ASSY

4

7169829

HOSE, HYD ASSY

5

7169830

HOSE, HYD ASSY

6

7169831

HOSE, HYD ASSY

7

7189036

HOSE, HYD Was 7169832 - A

8

7189037

HOSE, HYD Was 7169833 - A

9

15KB0606

FITTING, HYD CONNECTOR

9

79K6

O RING 10

10

16KB0606

FTG HYD L CONNECTOR

10

79K6

O RING 10

11

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA2295

12

15KB0606

FITTING, HYD CONNECTOR

12

7157757

TEE See Illustration HYDRAULIC CIRCUITRY/ NA2255 - direct to tank

12

79K6

O RING 10

13

7153463

BRACKET, VALVE

14

29CM1025

BOLT

15

43DM10

NUT

16

28CM10100

BOLT

17

VALVE See Illustration HYDRAULIC CIRCUITRY/ NA2255 - direct to tank

18

MANIFOLD See Illustration MANIFOLD ASSY/ NA2294
