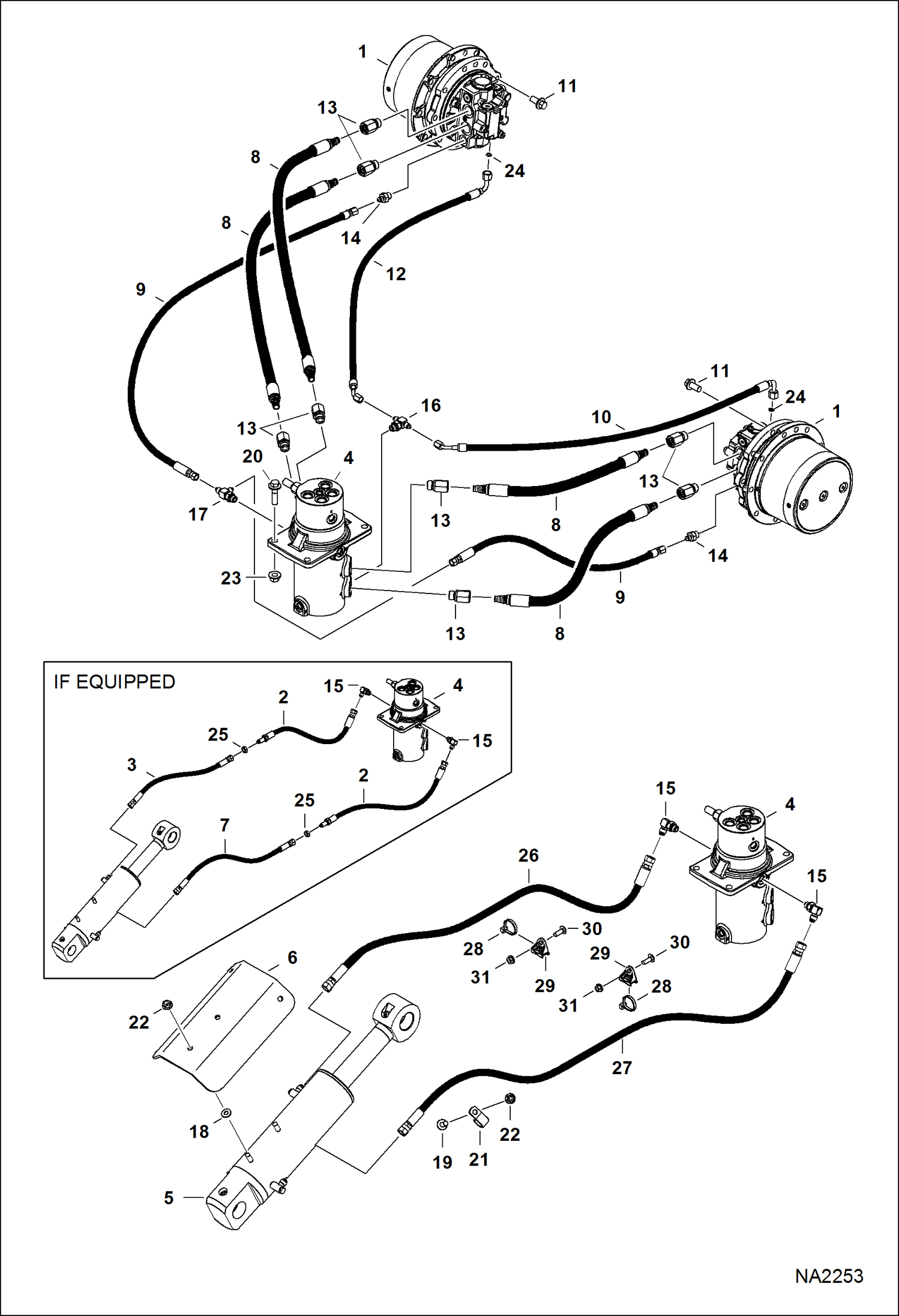

Запчасти Bobcat E32 HYDRAULIC CIRCUITRY (Lower) HYDRAULIC SYSTEM

1

6698127

MOTOR, TRAVEL HYD See Illustration TRAVEL MOTOR/ NA2099

2

7143712

HOSE, HYD ASSY

3

7181886

HOSE, HYD Was 7143713 - A

4

7143734

SWIVEL, HYD ASSY See Illustration SWIVEL ASSY/ NA2262

5

BLADE CYLINDER See Illustration BLADE CYLINDER/ PE3923 - Was 7147780 - B

6

7188746

SHIELD, CYL Was 7151800 - A

7

7181887

HOSE, HYD Was 7156295 - A

8

7156353

HOSE, HYD ASSY Also Order Ref. 13

9

7156354

HOSE, HYD ASSY

10

7156359

HOSE, HYD ASSY

11

7162236

SCREW

12

7175301

HOSE, HYD ASSY

13

15HB0808

FITTING Also Order hose

13

78K8

O RING

14

15KB0406

FTG HYD S CONNECTOR

14

79K6

O RING 10

15

17KB0606

FITTING

15

79K6

O RING 10

16

19KB0406

FITTING, HYD TEE

16

79K6

O RING 10

17

21KB0406

FTG HYD STRAIGHT TEE

17

79K6

O RING 10

18

25E17

WASHER 5

19

29CM1025

BOLT

20

29CM1250

BOLT Was 29CM1245 - B

21

30H46

CLIP

22

43DM10

NUT

23

51DM12

NUT

24

58K11

O RING 10

25

86F5

NUT
