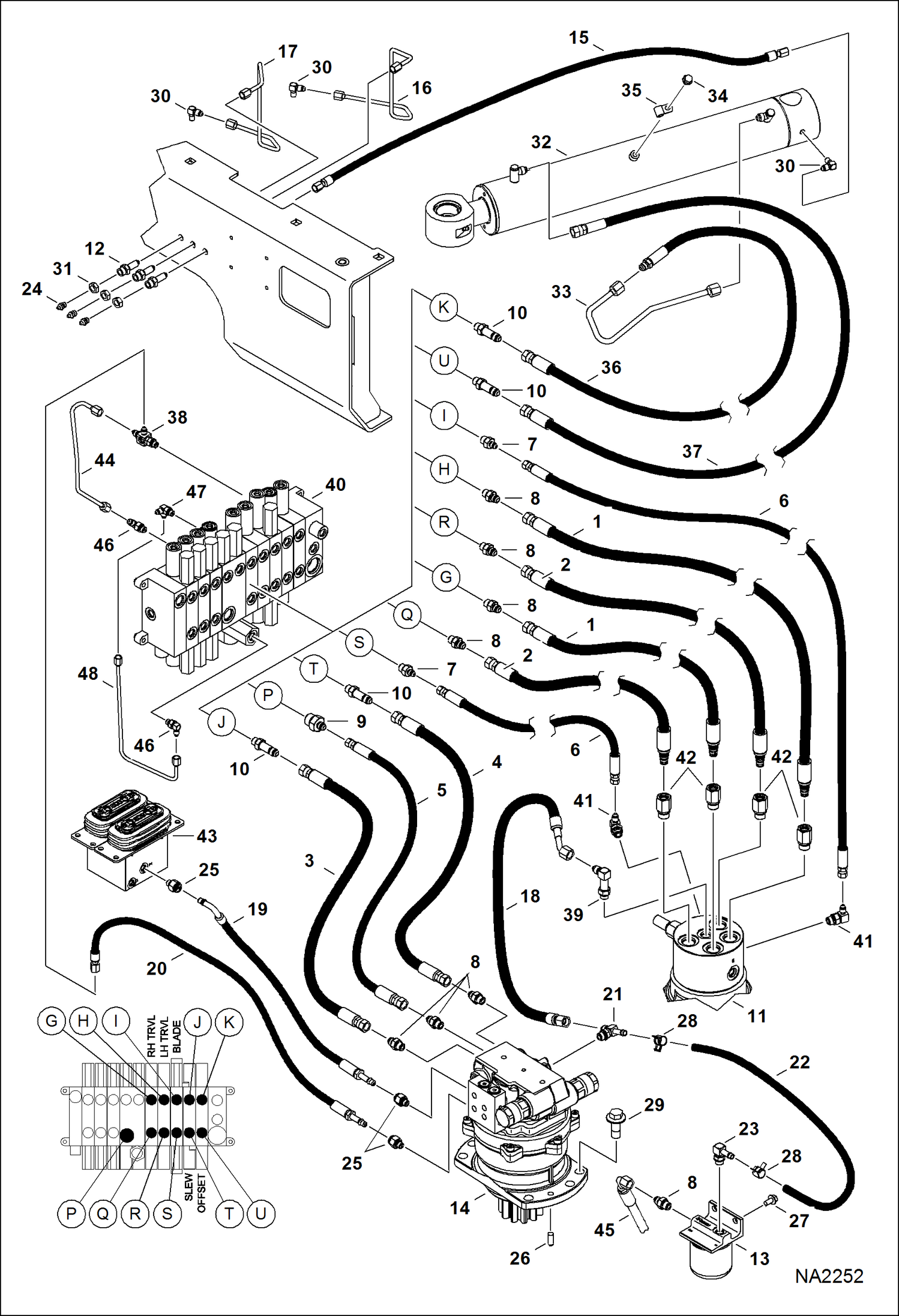

Запчасти Bobcat E32 HYDRAULIC CIRCUITRY (Upper/Swing)(Slew Motor W/Timer Valve) (S/N A94H11001 - , AC2N11001 -) HYDRAULIC SYSTEM

1

7164751

HOSE, HYD ASSY Also Order Ref. 42

2

7164752

HOSE, HYD ASSY Also Order Ref. 42

3

7164921

HOSE, HYD ASSY

4

7164922

HOSE, HYD ASSY

5

7164938

HOSE, HYD ASSY

6

7174278

HOSE, HYD ASSY .438'' thread female ends

6

7181885

HOSE, HYD .563'' thread female ends

7

15KB0406

FTG HYD S CONNECTOR

7

15KB0606

FITTING, HYD CONNECTOR

7

79K6

O RING 10

8

15KB0606

FITTING, HYD CONNECTOR

8

79K6

O RING 10

9

15KB0610

FITTING, HYD CONNECTOR

9

79K10

O RING 10

10

16KB0606

FTG HYD L CONNECTOR

10

79K6

O RING 10

11

7143734

SWIVEL, HYD ASSY See Illustration SWIVEL ASSY/ NA2262

12

6807184

FITTING

13

7008929

FILTER, OIL HYD ASSY

13

7009365

FILTER, OIL HYD replacement filter

14

MOTOR, HYD SLEW See Illustration SLEW MOTOR/ NA2309

15

7145016

HOSE ASSY if equipped

16

7168157

TUBELINE, HYD

17

7168158

TUBELINE, HYD

18

7173436

HOSE, HYD ASSY

19

7174275

HOSE, HYD ASSY

20

7174276

HOSE, HYD ASSY

21

7174613

TEE

21

79K6

O RING 10

22

7174615

HOSE, HYD FORMED

23

7174807

ELBOW

23

79K6

O RING 10

24

10H25

FITTING, GREASE 5

25

10L0604

FITTING, HYD CONNECTOR

25

78K4

O'RING

25

7011053

CLIP

26

23JM1024

PIN HARDENED PARALLE

27

29CM820

SCREW Was 29CM816 - B

28

5HM15

CLAMP Was 5HM14 - B

29

60CM1640

SCREW

30

83F3

ELBOW 5 if equipped

31

86F3

LOCKNUT

32

CYLINDER, BOOM SWING See Illustration BOOM SWING CYLINDER/ PE3897

33

7153457

TUBELINE, HYD

34

29CM812

BOLT

35

30H22

CLIP

36

7164755

HOSE, HYD ASSY

37

7164756

HOSE, HYD ASSY

38

7023611

VALVE, SHUTTLE Was 6697919 - A

38

79K4

O RING 10

39

6812815

FITTING

39

79K6

O RING 10

40

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA2295

41

17KB0406

FITTING, HYD ELBOW

41

17KB0606

FITTING

41

79K6

O RING 10

42

15HB0808

FITTING Also Order hose

42

78K8

O RING

43

6697935

VALVE, PEDAL DUAL See Illustration TRAVEL CONTROLLER/ NA2307

44

7166193

TUBELINE, HYD

45

HOSE, HYD See Illustration HYDRAULIC CIRCUITRY/ NA2257

46

17KB0404

FTG HYD ELBOW 90

46

79K4

O RING 10

47

17KB0404

FTG HYD ELBOW 90

47

TEE See Illustration LOAD HOLD OPTION/ NA2292 - boom load hold

47

79K4

O RING 10

48

7151517

TUBELINE, HYD
