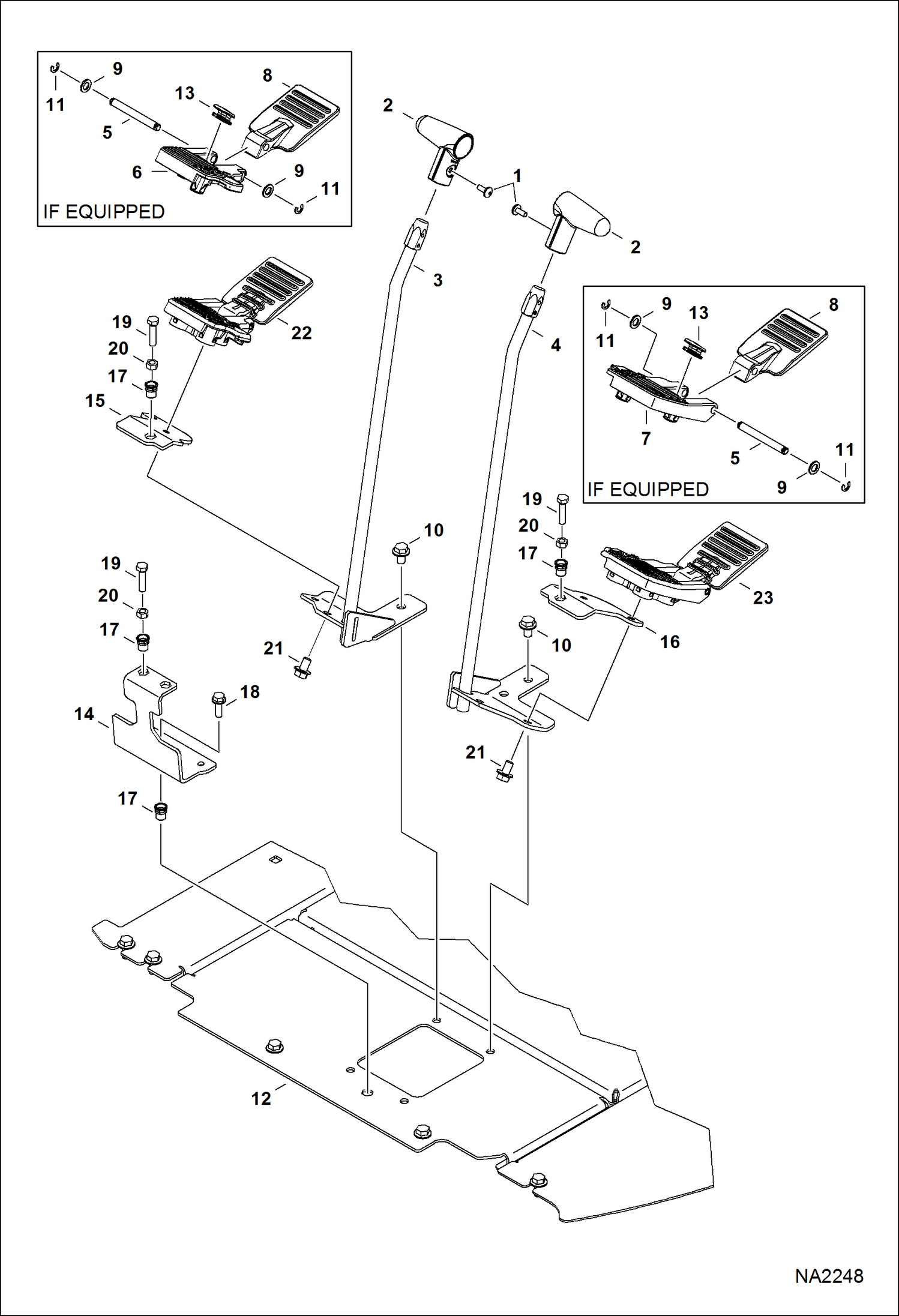

Запчасти Bobcat E32 TRAVEL CONTROL CONTROLS

1

6803202

SCREW

2

7163788

HANDLE, LEVER CONTROL

3

7164047

LEVER, CONTROL

4

7164048

LEVER, CONTROL

5

7164061

PIN, HINGE

6

7167166

PEDAL, RH

7

7167167

PEDAL, LH

8

7167168

PEDAL, BACK

9

15EM100

WASHER

10

29CM1020

BOLT - Was 29CM1016 - B

11

9JM70

RETAINER SHAFT

12

PLATE, FLOOR See Illustration OPERATOR AREA & SEAT/ NA2256

13

7181057

GROMMET

14

7186570

BRACKET China

15

7186572

PLATE China

16

7186698

PLATE China

17

7186741

INSERT China

18

29CM825

BOLT China

19

4CM835

BOLT China

20

4DM8

NUT China

21

29CM1020

BOLT

22

7210820

PEDAL ASSY RH

23

7210821

PEDAL ASSY LH
