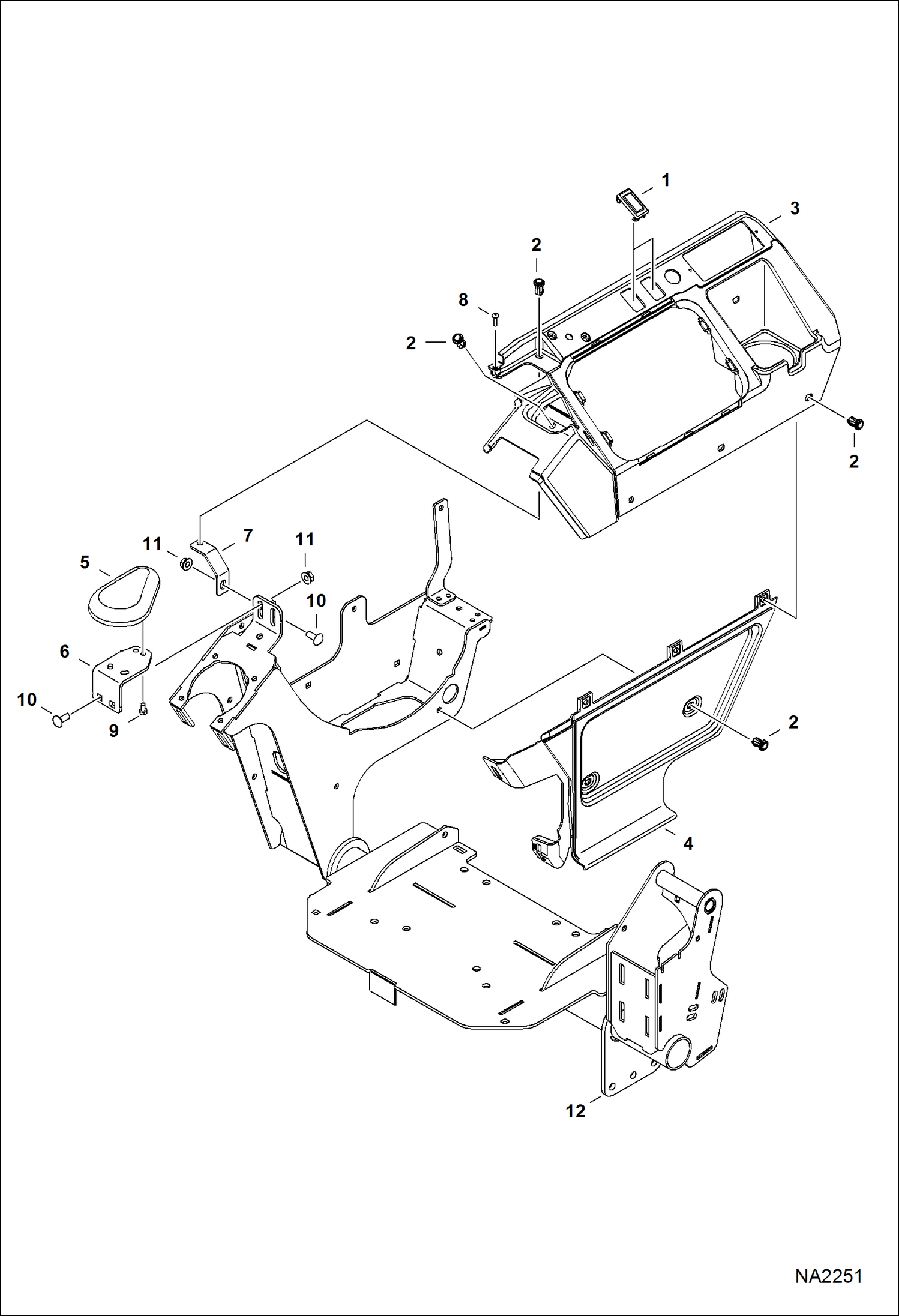

Запчасти Bobcat E32 CONTROL CONSOLE (RH) (S/N A94H11001 - 16999, AC2N11001 - 14999) CONTROLS

1

6665314

PLUG

2

7160383

RIVET, BIRD CAGE

3

7165565

COVER, RH

4

7168965

COVER, RH

5

7169719

SUPPORT

6

7169720

MOUNT, ARMREST

7

7174826

BRACKET

8

7177015

SCREW

9

1CM612

BOLT Was 1CM610 - B

10

28CM820

BOLT

11

51DM8

NUT

12

CONTROLLER, JOYSTICK ASSY See Illustration CONTROL CONSOLE/ NA2250

13

7181142

BRACKET, SUPPORT

14

TRIM NLA - 1.75'' (43.8 mm) long - Order Ref. 17

15

21CM616

SCREW

16

51DM6

NUT

17

6682492

TRIM bulk - sold per foot

18

JOYSTICK, BLADE See Illustration BLADE JOYSTICK/ NA2308
