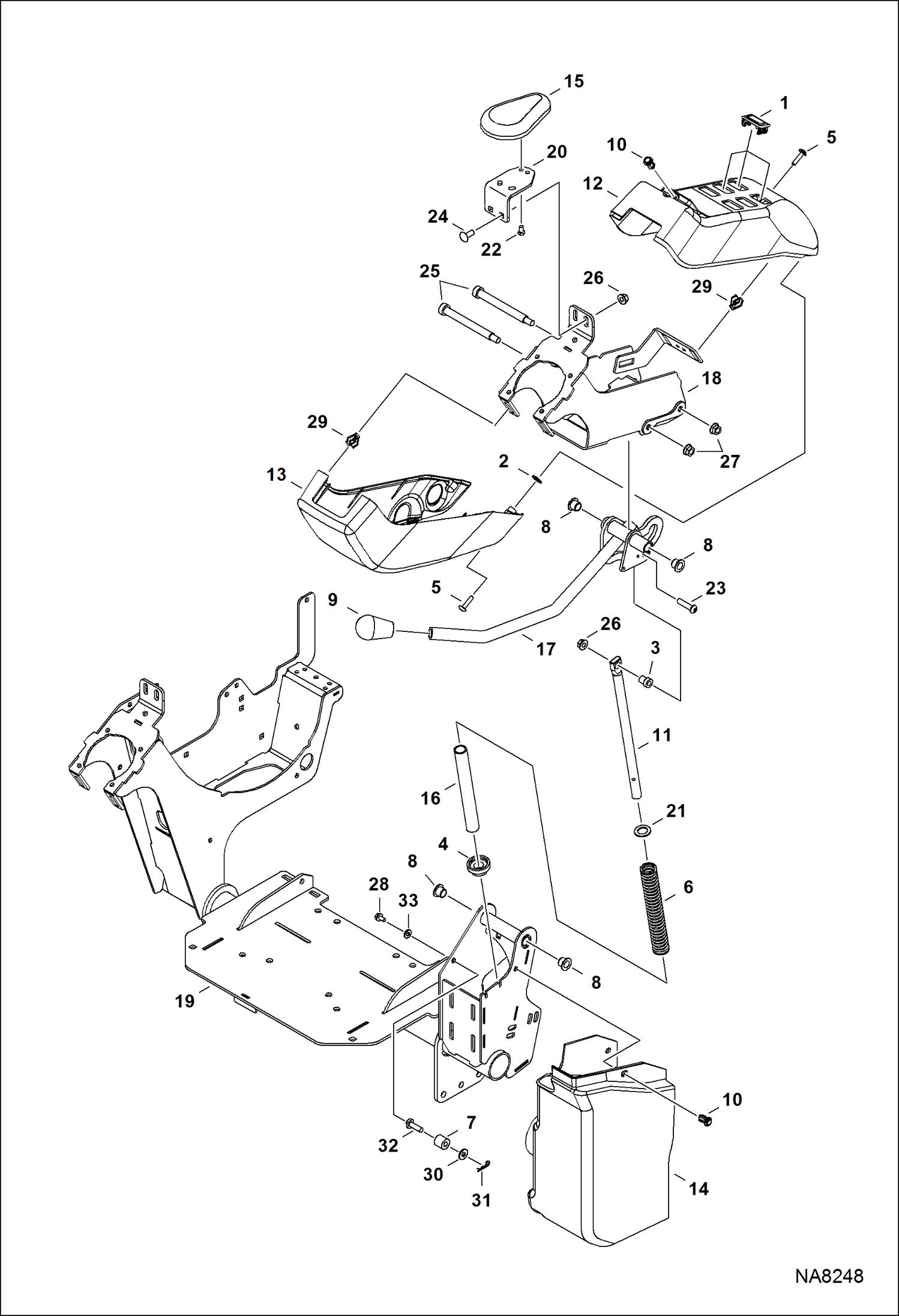

Запчасти Bobcat E32 CONTROL CONSOLE (LH) (S/N A94H17001 & Above, AC2N15001 & Above) CONTROLS

1

6665314

PLUG

2

6675212

RETAINER

3

6808749

BUSHING

4

6810456

BUSHING

5

6816193

SCREW

6

7003497

SPRING, COMPRESSION

7

7003498

BEARING, ROLLER

8

7003499

BUSHING

9

7154041

KNOB

10

7160383

RIVET, BIRD CAGE

11

7165097

SHAFT

12

7165562

COVER, LH

13

7165563

COVER, LH

14

7165564

COVER, LH

15

7169719

SUPPORT

16

7171264

SPACER, TUBE

17

7199664

HANDLE, OPERATING

18

7218095

CONSOLE, W/A

19

7218096

CONTROLLER, JOYSTICK ASSY

20

7227780

MOUNT, ARMREST

21

15EM160

WASHERS

22

1CM612

BOLT

23

27CM835

SCREW

24

28CM820

BOLT

25

38C868

SCREW

26

51DM8

NUT

27

53D6

NUT

28

59CM812

SCREW HX FLNG W/T8.8

29

7165333

CLIP
