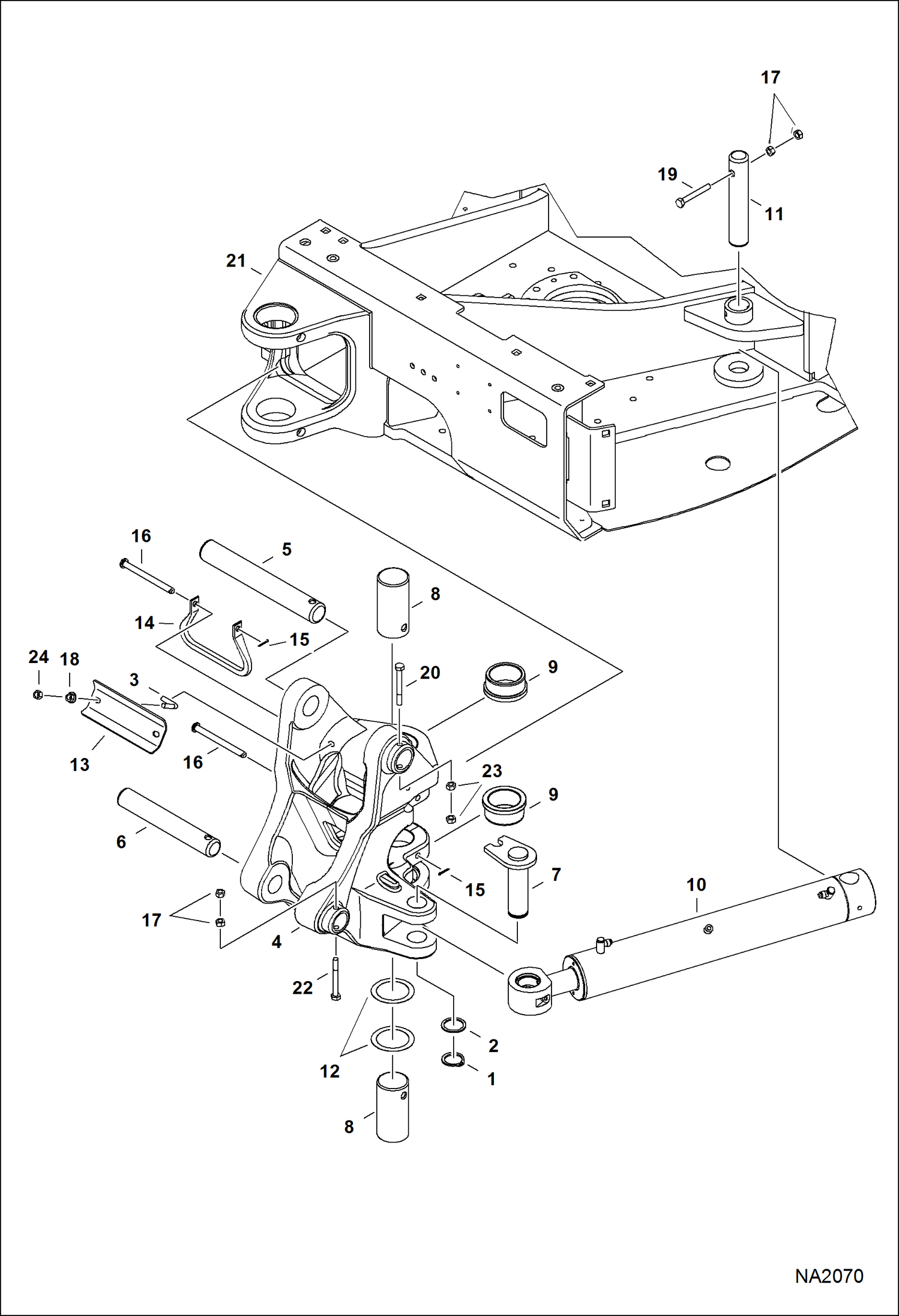

Запчасти Bobcat E32 BOOM SWING FRAME WORK EQUIPMENT

1

6665618

RING

2

6666549

WASHER

3

6808211

BOLT

4

7142816

FRAME, SWING See BTI402 - Use 10 mm dia cross bolt retaining hardware

4

7180326

FRAME, SWING Use 12 mm dia cross bolt retaining hardware

5

7143004

PIN, PIVOT SWING Use W/10 mm hardware

5

7180330

PIN, PIVOT Use W/12 mm hardware

6

7143006

PIN, PIVOT SWING

7

7143007

PIN, PIVOT SWING

8

PIN See Illustration UPPERSTRUCTURE/ NA2188 for replacement parts listed but not shown on this illustration - NLA - Order (2) each of Ref. 9 (7206222 bushing), 7206221bushing, & 7206220 pin - Was 7143

8

7206220

PIN, PIVOT

9

BUSHING See Illustration UPPERSTRUCTURE/ NA2188 for replacement parts listed but not shown on this illustration - NLA - Order (2) each of Ref. 8 (7206220 pin), 7206221 bushing, & 7206222 bushing - Was

9

7206222

BUSHING, PIVOT

10

CYLINDER, SWING See Illustration BOOM SWING CYLINDER/ PE3897

11

7153524

PIN, PIVOT SWING

12

7161182

SHIM

13

7164300

BRACKET

14

7173461

SUPPORT

15

13JM320

PIN

16

14JM12140

PIN, CLEVIS

17

4DM10

NUT

18

51DM10

NUT

19

7CM1080

BOLT

20

7CM1090

BOLT, HEX SOCKET 10 mm dia

20

7CM12100

BOLT 12 mm dia

21

UPPERSTRUCTURE See Illustration UPPERSTRUCTURE/ NA2188

22

7CM1080

BOLT Was 7CM1090 - B

23

4DM10

NUT 10 mm dia

23

4DM12

NUT HEX 12 mm dia

24

4DM10

NUT
