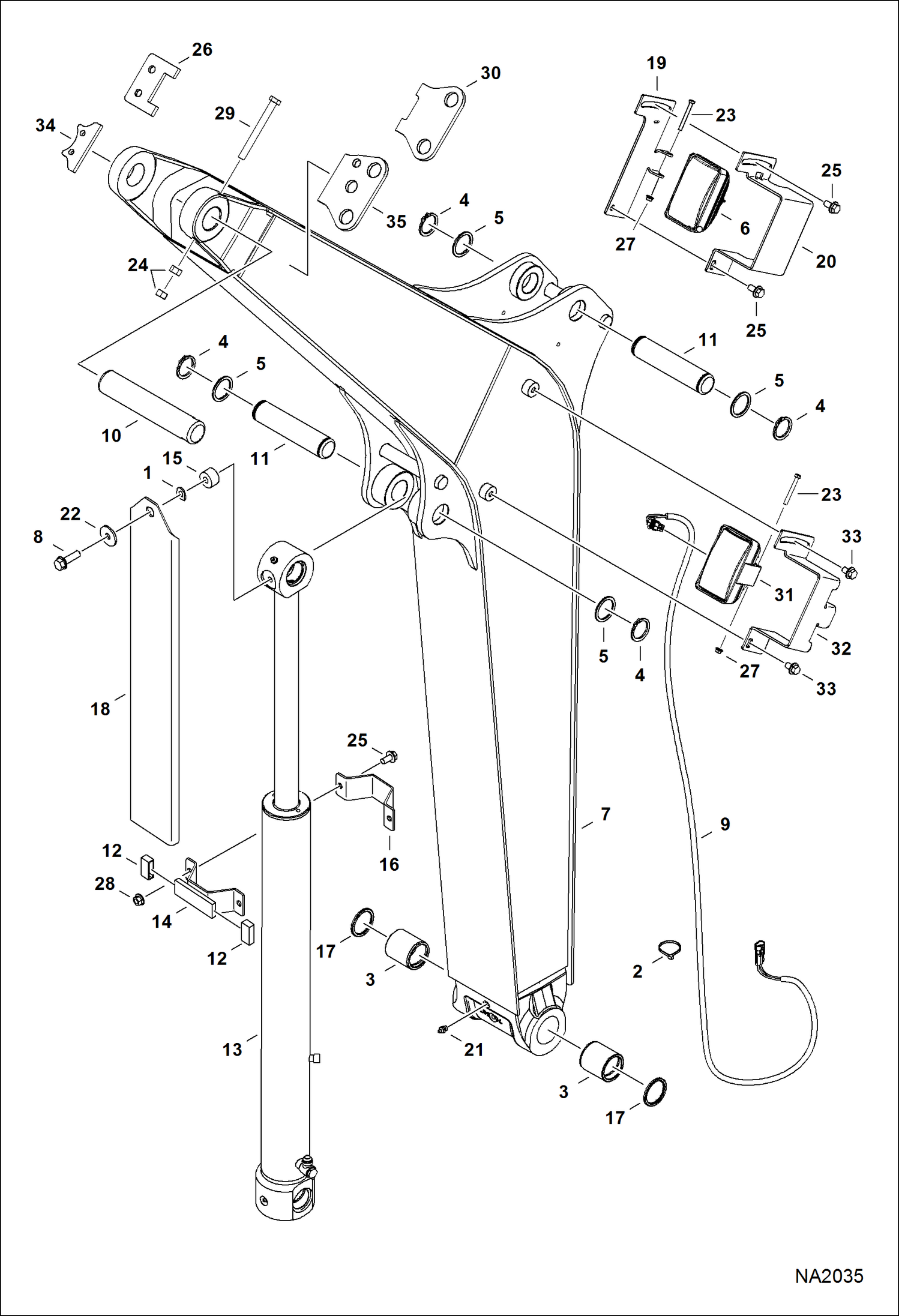

Запчасти Bobcat E32 BOOM WORK EQUIPMENT

1

6536803

WASHER

2

6610510

TIE

3

6628341

BUSHING, PRESS FIT Use W/pin W/10 mm dia cross bolt retaining hole

3

7172745

BUSHING, WEAR Use W/pin W/12 mm dia cross bolt retaining hole

4

6665618

RING

5

6666549

WASHER

6

6691410

LIGHT Use W/Ref. 19 & 20

6

6692400

BULB

7

BOOM, ARM DIPPER See BTI402 NLA - Use 10 mm dia cross bolt retaining hardware - Was 7122542 - A

7

7200148

BOOM, ARM DIPPER Use 12 mm dia cross bolt retaining hardware - Also Order Ref. 3 & 17 - Was 7180327 - A

8

59CM1240

BOLT Was 7131273 - B

9

7135895

HARNESS

10

7143002

PIN, PIVOT BOOM Use W/10 mm hardware

10

7180331

PIN, PIVOT Use W/12 mm hardware

11

7143037

PIN, PIVOT

12

7144089

COVER

13

CYLINDER, BOOM See Illustration BOOM CYLINDER/ NA2235

14

7192603

CLAMP, HALF 2 Was 7154458 - A

15

7154460

SPACER

16

7192601

CLAMP, HALF Was 7154773 - A

17

6669287

SEAL

18

7168330

SHIELD, CYL

19

BRACKET, LIGHT WORKING NLA - Order Ref. 31-33 - Was 7171613 - A

20

BRACKET, LIGHT WORKING NLA - Order Ref. 31-33 - Was 7171614 - A

21

10H25

FITTING, GREASE 5

22

17EM120

WASHER

23

1CM655

SCREW

24

4DM10

NUT 10 mm dia

24

4DM12

NUT HEX 12 mm dia

25

29CM1020

BOLT

26

7198271

BRACKET, MOUNTING weld-on - Was 7163079 - A

27

51DM6

NUT

28

51DM10

NUT

29

7CM10120

SCREW 10 mm dia

29

7CM12120

BOLT 12 mm dia

30

7198270

PLATE, MOUNT COUPLER weld-on - Was 7122584 - A

31

7018038

LIGHT Use W/Ref. 32

31

6692400

BULB

32

7195369

BRACKET, LIGHT WORKING

33

29CM1016

BOLT

34

7198271

BRACKET, MOUNTING weld-on

35

7198270

PLATE, MOUNT COUPLER weld-on
